10 min
Cleaning time, down from 2h
360°
Full tank coverage
70 yrs
Fog engineering know-how
0 tank entry
No need for workers to enter tanks
10 min
Cleaning time, down from 2h
360 °
Full tank
coverege
70 yrs
Fog engineering
know-how
CUSTOMER SUCCESS STORIES
Real tank cleaning results,
documented on video.
How this page
helps you.
01 / Explore real tank cleaning case studies
02 / Find the right nozzle type for your application
03 / Contact us with your requirements
NOZZLE TYPE OVERVIEW
Three families, each
engineered for a purpose.

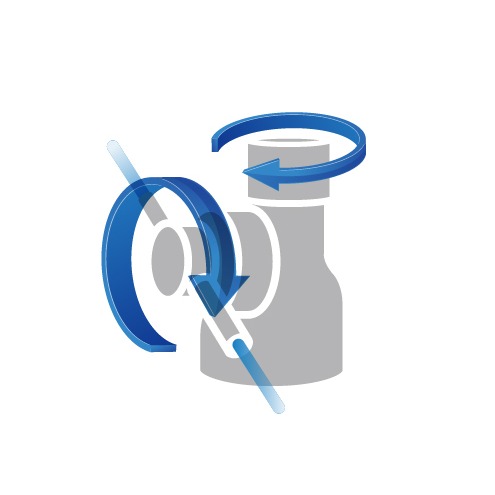

3D Rotating
360° rotation with strong cleaning power removes hard-to-remove dirt and persistent residues from large tanks.

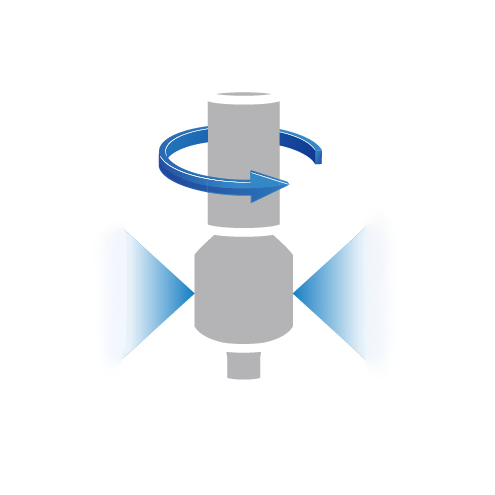

2D Rotating
Rinsing or quick cleaning of a large area with a simpler rotary drive. An efficient balance of coverage and simplicity.

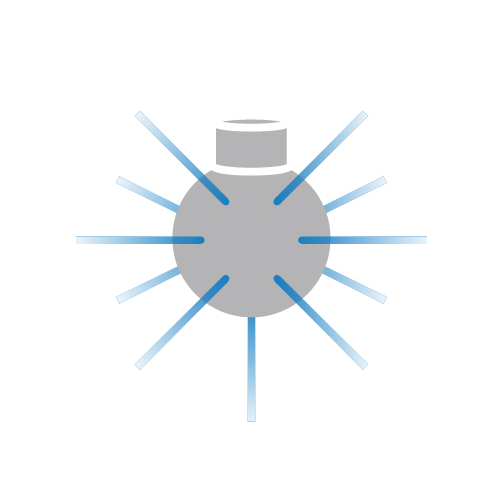

Fixed
No moving parts that can fail, reducing maintenance-related downtime. Ideal for sanitary and hygienic installations.
SPRAY PATTERN
Solid stream or flat fan spray
matched to the soil.
In general, solid stream sprays are used for cleaning persistent soil, while flat sprays are suitable for light soil cleaning and rinsing.
3D rotating nozzles utilize solid stream sprays for maximum cleaning impact, while 2D rotating nozzles are available with either a solid stream or flat spray pattern, depending on the product series.
Solid Stream Spray
 |
Sprays the cleaning liquid in a straight, single stream of high impact. |
| ─ Removing tough, sticky soil ─ Cleaning off hard-to-remove dirt |
Flat Fan Spray
 |
Sprays the cleaning liquid in a flat fan-shaped pattern across the tank wall. |
| ─ Washing large surfaces quickly ─ Cleaning off easy-to-remove dirt |
Solid Stream Spray
Sprays the cleaning liquid in a straight, single stream of high impact.
─ Removing tough, sticky soil
─ Cleaning off hard-to-remove dirt
Flat Fan Spray
Sprays the cleaning liquid in a flat fan-shaped pattern across the tank wall.
─ Washing large surfaces quickly
─ Cleaning off easy-to-remove dirt
NOZZLE LINEUP
Compare the core series
side by side.
| Series |
| Rotation Type |
| Soil Type (to be cleaned) |
| Spray Coverage Direction *1 |
| Operating Pressure |
| Spray Flow Rate |

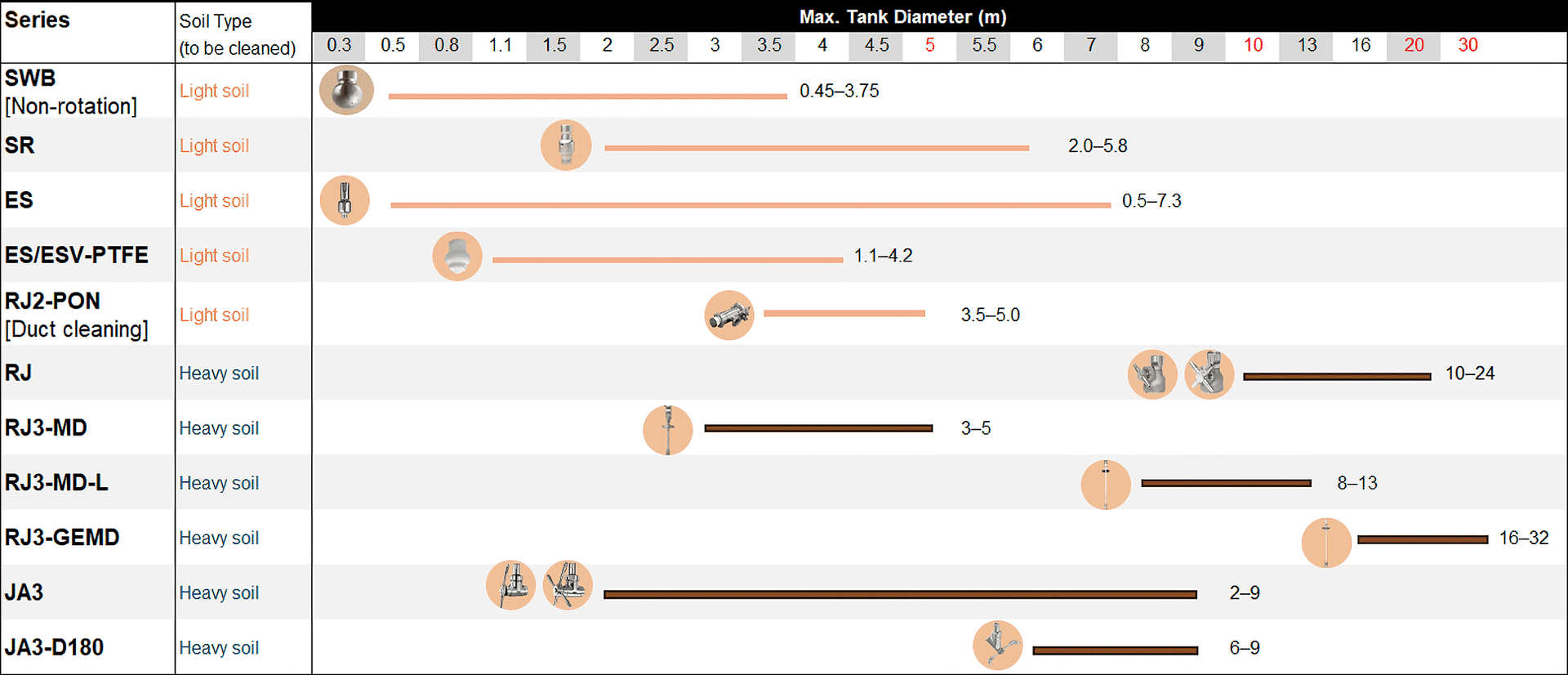

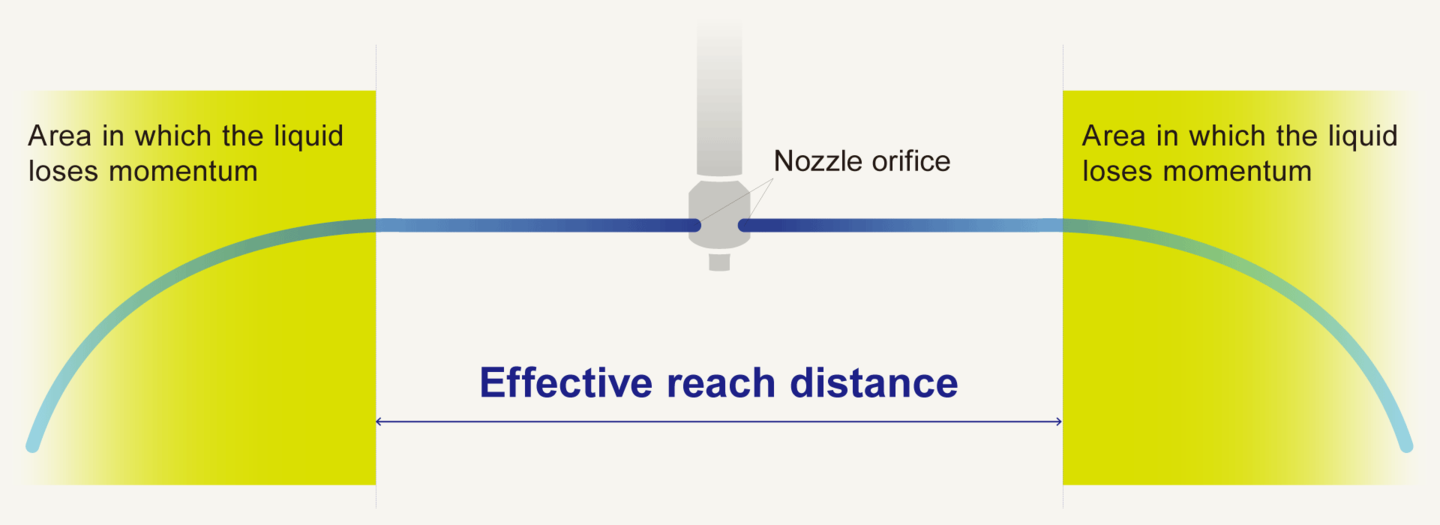

| Spray Reach Diameter *2 |
| Max. Temperature |
| Main Material |
| Best Suited for Cleaning |
| Non-rotating Spray Balls SWB |
| Fixed (Stationary) |
| Light |
| 270º (Custom: 160º up or down) |
| 0.1–0.5 MPa (15–70 psi) |
| 35.4–395 L/min |
| 0.45–3.75 m |
| 400°C (752°F) |
| Stainless steel 316L or PTFE |
| Tank / Vessel |
| Effective Cleaning at Low Speed SR |
| 2D (Flow-driven) |
| Light |
| 330º |
| 0.15–0.5 MPa (25–70 psi) |
| 9.19–194 L/min |
| 2.0–5.8 m |
| 150°C (302°F) |
| Stainless steel 316L |
| Tank / Vessel |

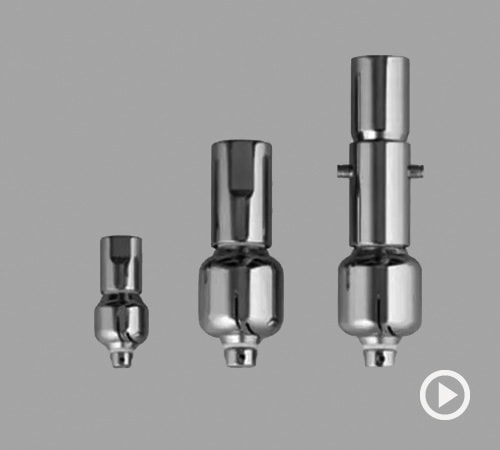

| 3 Spray Coverage Options ES |
| 2D (Flow-driven) |
| Light |
| 360º / 180º (up or down) |
| 0.1–1.0 MPa (15–145 psi) |
| 4.0–803 L/min |
| 0.5–7.3 m |
| 60°C (140°F) |
| Stainless steel 316L, PTFE |
| Tank / Vessel |
| Highly Resistant to Chemicals ES-PTFE |
| 2D (Flow-driven) |
| Light |
| 360º / 180º (up or down) |
| 0.05–0.5 MPa (8–70 psi) |
| 12.2–258 L/min |
| 1.5–4 m |
| 93°C (199°F) |
| PTFE |
| Tank / Vessel |
| Highly Resistant to Chemicals ESV-PTFE |
| 2D (Flow-driven) |
| Light |
| 360º |
| 0.05–0.5 MPa (8–70 psi) |
| 12.2–258 L/min |
| 1.1–4.2 m |
| 93°C (199°F) |
| PTFE |
| Tank / Vessel |
| Series |
| Rotation Type |
| Soil Type (to be cleaned) |
| Spray Coverage Direction *1 |
| Operating Pressure |
| Spray Flow Rate (L/min) |
| Spray Reach Diameter *2 |
| Max. Temperature |
| Main Material |
| Best Suited for Cleaning |

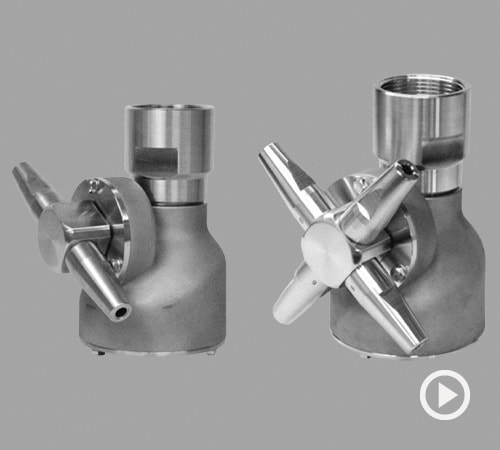

| Powerful and Precise Cleaning RJ (3-2L/4L) |
| 3D (Flow-driven) |
| Heavy |
| 360º |
| 0.2–1.0 MPa (30–145 psi) |
| 25.6–246 L/min |
| 14–24 m |
| 80°C (176°F) |
| Stainless steel 304, etc. |
| Tank / Vessel |
| Powerful and Precise Cleaning RJ (3-2H/4H) |
| 3D (Flow-driven) |
| Heavy |
| 360º |
| 1.0–2.0 MPa (145–290 psi) |
| 44.5–114 L/min |
| 10–11 m |
| 80°C (176°F) |
| Stainless steel 304, etc. |
| Tank / Vessel |

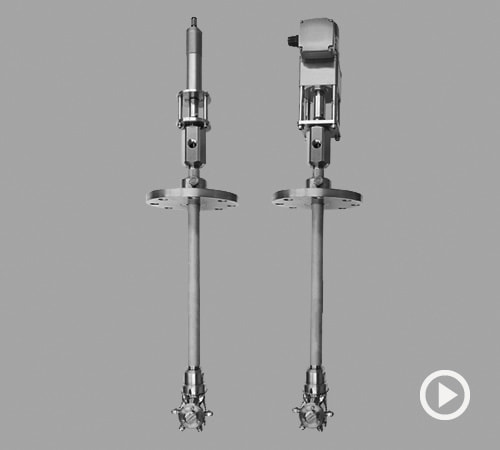

| Powerful, Stable Cleaning RJ3-MD |
| 3D (Motor-driven) |
| Heavy |
| 360º |
| 0.3–15 MPa (45–2,170 psi) |
| 4.2–104 L/min |
| 3–5 m |
| 90°C (194°F) |
| Stainless steel 304, etc. |
| Tank / Vessel |

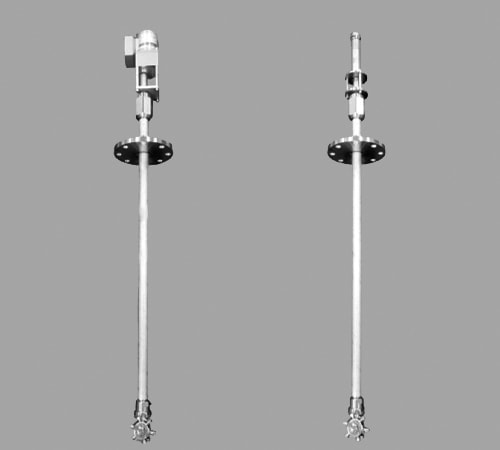

| High-Flow, Low-Pressure RJ3-MD-L |
| 3D (Motor-driven) |
| Heavy |
| 360º |
| 0.1–2.0 MPa (15–290 psi) |
| 7.9–139 L/min |
| 8–13 m |
| 90°C (194°F) |
| Stainless steel 304, etc. |
| Tank / Vessel |

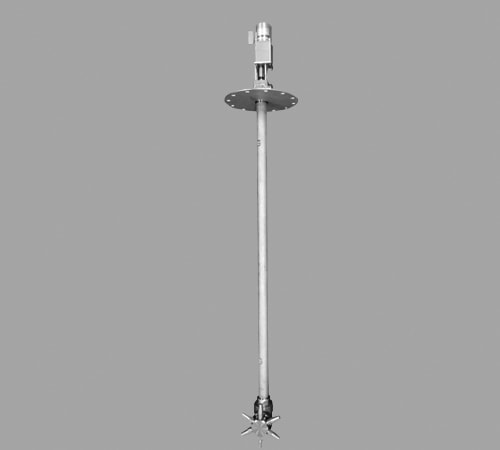

| Ultra-High-Flow, Low-Pressure RJ3-GEMD |
| 3D (Motor-driven) |
| Heavy |
| 360º |
| 0.1–2.0 MPa (15–290 psi) |
| 300–1,400 L/min |
| 16–32 m |
| 82°C (179°F) |
| Stainless steel 304, etc. |
| Large Tank |
| Series |
| Rotation Type |
| Soil Type (to be cleaned) |
| Spray Coverage Direction *1 |
| Operating Pressure |
| Spray Flow Rate |
| Spray Reach Diameter *2 |
| Max. Temperature |
| Main Material |
| Best Suited for Cleaning |

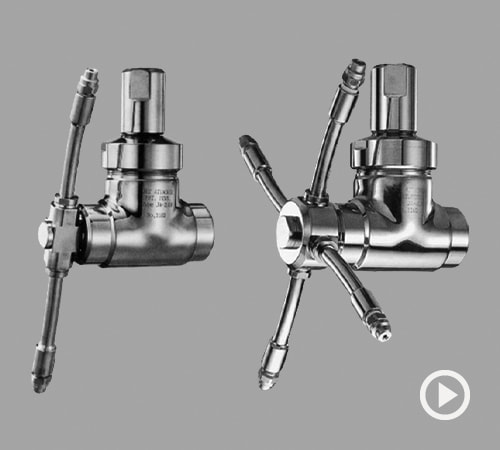

| Simple Structure, Light Weight JA3 |
| 3D (Flow-driven) |
| Heavy |
| 360º |
| 0.3–3.0 MPa (45–430 psi) |
| 11.8–84.8 L/min |
| 2–9 m |
| 60°C (140°F) |
| Stainless steel 304, etc. |
| Tank / Vessel |
| 180° Downward Spray JA3-D180 |
| 3D (Flow-driven) |
| Heavy |
| 180º down |
| 1.0–3.0 MPa (150–430 psi) |
| 11.8–69.3 L/min |
| 6–9 m |
| 60°C (140°F) |
| Stainless steel 304, etc. |
| Open-top Tank |
| Ideal for Conveyor Cleaning JA2 |
| 2D (Flow-driven) |
| Heavy |
| Downward |
| 0.3–2.0 MPa (45–290 psi) |
| 14–253 L/min |
| — |
| 60°C (140°F) |
| Stainless steel 304, etc. |
| Conveyor |

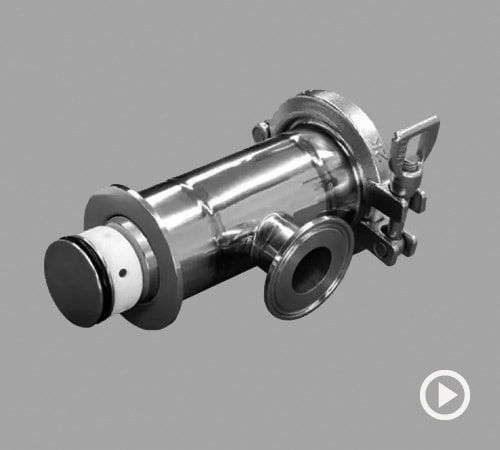

| Pressure-Activated Duct Nozzle RJ2-PON |
| 2D (Flow-driven) |
| Light |
| Spreading angle 50° |
| 0.2–0.5 MPa (30–70 psi) |
| 24.8–100 L/min |
| 3.5–5.0 m |
| 80°C (176°F) |
| Stainless steel 304, etc. |
| Duct |
| Series: | Non-rotating Spray Balls SWB |
| Rotation Type: | Fixed (Stationary) |
| Soil Type (to be cleaned): | Light |
| Spray Coverage Direction (*1): | 270º (Custom: 160º up or down) |
| Operating Pressure: | 0.1–0.5 MPa (15–70 psi) |
| Spray Flow Rate: | 35.4–395 L/min |
| Spray Reach Diameter (*2): | 0.45–3.75 m |
| Max. Temperature: | 400°C (752°F) |
| Main Material: | Stainless steel 316L or PTFE |
| Best Suited for Cleaning: | Tank / Vessel |
| Series: | Low-speed Rotation SR |
| Rotation Type: | 2D (Flow-driven) |
| Soil Type (to be cleaned): | Light |
| Spray Coverage Direction (*1): | 330º |
| Operating Pressure: | 0.15–0.5 MPa (25–70 psi) |
| Spray Flow Rate: | 9.19–194 L/min |
| Spray Reach Diameter (*2): | 2.0–5.8 m |
| Max. Temperature: | 150°C (302°F) |
| Main Material: | Stainless steel 316L |
| Best Suited for Cleaning: | Tank / Vessel |
| Series: | 3 Spray Coverage Options ES |
| Rotation Type: | 2D (Flow-driven) |
| Soil Type (to be cleaned): | Light |
| Spray Coverage Direction (*1): | 360º / 180º (up or down) |
| Operating Pressure: | 0.1–1.0 MPa (15–145 psi) |
| Spray Flow Rate: | 4.0–803 L/min |
| Spray Reach Diameter (*2): | 0.5–7.3 m |
| Max. Temperature: | 60°C (140°F) |
| Main Material: | Stainless steel 316L, PTFE |
| Best Suited for Cleaning: | Tank / Vessel |
| Series: | Chemical-Resistant ES-PTFE |
| Rotation Type: | 2D (Flow-driven) |
| Soil Type (to be cleaned): | Light |
| Spray Coverage Direction (*1): | 360º / 180º (up or down) |
| Operating Pressure: | 0.05–0.5 MPa (8–70 psi) |
| Spray Flow Rate: | 12.2–258 L/min |
| Spray Reach Diameter (*2): | 1.5–4 m |
| Max. Temperature: | 93°C (199°F) |
| Main Material: | PTFE |
| Best Suited for Cleaning: | Tank / Vessel |
| Series: | Chemical-Resistant ESV-PTFE |
| Rotation Type: | 2D (Flow-driven) |
| Soil Type (to be cleaned): | Light |
| Spray Coverage Direction (*1): | 360º |
| Operating Pressure: | 0.05–0.5 MPa (8–70 psi) |
| Spray Flow Rate: | 12.2–258 L/min |
| Spray Reach Diameter (*2): | 1.1–4.2 m |
| Max. Temperature: | 93°C (199°F) |
| Main Material: | PTFE |
| Best Suited for Cleaning: | Tank / Vessel |
| Series: | Powerful, Precise Cleaning RJ (3-2L/4L) |
| Rotation Type: | 3D (Flow-driven) |
| Soil Type (to be cleaned): | Heavy |
| Spray Coverage Direction (*1): | 360º |
| Operating Pressure: | 0.2–1.0 MPa (30–145 psi) |
| Spray Flow Rate: | 25.6–246 L/min |
| Spray Reach Diameter (*2): | 14–24 m |
| Max. Temperature: | 80°C (176°F) |
| Main Material: | Stainless steel 304, etc. |
| Best Suited for Cleaning: | Tank / Vessel |
| Series: | Powerful, Precise Cleaning RJ (3-2H/4H) |
| Rotation Type: | 3D (Motor-driven) |
| Soil Type (to be cleaned): | Heavy |
| Spray Coverage Direction (*1): | 360º |
| Operating Pressure: | 1.0–2.0 MPa (145–290 psi) |
| Spray Flow Rate: | 44.5–114 L/min |
| Spray Reach Diameter (*2): | 10–11 m |
| Max. Temperature: | 80°C (176°F) |
| Main Material: | Stainless steel 304, etc. |
| Best Suited for Cleaning: | Tank / Vessel |
| Series: | Powerful, Stable Cleaning RJ3-MD |
| Rotation Type: | 3D (Motor-driven) |
| Soil Type (to be cleaned): | Heavy |
| Spray Coverage Direction (*1): | 360º |
| Operating Pressure: | 0.3–15 MPa (45–2,170 psi) |
| Spray Flow Rate: | 4.2–104 L/min |
| Spray Reach Diameter (*2): | 3–5 m |
| Max. Temperature: | 90°C (194°F) |
| Main Material: | Stainless steel 304, etc. |
| Best Suited for Cleaning: | Tank / Vessel |
| Series: | High-Flow, Low-Pressure RJ3-MD-L |
| Rotation Type: | 3D (Motor-driven) |
| Soil Type (to be cleaned): | Heavy |
| Spray Coverage Direction (*1): | 360º |
| Operating Pressure: | 0.1–2.0 MPa (15–290 psi) |
| Spray Flow Rate: | 7.9–139 L/min |
| Spray Reach Diameter (*2): | 8-13 m |
| Max. Temperature: | 90°C (194°F) |
| Main Material: | Stainless steel 304, etc. |
| Best Suited for Cleaning: | Tank / Vessel |
| Series: | Ultra-High-Flow, Low-Pressure RJ3-GEMD |
| Rotation Type: | 3D (Motor-driven) |
| Soil Type (to be cleaned): | Heavy |
| Spray Coverage Direction (*1): | 360º |
| Operating Pressure: | 0.1–2.0 MPa (15–290 psi) |
| Spray Flow Rate: | 300–1,400 L/min |
| Spray Reach Diameter (*2): | 16–32 m |
| Max. Temperature: | 82°C (179°F) |
| Main Material: | Stainless steel 304, etc. |
| Best Suited for Cleaning: | Large tank |
| Series: | 2 or 4 Arms JA3 |
| Rotation Type: | 3D (Flow-driven) |
| Soil Type (to be cleaned): | Heavy |
| Spray Coverage Direction (*1): | 360º |
| Operating Pressure: | 0.3–3.0 MPa (45–430 psi) |
| Spray Flow Rate: | 11.8–84.8 L/min |
| Spray Reach Diameter (*2): | 2-9 m |
| Max. Temperature: | 60°C (140°F) |
| Main Material: | Stainless steel 304, etc. |
| Best Suited for Cleaning: | Tank / Vessel |
| Series: | 180° Downward Spray JA3-D180 |
| Rotation Type: | 3D (Flow-driven) |
| Soil Type (to be cleaned): | Heavy |
| Spray Coverage Direction (*1): | 180° down |
| Operating Pressure: | 1.0–3.0 MPa (150–430 psi) |
| Spray Flow Rate: | 11.8–69.3 L/min |
| Spray Reach Diameter (*2): | 6-9 m |
| Max. Temperature: | 60°C (140°F) |
| Main Material: | Stainless steel 304, etc. |
| Best Suited for Cleaning: | Open-top tank |
| Series: | For Conveyor Cleaning JA2 |
| Rotation Type: | 2D (Flow-driven) |
| Soil Type (to be cleaned): | Heavy |
| Spray Coverage Direction (*1): | Downward |
| Operating Pressure: | 0.3–2.0 MPa (45–290 psi) |
| Spray Flow Rate: | 14–253 L/min |
| Spray Reach Diameter (*2): | — |
| Max. Temperature: | 60°C (140°F) |
| Main Material: | Stainless steel 304, etc. |
| Best Suited for Cleaning: | Conveyor |
| Series: | Pressure-Activated Duct Nozzle RJ2-PON |
| Rotation Type: | 2D (Flow-driven) |
| Soil Type (to be cleaned): | Light |
| Spray Coverage Direction (*1): | Spreading angle 50° |
| Operating Pressure: | 0.2–0.5 MPa (30–70 psi) |
| Spray Flow Rate: | 24.8–100 L/min |
| Spray Reach Diameter (*2): | 3.5–5.0 m |
| Max. Temperature: | 80°C (176°F) |
| Main Material: | Stainless steel 304, etc. |
| Best Suited for Cleaning: | Duct |
Note: Flow-driven models require no external power.
*1) Surfaces directly above and below the nozzle may not be fully covered, depending on tank geometry and installation conditions.
*2) Approx. corresponding to the target tank diameter; varies by model and operating conditions.
NOZZLE SELECTION GUIDE
Not sure which nozzle is right
for your application?
Narrow it down in a few steps.
Answer a few questions to find the most suitable nozzle series for your application.
Start Nozzle Selection
QUICK REFERENCE
Nozzle series
by tank diameter.
This chart shows the recommended tank diameter range for each nozzle series based on effective spray reach.
The spray reach distance is approximately equivalent to the maximum tank diameter, representing the effective cleaning distance from a centrally installed nozzle to the tank wall.
Note: Within each series, the maximum spray reach distance varies by model and operating pressure.
For model-specific spray reach and specifications, please refer to our tank cleaning nozzle catalog or contact us. The above chart is for guidance only.
<>
REQUEST A FREE CONSULTATION
Tell us about your application.
We'll propose a nozzle.
Share your tank information and cleaning conditions with us, and our Fog Engineers will propose a nozzle recommendation.
After submitting the form, you can download our PDF, "10 Tank Cleaning Success Stories."
