Hydraulic Spray Nozzles
หัวฉีด Hydraulic จะฉีดของเหลวให้ออกมาเป็นละอองโดยใช้ปั๊มแรงดันสูง หัวฉีดเหล่านี้แบ่งออกเป็น 5 ประเภทตามรูปแบบการพ่น ได้แก่ Flat, Hollow Cone, Full Cone, Solid Stream, and Slit การใช้หัวฉีดเหล่านี้ให้เข้ากับจุดประสงค์นั้นๆ จะสามารถช่วยประหยัดน้ำ, พลังงาน, และแรงงานได้ รวมไปถึงการปรับปรุงคุณภาพอีกด้วย
-
- การสั่งทำ
- Precision Guarantee
- Solid Stream Spray Nozzles (Two Orifices)
2CCP
Operating pressure:0.3-3 MPa
Spray capacity:1.68–3.42 L/min (1 MPa)
Spreading angle:10–25°
Material:S303
-
- การสั่งทำ
- Ceramic Orifice
- Paper Trimming Nozzles (Two Orifices)
2CM-FB
Operating pressure:0.5-3 MPa
Spray capacity:0.24–0.67 L/min (1 MPa)
Material:S303
-
- การสั่งทำ
- Ceramic Orifice
- Precision Guarantee
- Solid Stream Spray Nozzles (Two Orifices)
2CP
Operating pressure:0.3-3 MPa
Spray capacity:0.86–3.42 L/min (1 MPa)
Spreading angle:10–25°
Material:S303
-
- การสั่งทำ
- Precision Guarantee
- Solid Stream Spray Nozzles (Seven Orifices)
7CCP
Operating pressure:0.3-3 MPa
Spray capacity:5.88–11.9 L/min (1 MPa)
Spreading angle:15°
Material:S303
-
- การสั่งทำ
- Ceramic Orifice
- Precision Guarantee
- Solid Stream Spray Nozzles (Seven Orifices)
7CP
Operating pressure:0.3-3 MPa
Spray capacity:3.01–11.9 L/min (1 MPa)
Spreading angle:15°
Material:S303
-
- การสั่งทำ
- Precision Guarantee

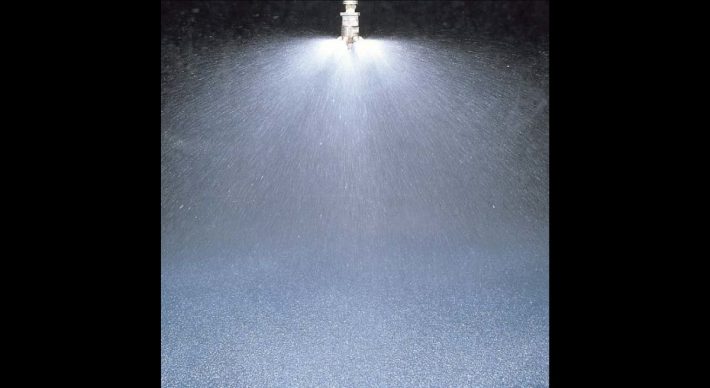

- Seven-head Full Cone Spray Nozzles
7JJXP
Spray capacity:7.00–315 L/min (0.2 MPa)
Spray angle:175–215°
Material:S303
Free passage diameter:0.8–4.7 mm
-
- Precision Guarantee
- Seven-head Full Cone Spray Nozzles

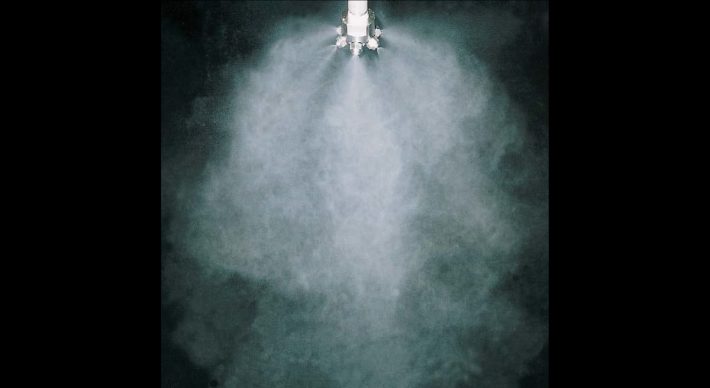

7KB
Spray capacity:0.23–10.9 L/min (0.7 MPa)
Spray angle:180°
Material:S303
Free passage diameter:0.15–0.60 mm
-
- การสั่งทำ
- 7-outlet Connecting Adaptor

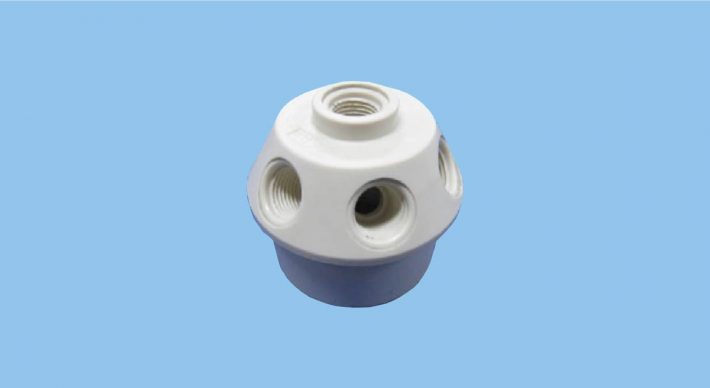

7-outlet Adaptor
Max. operating pressure:1.0 MPa
Heat resistance:80℃
Outlet thread size:Rc1/8
Material:FRPP
-
- Precision Guarantee
- Hollow Cone Spray Nozzles
AAP
Operating pressure:1.00–23.0 L/min (0.2 MPa)
Spray capacity:75–80°
Material:S304
Free passage diameter:2.0–8.0 mm
-
- Precision Guarantee
- Full Cone Spray Nozzles (Clog-resistant)
AJP
Spray capacity:2.00–250 L/min (0.2 MPa)
Spray angle:75–90°
Material:S303, S304, SCS13
Free passage diameter:1.6–22.3 mm
-
- การสั่งทำ
- Precision Guarantee
- Full Cone Spray Nozzles (Alumina Ceramic)

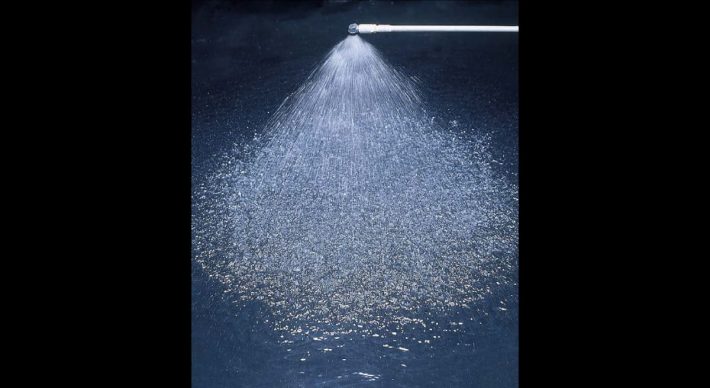

AJP-AL92
Spray capacity:18.0–250 L/min (0.2 MPa)
Spray angle:85–90°
Material:92％ Alumina
Free passage diameter:5.1–21.3 mm
-
- Precision Guarantee
- Full Cone Spray Nozzles (Clog-resistant)

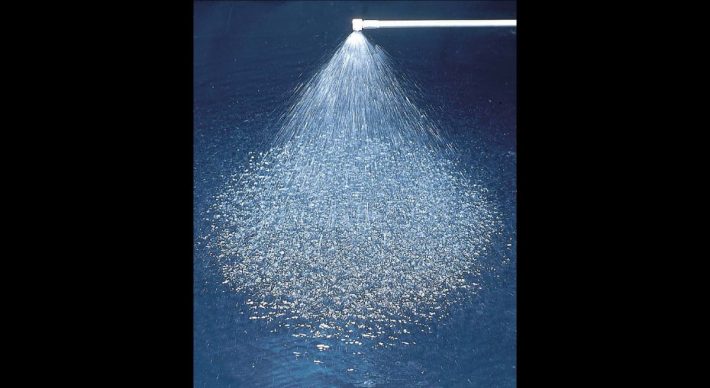

AJP-PPS
Spray capacity:4.00–16.0 L/min (0.2 MPa)
Spray angle:75–85°
Material:PPS
Free passage diameter:2.2–4.8 mm
-
- การสั่งทำ
- Precision Guarantee
- Hollow Cone Spray Nozzles (Alumina Ceramic)
AP-AL92
Spray capacity:14.0–600 L/min (0.2 MPa)
Spray angle:80–85°
Material:92％ Alumina
Free passage diameter:6.8–39.6 mm
-
- การสั่งทำ
- Detergent Foam Spray Nozzles (Solid Stream)
AWCC
Operating pressure:0.1-0.6 MPa
Spray capacity:1.00-5.00 L/min (0.3 MPa)
Material:S303
-
- การสั่งทำ
- Detergent Foam Spray Nozzles (Flat Spray Pattern)
AWVV
Operating pressure:0.1-0.6 MPa
Spray capacity:1.00-5.00 L/min (0.3 MPa)
Spray angle:80°, 100°
Material:S303
-
- สินค้าสั่งทำ
- Precision Guarantee
- Wide-angle Full Cone Spray Nozzles
BBXP
Spray capacity:1.50–1200 L/min
Spray angle:120°
Material:S303, S316
Free passage diameter:0.7–21.7 mm
-
- Precision Guarantee
- Wide-angle Full Cone Spray Nozzles

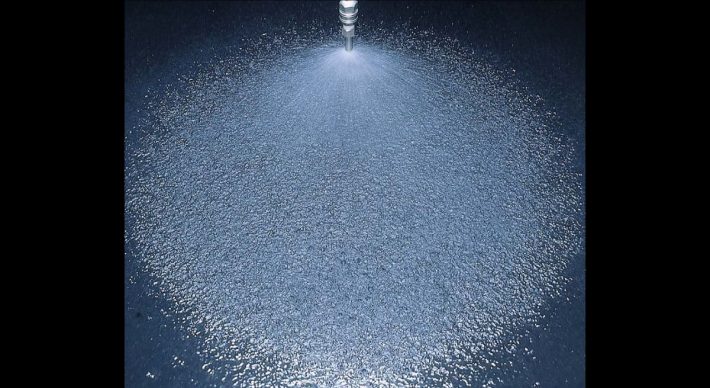

BBXP-PVC
Spray capacity:3.00 L/min (0.2 MPa)
Spray angle:120°
Material:PVC
Free passage diameter:1.5 mm
-
- Precision Guarantee
- Wide-angle Full Cone Spray Nozzles
BBXP-PVDF
Spray capacity:0.80–2.00 ℓ/min (0.2 MPa)
Spray angle:120°
Material:PVDF
Free passage diameter:0.5–1.2 mm
-
- การสั่งทำ
- Self-cleaning
- Spray Headers with Nozzle Cleaning Function
BRASIKan
Standard pressure:0.3 MPa
Free passage diameter:1.3–2.9 mm
Material:S303, S316L, TN
-
- Precision Guarantee
- Solid Stream Spray Nozzles
CCP
Operating pressure:0.1-3.5 MPa
Spray capacity:13.6–104 L/min (3 MPa)
Free passage diameter:2.0–5.4 mm
Material:S303
-
- Precision Guarantee
- Solid Stream Spray Nozzles (Convex Round Inlet)
CCRP
Operating pressure:0.3-3 MPa
Spray capacity:0.37–5.84 L/min (1 MPa)
Material:S303
-
- สินค้าสั่งทำ
- Ceramic Orifice
- Paper Trimming Nozzles
CM
Operating pressure:0.5-5 MPa
Spray capacity:0.016–3.03 L/min (1 MPa)
Material:S303
-
- Ceramic Orifice
- Paper Trimming Nozzles
CM-FB
Operating pressure:0.5-5 MPa
Spray capacity:0.12–0.49 L/min (1 MPa)
Material:S303
-
- Ceramic Orifice
- Paper Trimming Nozzles
CMP-T
Operating pressure:0.5-5 MPa
Spray capacity:0.14–1.34 L/min (1 MPa)
Material:S303
-
- Ceramic Orifice
- Precision Guarantee
- Solid Stream Spray Nozzles
CP
Operating pressure:0.1-15 MPa
Spray capacity:2.47–104 L/min (3 MPa)
Free passage diameter:0.8–5.4 mm
Material:S303
-
- การสั่งทำ
- Ceramic Orifice
- Solid Stream Spray Nozzles (Small Orifice Diameters)
CP (Small Orifice Diameters)
Operating pressure:1-15 MPa
Spray capacity:0.020–1.27 L/min (1 MPa)
Material:S303
-
- Ceramic Orifice
- Solid Stream Spray Nozzles (Convex Round Inlet)
CRP
Operating pressure:0.3-3 MPa
Spray capacity:0.37–5.84 L/min (1 MPa)
Material:S303
-
- สินค้าสั่งทำ
- Paper Trimming Nozzles
CTM
Operating pressure:0.5-5 MPa
Spray capacity:0.06–3.03 L/min (1 MPa)
Material:S303
-
- Precision Guarantee
- Flat Spray Nozzles (Coin-shaped)
CVVP
Operating pressure:0.05-2 MPa
Spray capacity:1.00–8.00 L/min (0.3 MPa)
Spray angle:65°, 80°, 90°
Material:S303
-
- การสั่งทำ
- Precision Guarantee
- Ultra-Thick Even Flat Spray Nozzles
DDRP
Operating pressure:0.05-2 MPa
Spray capacity:5.00-100 L/min (0.3 MPa)
Spray angle:90°, 115°
Material:S303
-
- สินค้าสั่งทำ
- Ceramic Orifice
- Precision Guarantee
- Descaling Nozzles
DSP
Operating pressure:3-20 MPa
Spray capacity:5.59–86.5 L/min (5 MPa)
Spray angle:12°, 15°
Material:S303
-
- การสั่งทำ
- Precision Guarantee
- Even Flat Spray Nozzles
EJVV
Operating pressure:0.25-2 MPa
Spray capacity:2.00-12.0 L/min (0.3 MPa)
Spray angle:80°, 90°
Material:S303, B
-
- สินค้าสั่งทำ

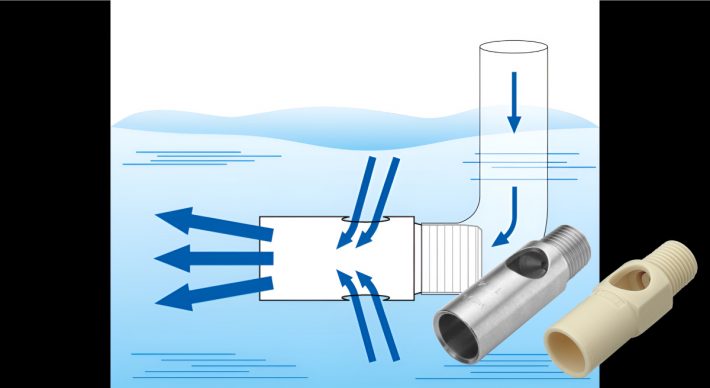

- Ejector Nozzles
EJX
Operating pressure:0.03-0.3 MPa
Supply water range:1.10–160 ℓ/min (0.1 MPa)
Discharge range:3.1–460 ℓ/min (0.1 MPa)
Material:S303, S304, PP, PVC
-
- การสั่งทำ
- Ejector Nozzles (High-velocity Type)
EJX-H
Operating pressure:0.03-0.3 MPa
Supply water range:5.80–64.0 L/min (0.1 MPa)
Discharge range:18.8–206 L/min (0.1 MPa)
Material:PP
-
- Return-flow Nozzle
- Spillback Nozzles
GSPB
Spray capacity:1.0–4.0 MPa
Spray angle:90°, 130°
Material:Tungsten carbide
Free passage diameter:5.7 mm
-
- Quick-detachable
- Spray Nozzle Connector (Quick-detachable)

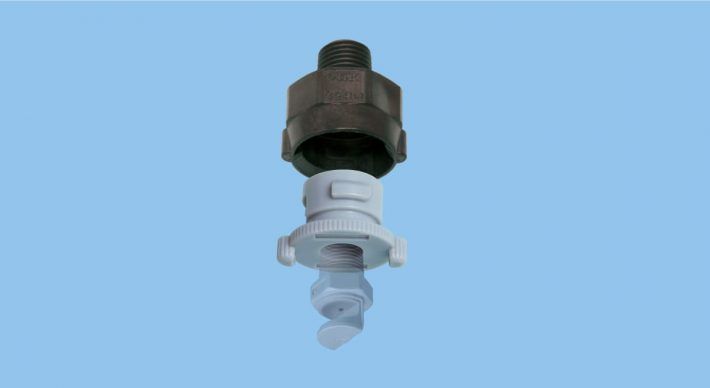

INCO
Outlet thread size:Rc1/4, Rc3/8, Rc1/2
Material:PP, PPS
-
- Precision Guarantee
- Quick-detachable
- Full Cone Spray Nozzles (Quick-detachable)

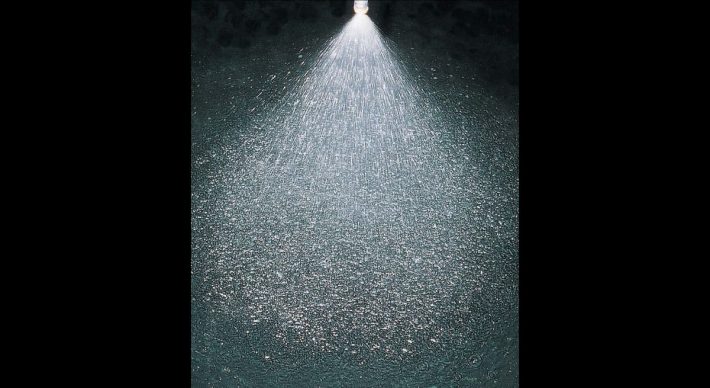

INJJX
Spray capacity:1.00–6.00 L/min (0.2 MPa)
Spray angle:65°–75°
Material:PP
Free passage diameter:0.8–2.0 mm
-
- Precision Guarantee
- Quick-detachable
- Full Cone Spray Nozzles (Quick-detachable)
INJJX-SS
Spray capacity:1.00–6.00 L/min (0.2 MPa)
Spray angle:65°–75°
Material:S303
Free passage diameter:0.7–1.7 mm
-
- Precision Guarantee
- Quick-detachable
- Full Cone Spray Nozzles (Quick-detachable)
INJJX-Y
Spray capacity:1.00–5.00 L/min (0.2 MPa)
Spray angle:65°
Material:PP
Free passage diameter:0.8–2.0 mm
-
- Precision Guarantee
- Quick-detachable
- Off-center Even Flat Spray Nozzles (Quick-detachable)
INOVVE
Operating pressure:0.15-0.7 MPa
Spray capacity:3.00-5.00 L/min (0.3 MPa)
Spray angle:45°
Material:PP, PPS
-
- Precision Guarantee
- Quick-detachable
- Quick-installation Nozzles
INQB
Operating pressure:0.1-0.4 MPa
Spray capacity:8.00–39.0 L/min(0.3 MPa)
Spray angle:40°, 65°, 80°
Material:FRPP
-
- Ceramic Orifice
- Precision Guarantee
- Quick-detachable
- Flat Spray Nozzles (Quick-detachable)
INV
Operating pressure:0.05-2 MPa
Spray capacity:2.0–8.0 L/min (0.3 MPa)
Spray angle:50°, 65°, 80°, 90°, 115°
Material:S303
-
- Ceramic Orifice
- Precision Guarantee
- Quick-detachable
- Even Flat Spray Nozzles (Quick-detachable)
INVE
Operating pressure:0.05-2 MPa
Spray capacity:1.9–15.7 L/min (0.3 MPa)
Spray angle:15°, 25°, 40°, 50°, 65°, 80°, 90°, 115°
Material:S303
-
- Precision Guarantee
- Quick-detachable
- Flat Spray Nozzles (Quick-detachable)
INVV (Plastic)
Operating pressure:0.05-0.7 MPa
Spray capacity:0.50–5.00 L/min (0.3 MPa)
Spray angle:50°, 65°, 90°, 115°
Material:PP
-
- Precision Guarantee
- Quick-detachable
- Flat Spray Nozzles (Quick-detachable)
INVV-SS (Stainless Steel)
Operating pressure:0.05-2 MPa
Spray capacity:1.50–20.0 L/min (0.3 MPa)
Spray angle:15°, 25°, 40°, 50°, 65°, 80°, 90°, 115°
Material:S303
-
- สินค้าที่เลิกผลิตแล้ว
- Precision Guarantee
- Quick-detachable
- Quick-installation Nozzles
ISQB
Operating pressure:0.1-0.4 MPa
Operating pressure:8.00–39.0 L/min(0.3 MPa)
Spray capacity:40°, 65°, 80°
Spray angle:FRPP
-
- Ceramic Orifice
- Precision Guarantee
- Full Cone Spray Nozzles

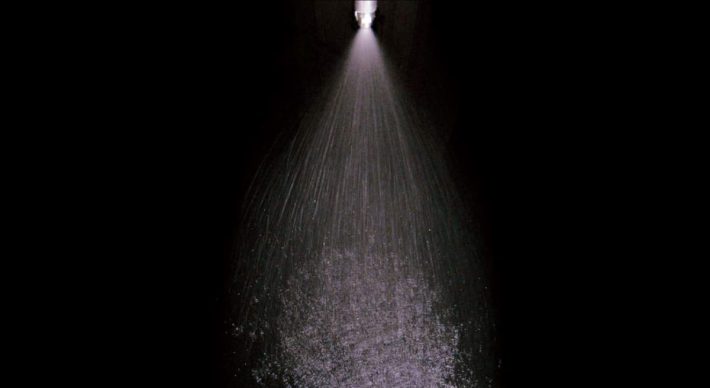

J
Spray capacity:0.09–1.40 L/min
Spray angle:70°
Material:S303
Free passage diameter:0.15–0.9 mm
-

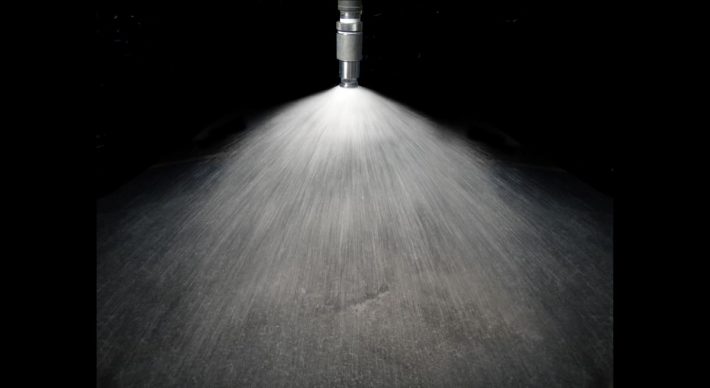

- Full Cone Spray Nozzles
JJHP
Spray capacity:340–840 L/min (0.05 MPa)
Spray angle:75–105°
Material:S316L
Free passage diameter:10–15.5 mm
-
- Precision Guarantee

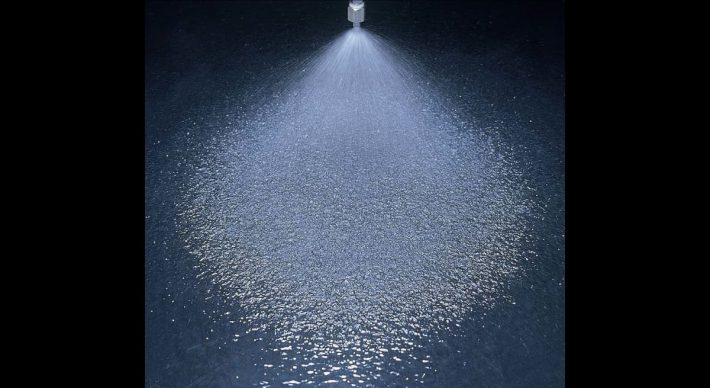

- Low Flow Rate Full Cone Spray Nozzles
JJRP-PTFE
Spray capacity:0.50–6.00 ℓ/min (0.2 MPa)
Spray angle:60–90°
Material:PTFE
Free passage diameter:0.4–1.6 mm
-
- Precision Guarantee
- Low Flow Rate Full Cone Spray Nozzles
JJRP-PVDF
Spray capacity:0.50–0.70 L/min (0.2 MPa)
Spray angle:60–65°
Material:PVDF
Free passage diameter:0.4–0.6 mm
