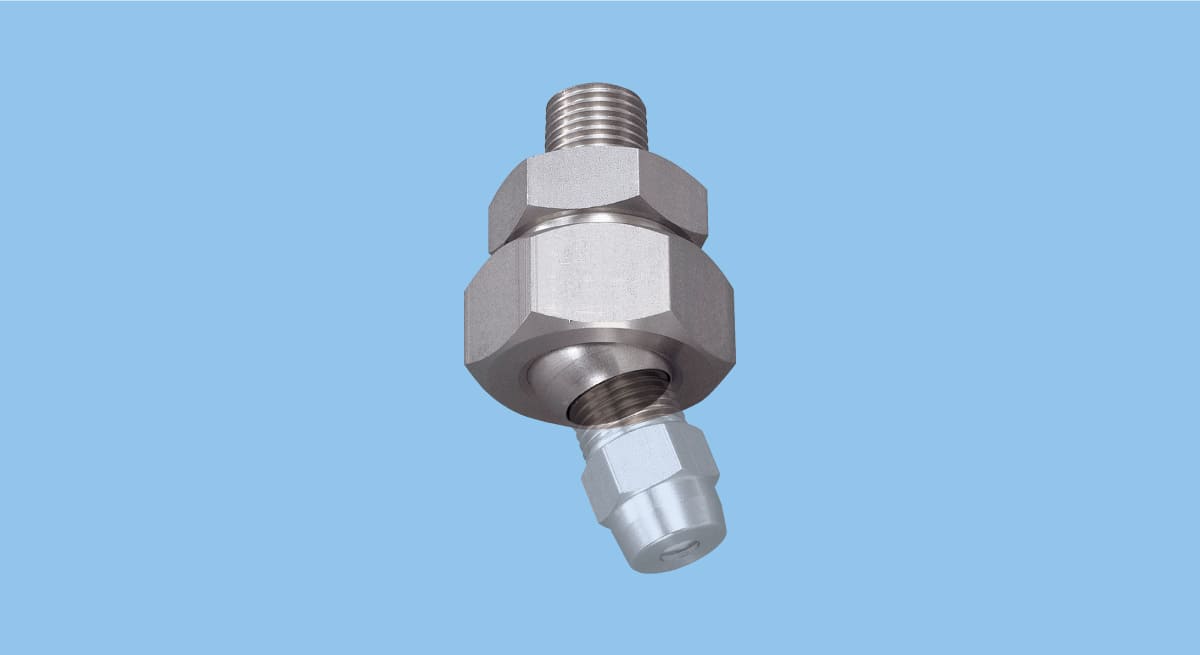

Ball Joints for Connecting Spray Nozzles
UT(Metal)
ข้อต่อทรงกลมสำหรับต่อเข้ากับหัวฉีดสเปรย์ สามารถปรับทิศทางในการพ่นได้ 50 องศา
Specs
| Liquid Inlet Thread Size | R1/8–R1/2, Rc1/8–Rc3/4 |
|---|---|
| Main Material | S303, B |
| Max. Operating Pressure | 15 MPa *1 |
| Max. Temperature | 120℃ *2 |
*1) Use UT-S303 (stainless steel 303) at pressure under 15 MPa, UT-B (brass) under 4 MPa.
*2) The heat resistance temperature is the value for material S303.
* Do not use under conditions where water hammer or sudden change of water pressure occurs.
* For use with KB and KKBP series nozzles, a different type of UT Ball Joints are required. Inquire with us for details.
Resources for Download
• Allows adjustment of spray direction over a range of 50 degrees as desired.
• Withstands pressure design. Available from 1/8" to 3/4" in pipe connection sizes.
Applications
- Accurate nozzle alignment is possible after connected to a pipe.
- Where large changes in spray direction are required depending on nozzle application such as cleaning and air blowing.
Structure
- Stainless steel 303 (S303) or Brass (B)
- UT-B (brass) type is available in limited sizes.
- Optional material: Stainless steel 316 or others
