Solid Stream Spray Nozzles CP
Hydraulic solid stream nozzles, featuring a wear-resistant cera…
- การสั่งทำ
- Precision Guarantee
- การทำความสะอาด
Solid Stream Spray Nozzles (Seven Orifices)
7CCP
หัวฉีดแบบ solid ที่มี 7 รูในการสเปรย์อยู่ในหัวฉีดเดียว
Specs
| Liquid Inlet Thread Size | R1/4 |
|---|---|
| Main Material | S303 |
| Standard Pressure | 1 MPa |
| Spray Capacity (Flow-rate) | 5.88–11.9 L/min |
*1) The spreading angle is the angle between the solid streams. For a seven-orifice nozzle it is the angle between the two streams directly opposite to each other and the furthest apart.
Resources for Download
• Multiple solid streams with high impact force.
• 2-orifice type.
• Compact design.
Applications
- Cleaning: Wire and felt parts of paper making machines, dandy rolls, machine parts, bottles, vehicles, returnable containers
Industries where this nozzle is used
- Paper & Pulp
- Printing
- Food
- Automotives

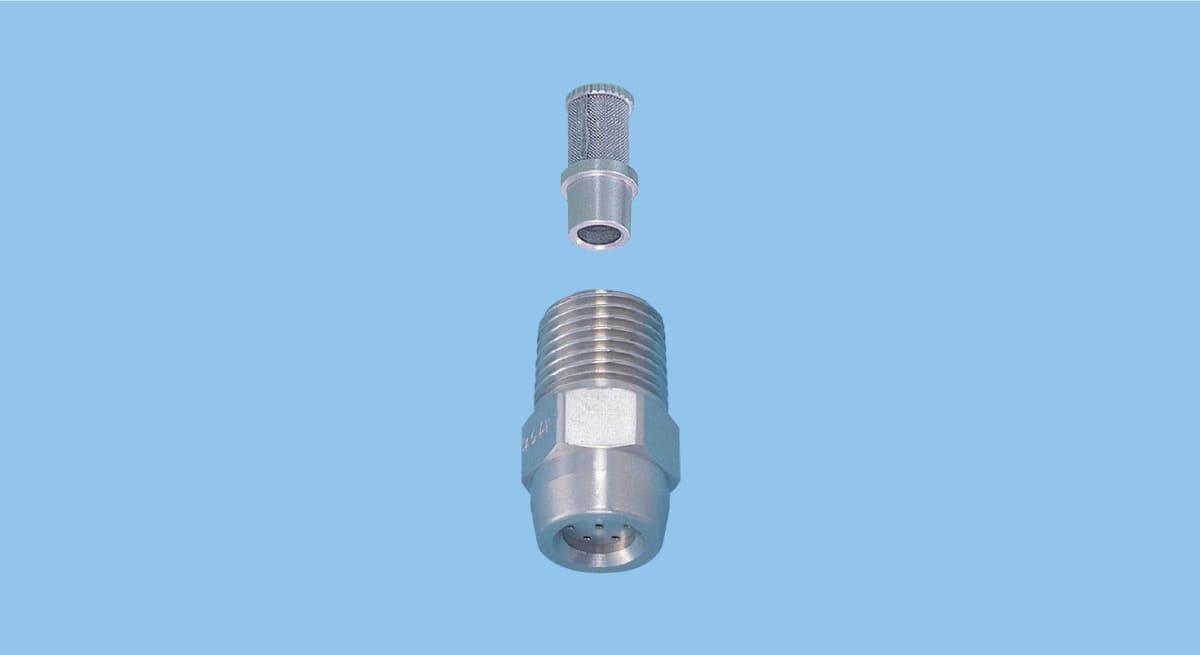

Structure
- Metal one-piece structure. Some models are available with strainer.
