Full Cone Spray Nozzles (Clog-resistant)
AJP
หัวฉีด Full cone มีมุมในการพ่นอยู่ที่ 90˚ มีเส้นผ่านศูนย์กลางที่กว้าง
Specs
| Liquid Inlet Thread Size | R1/8–R1*1/2 |
|---|---|
| Main Material | S303, S304, SCS13 |
| Fog Classification | Light Rain, Rain-Storms |
| Mean Droplet Diameter | 640–1,400 μm |
| Standard Pressure | 0.2 MPa |
| Spray Capacity (Flow-rate) | 2.00–250 L/min |
| Spray Angle | 75–90° |
*) In extremely high or freezing temperatures, the orifice cap of the press-fit type (AJP size R1/8, R3/8, or R1/2) nozzle may fall off. For use in such conditions, order the optional material S316 whose orifice cap is screwed in.
*) Do not use AJP size R1/8 in such environments. Screw-in orifice cap type is not available with the size R1/8.
Resources for Download

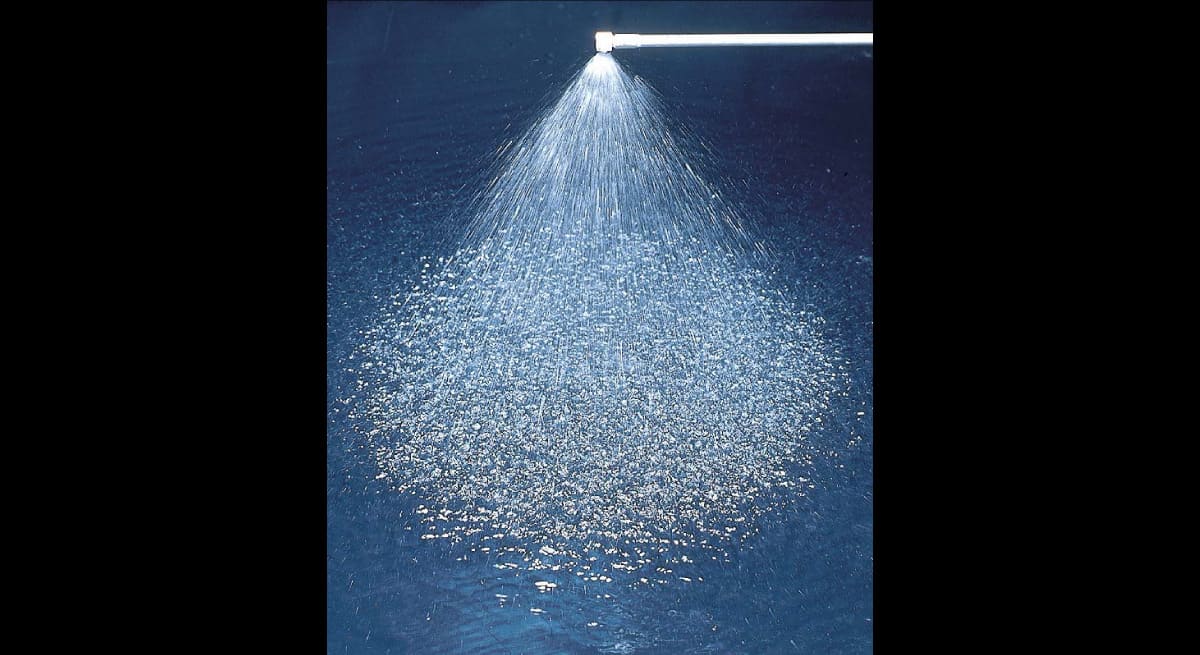

• Full cone spray pattern with a round impact area and uniform distribution.
• Unique design to produce fine atomization by liquid impinging inside chamber without a whirler.
• No-whirler design with large free passage diameter minimizes clogging.
• Spraying axis 90ﾟ from the axis of the nozzle inlet.
• High chemical and wear resistant AJP-PPS series is available for spraying hydrochloric acid and other chemicals.
Applications
- Cleaning: Pre-painting treatment, washing booths, machine parts, gas, incinerator fumes
- Cooling: Steel plates, copper pieces, gas
- Spraying: Aeration, foam breaking
- Others: Applications where re-circulated water is being used or clogging is a concern
Industries where this nozzle is used
- Steelmaking
- Pollution control

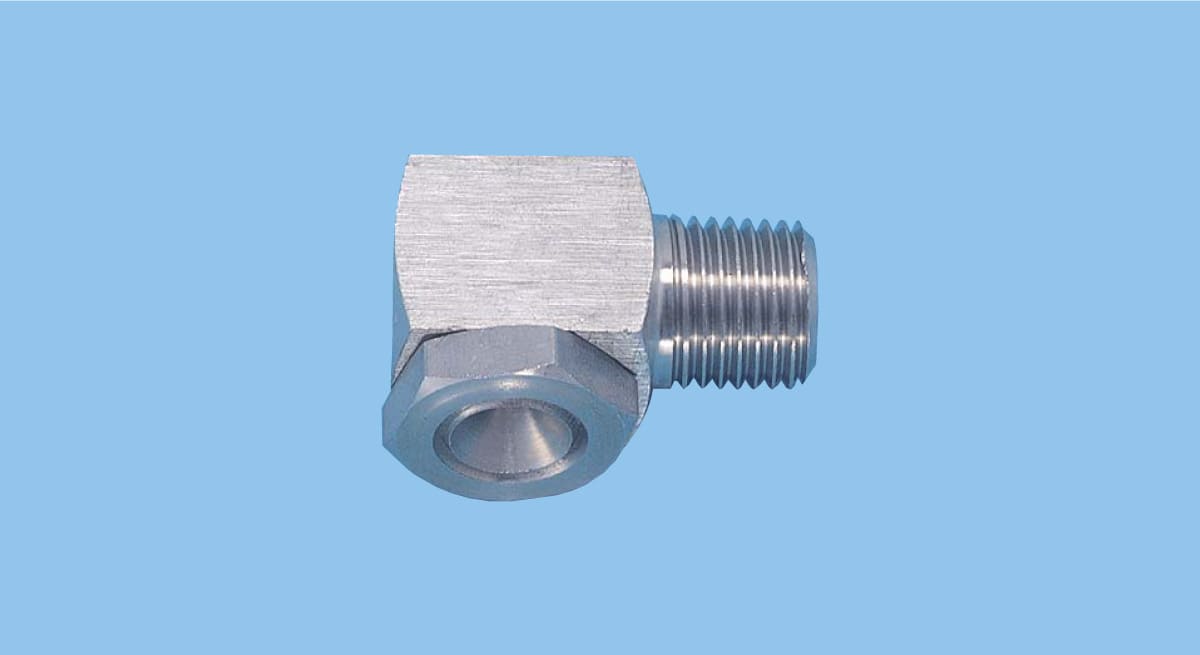

Structure
- Includes a nozzle body and orifice cap.
- Orifice cap for sizes R1/8, R3/8, and R1/2 is pressed into the nozzle body. Orifice cap for the other sizes are screwed in.
- No obstructions in the nozzle interior.
