Paper Trimming Nozzles CM
หัวฉีดแบบ solid สำหรับตัดกระดาษ ที่มีหัวฉีดเซรมิกซึ่งทนทานต่อกา…
- Ceramic Orifice
- การตัดแต่ง
Paper Trimming Nozzles
CMP-T
หัวฉีดแบบ solid สำหรับตัดกระดาษ ที่มีหัวฉีดเซรมิกซึ่งทนทานต่อการสึกหรอ
Specs
| Liquid Inlet Thread Size | R3/8 |
|---|---|
| Main Material | S303 |
| Standard Pressure | 1.0 MPa |
| Spray Capacity (Flow-rate) | 0.14–1.34 L/min |
Resources for Download
• Extra fine and clear non-turbulent solid stream nozzles with high impact cutting force.
Applications
- Trimming: Paper making, asbestos plate
- Cutting: Timber, food
- Others: Cleaning of precision machine parts, injection of chemicals, deburring, foaming of beer (jet foamer)
Industries where this nozzle is used
- Paper & Pulp
- Printing

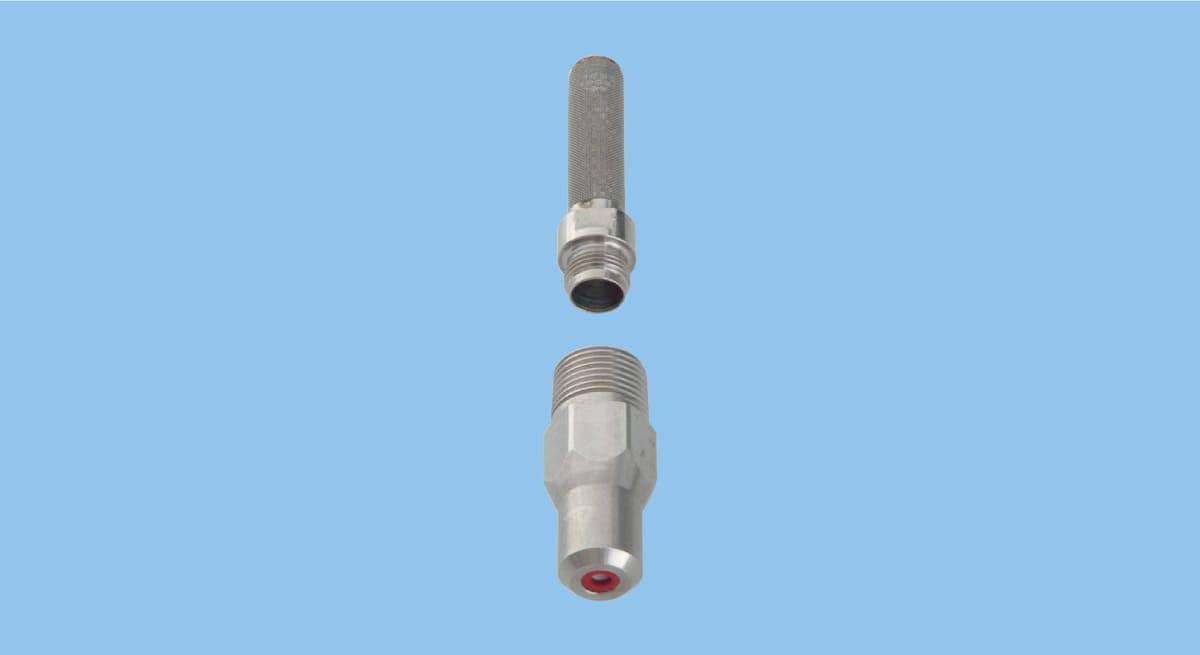

Structure
- Features a high-purity ceramic orifice. Polyamide sleeve molded around a ceramic orifice is pressed into the tip of the nozzle.
- Includes a nozzle and a strainer. Worn-out nozzles can be replaced separately.
