Solid Stream Spray Nozzles
CP

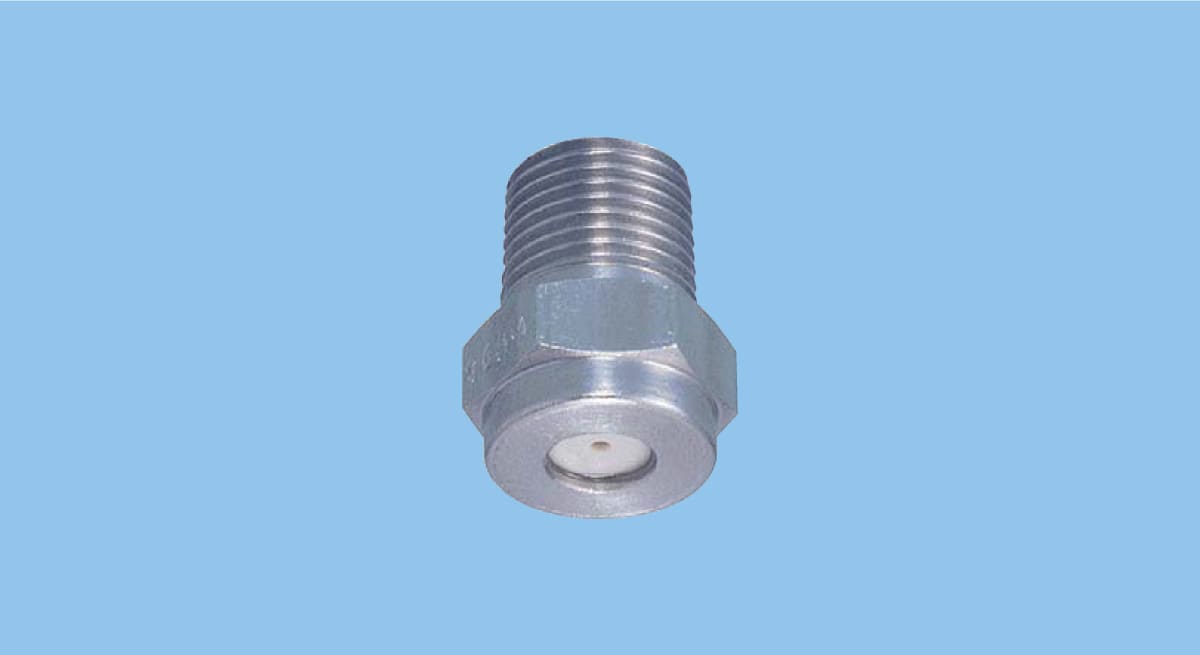

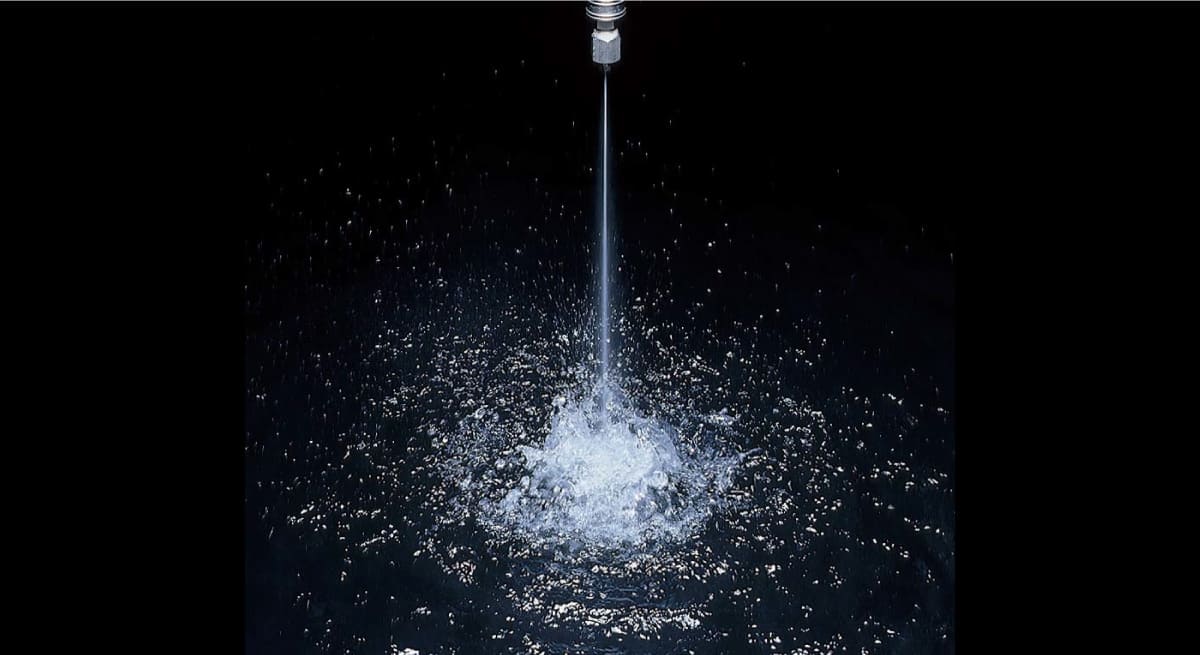

Hydraulic solid stream nozzles, featuring a wear-resistant ceramic orifice, produce a high-impact, straight liquid jet. This series is the most standard type in our lineup of solid stream nozzles.
Specs
| Liquid Inlet Thread Size | R1/8, R1/4, R3/8 |
|---|---|
| Main Material | S303 |
| Standard Pressure | 3 MPa |
| Spray Capacity (Flow-rate) | 2.47–104 L/min |
Resources for Download
• Our highest impact solid stream.
• Interior design featuring minimal pressure drop generates large flow of solid stream jet.
• Impact of turbulent flow inside the piping can be minimized.
Applications
- High pressure cleaning: Wire and felt parts of paper making machines, vehicles, returnable containers, machinery, parts
- Trimming: Paper making, asbestos plate
Industries where this nozzle is used
- Machinery
- Paper & Pulp
- Printing
- Food
Structure
- One-piece structure with a ceramic orifice insert. High-purity ceramic is used for the orifice of R1/8 and R1/4 models with spray capacity codes 25–210 and the small orifice diameter CP series with code 0.5–0.8.
- Small spray capacity models come with or without a strainer.
