Solid Stream Spray Nozzles (Self-cleaning)

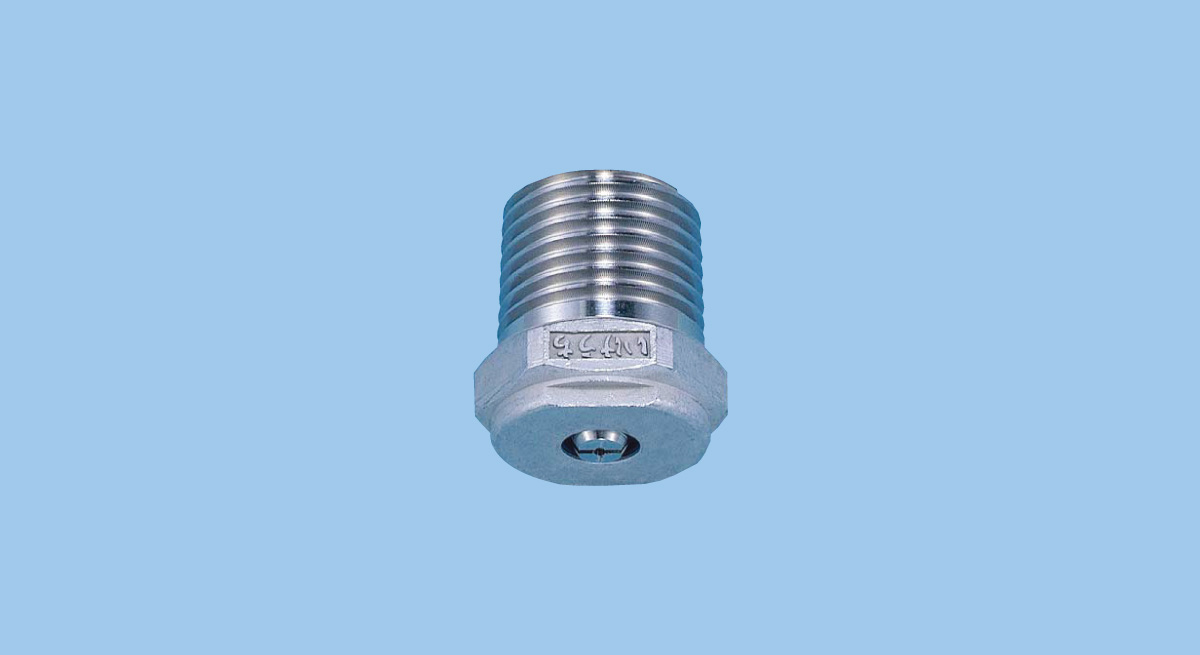

MOMOJet-C
หัวฉีดแบบ solid ที่มีกลไกในการทำความสะอาดตัวเอง
เมื่อแรงดันลดลงเหลือที่ 0.03 Mpa หรือต่ำกว่า ปลายหัวฉีดจะเปิดออกเพื่อไล่สิ่งแปลกปลอมที่อาจทำให้อุดตันออกไป
Specs
| Liquid Inlet Thread Size | R1/2 |
|---|---|
| Main Material | S303 |
| Standard Pressure | 1 MPa |
| Spray Capacity (Flow-rate) | 1.00–6.50 L/min |
* To start spraying, a flow rate of about 9 L/min at 0.02–0.03 MPa is required for all models. Make sure to select an appropriate pump.
* MOMOJet is designed to start spraying when the pressure is greater than 0.1 MPa. Use MOMOJet at a pressure of 0.2 MPa or higher.
* Since MOMOJet series nozzles have moving nozzle tips, the spray capacity is only guaranteed within +/-10% at standard pressure.
Resources for Download

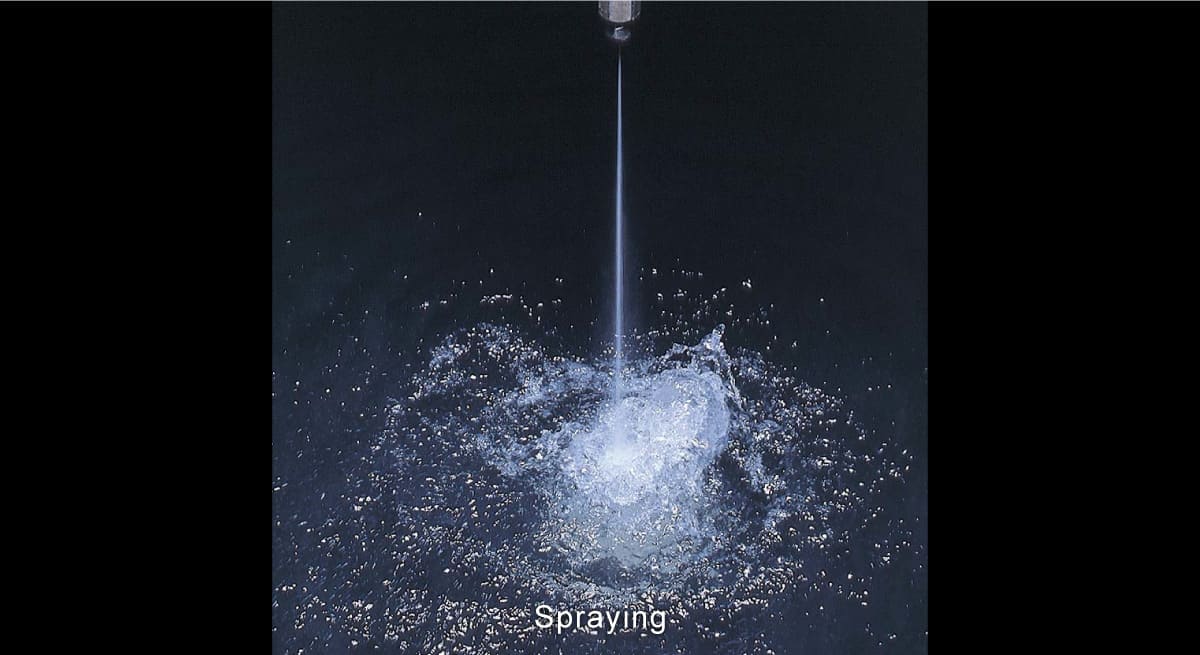

• High impact solid stream.

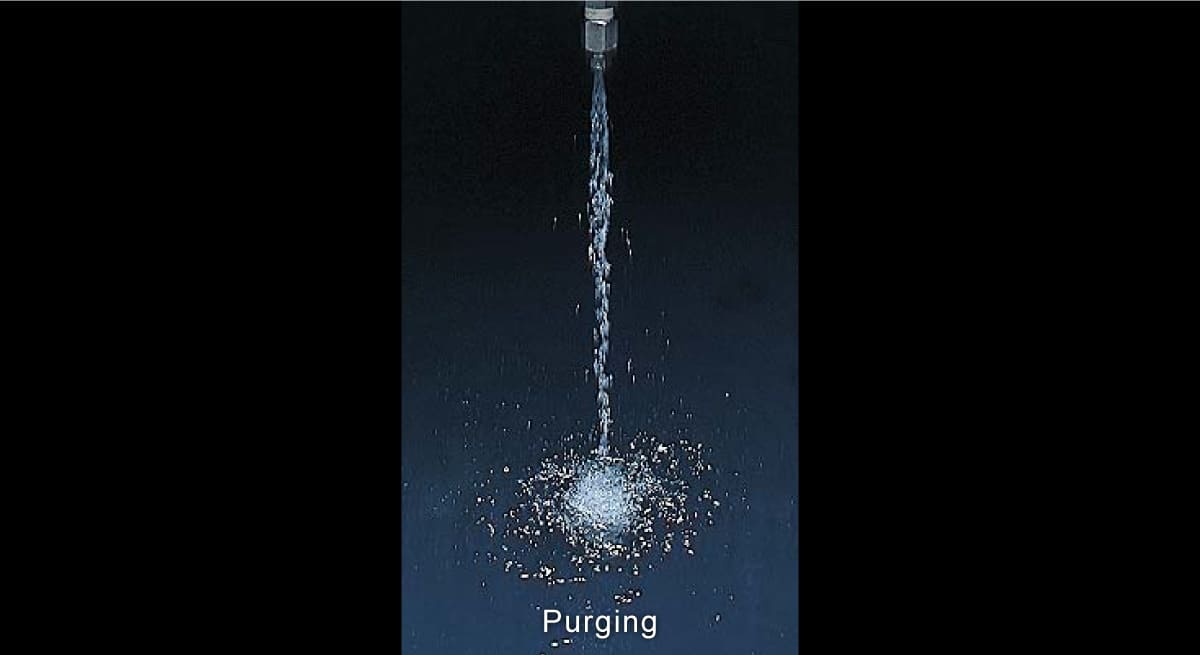

• If clogged, by reducing the pressure to 0.03 MPa, the nozzle tip is retracted and purges foreign particles.
By increasing the pressure to 0.2 MPa and greater, normal spraying is restored.
• Straight-through orifice is suitable for multiple nozzle arrangement.
Applications
- Cleaning: Papermaking (Wire, felt parts and rollers) steel plates, PCB
- Cooling: Steel plates
- Foam breaking: Waste water treatment
- Others: Applications where recirculated water is being used
Industries where this nozzle is used
- Paper & Pulp
- Printing
Structure
- By changing the liquid pressure, a built-in spring moves the split nozzle tip up and down and opens the orifice for purging.
