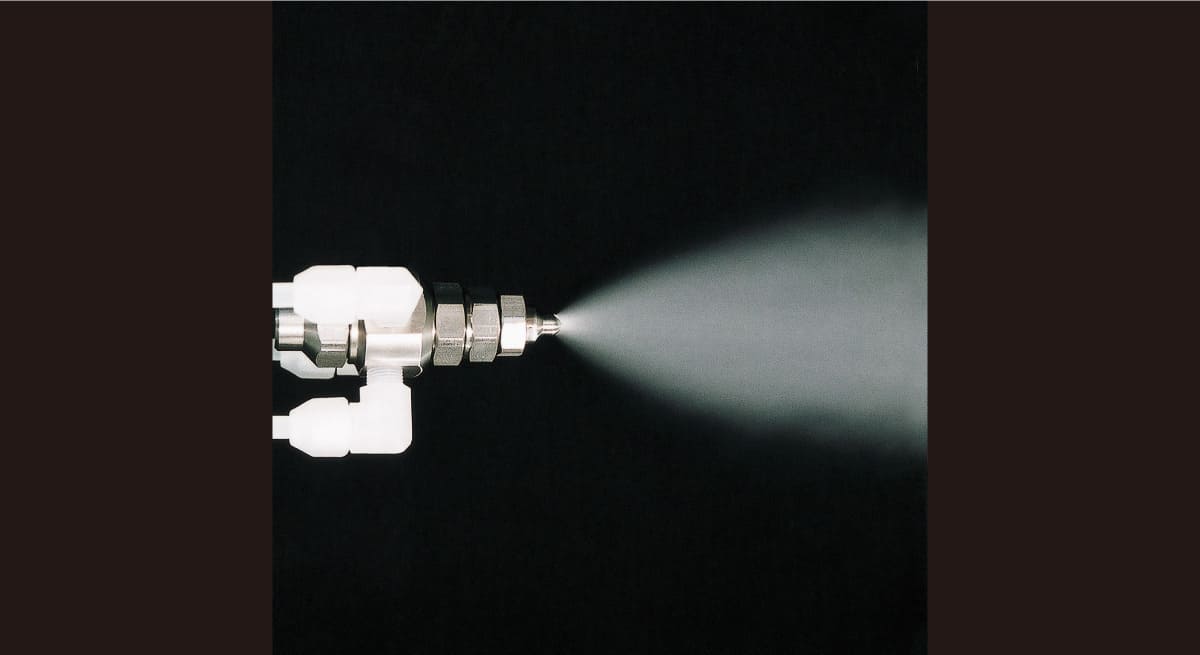

• Flat spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 100 μm or less (*3).

• Features large turn-down ratio under liquid pressures of 0.1–0.3 MPa.

• Produces two different spray distributions: uniform spray distribution throughout spray pattern area (when spraying at a low air-water ratio), or a mountain-shaped distribution having gradually tapered edges (at a high air-water ratio).

• Spray angle of 110ﾟ, 80ﾟ, or 45ﾟ.

*3) Measured by Laser Doppler Method.

Applications

• Spraying: Mold release agent, lubricant, deodorant (trash pit, refuse collector, inlet conduit), oil, surface treatment agent, rust preventive, honey, insecticide, aqueous urea, etc.
• Cooling: Dies, gas, glass, steel plates, steel pieces, moldings, automobile bodies, plastic products, etc.
• Moisture control: Paper, gas, ceramics, concrete, etc.
• Cleaning: Printed circuit boards, glass tubes, etc.
• Others: Dust suppression, catalyst denitration, etc.
• [Steelmaking industry]
• Raw material process: Dust suppression at the conveyor line, Flue gas denitration reducing agent
• Steelmaking process: Cooling refractories at maintenance of ladle and tundish, Cooling electric furnace and electrode
• Rolling mill process: Cooling coil
• Surface finish process: Minimized spangle treatment at the continuous galvazing line, Cooling coating line

Industries where this nozzle is used

Structure

• Four-part structure: Nozzle tip, core, cap, and adaptor. See the catalog for details of adaptors.
