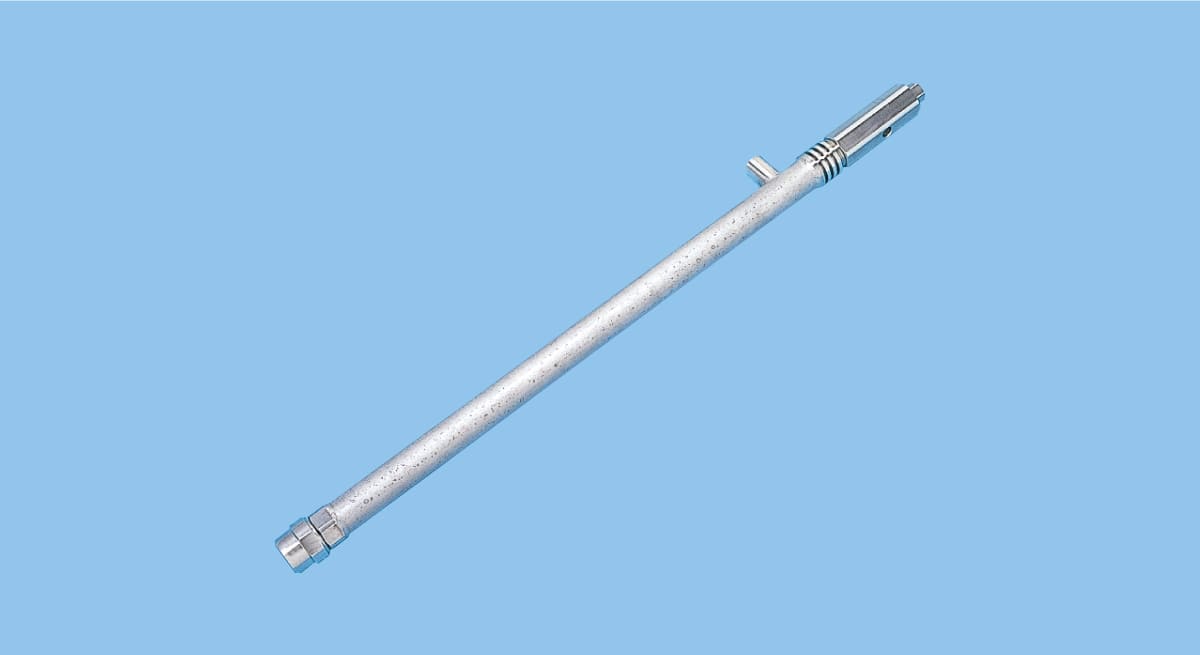

Steam-driven Spray Nozzles
JOKIJet

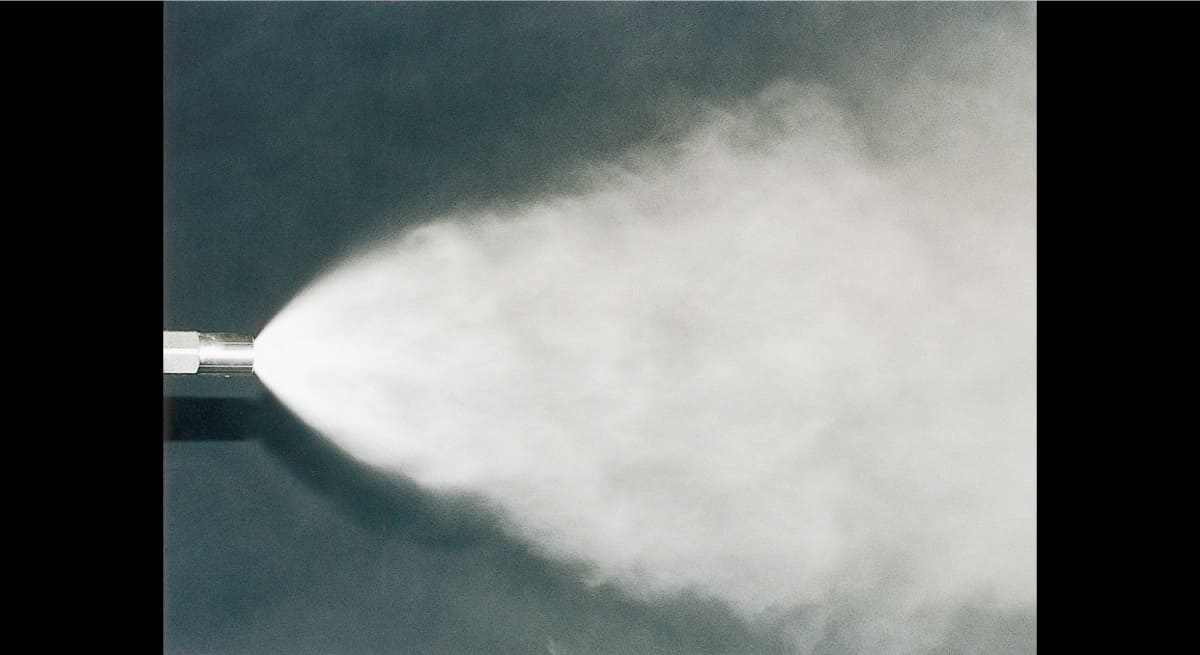

หัวฉีดสเปรย์ลมที่ใช้ไอน้ำเพื่อพ่นของเหลวแทนcompressed air
Specs
| Main Material | S316L, S304 |
|---|---|
| Air Supply | Steam |
| Liquid Feeding System | Liquid pressure |
| Air-liquid Mixing System | Enternal mixing outer air type |
| Fog Classification | Fine Drizzle, Light Rain |
| Mean Droplet Diameter | 40–200 μm |
| Spray Capacity (Flow-rate) | 10–1,200 L/hr *1 |
*1) Spray capacity measured at steam pressure of 0.1–0.6 MPa and liquid pressure of 0.1–0.5 MPa.
*) To control the spray out of the JOKIJet nozzles, control by steam pressure and spray capacity is recommended. Attempts to control the spray by controlling the steam pressure and liquid pressure may not allow stable spray control. For more details on JOKIJet spray control, please contact a sales representative.
Resources for Download
• Innovative pneumatic spray nozzle using steam instead of compressed air to produce fine (semi-fine) atomization.
• Great savings on running costs realized by utilizing steam from an existing boiler facility.
Applications
- Cooling: Gas
- Moisture control: Flue gas, paper, cardboard
- Chemical reaction: Denitration
Industries where this nozzle is used
- Pollution control
- Paper & Pulp
- Printing
