Ultra-compact, Low Flow Rate Flat Spray Nozzles (Suction Type)
SCBIMV.S
หัวฉีดflatที่เป็นเหมือนขนาดย่อส่วนของ CBIM ปกติ และเป็นแบบsuction type
Specs
| Main Material | S303 |
|---|---|
| Air Supply | Compressed air |
| Liquid Feeding System | Liquid siphon |
| Air-liquid Mixing System | Internal mixing inner air type |
| Fog Classification | Fine Fog |
| Mean Droplet Diameter | 20–30 μm |
| Spray Capacity (Flow-rate) | 0.1–0.74 L/hr |
| Spray Angle | 80° *1 |
| Spray Width | 160–170 mm *2 |
*1) Spray angle measured at compressed air pressure of 0.3 MPa and liquid siphon height of 100 mm.
*2) Measure at spray distance of 100 mm from nozzle and liquid siphon height of 100 mm.
*) See the catalog for more details.
Resources for Download
• Flat spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 30 μm or less.**

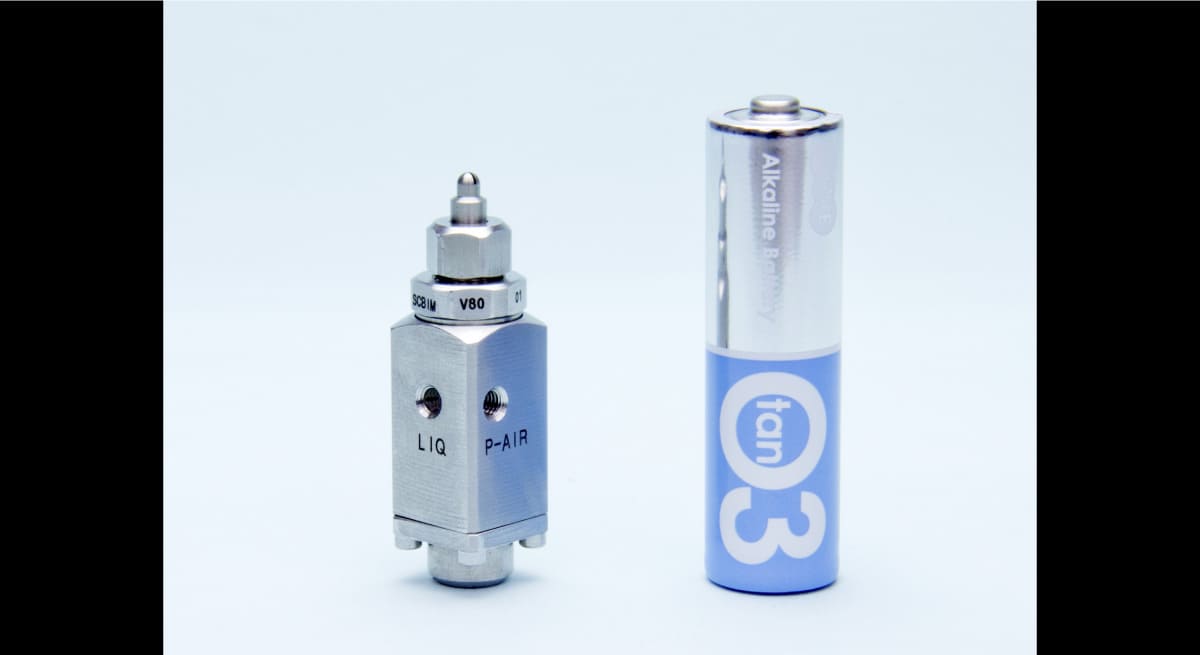

• Ultra-compact size. About 42 mm in total length including control adaptor.
• Liquid siphon feed type (liquid pressure device is not required).
• Even spray distribution across the entire spray area.
• Spray angle of 80ﾟ. *
• Capable of spraying smallest flow rate among all of our pneumatic spray nozzles.
• Spray ON/OFF can be regulated by switching the pilot air ON/OFF (adaptor type SP) or by turning compressed air ON/OFF (adaptor type SN).
*Spray angle measured at compressed air pressure of 0.3 MPa and liquid siphon height of 100 mm.
**Mean droplet diameter measured by laser Doppler method.
Applications
- Spraying: Mold release agent, lubricant, deodorant (trash pit, refuse collector, inlet conduit), oil, surface treatment agent, rust preventive, honey, insecticide, aqueous urea, etc.
- Cooling: Dies, gas, glass, steel plates, steel pieces, moldings, automobile bodies, plastic products, etc.
- Moisture control: Paper, gas, ceramics, concrete, etc.
- Cleaning: Printed circuit boards, glass tubes, etc.
- Others: Dust suppression, catalyst denitration, etc.
Industries where this nozzle is used
- Steelmaking
- Electronics
- Paper & pulp
- Printing
- Food
- Automotives
Structure
- Four-part structure: Nozzle tip, core, cap, and adaptor. See the catalog for details of adaptors.
