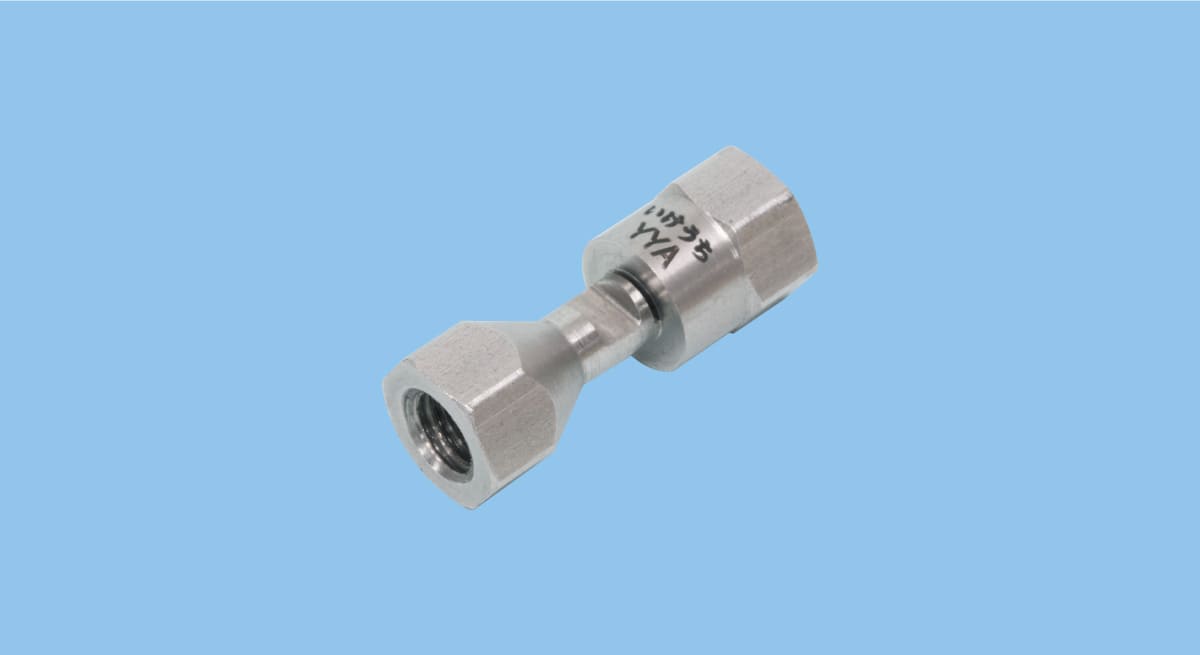

Low Flow Rate, Wide-angle Flat Spray Nozzles
YYA
หํวฉีดflatแบบมุมกว้าง สามารถพ่นของเหลวที่มีความหนืดได้ถึง 300 cP เป็นแบบผสมภายนอก
Specs
| Main Material | S303 |
|---|---|
| Air Supply | Compressed air |
| Liquid Feeding System | Liquid pressure |
| Air-liquid Mixing System | External mixing type |
| Fog Classification | Fine Fog |
| Mean Droplet Diameter | 15–30 μm |
| Spray Capacity (Flow-rate) | 2.2–10.0 L/hr |
| Spray Angle | 80° *1 |
*1) Measured at compressed air pressure of 0.3 MPa and liquid pressure of 0.05 MPa.
*) See the catalog for more details.
Resources for Download

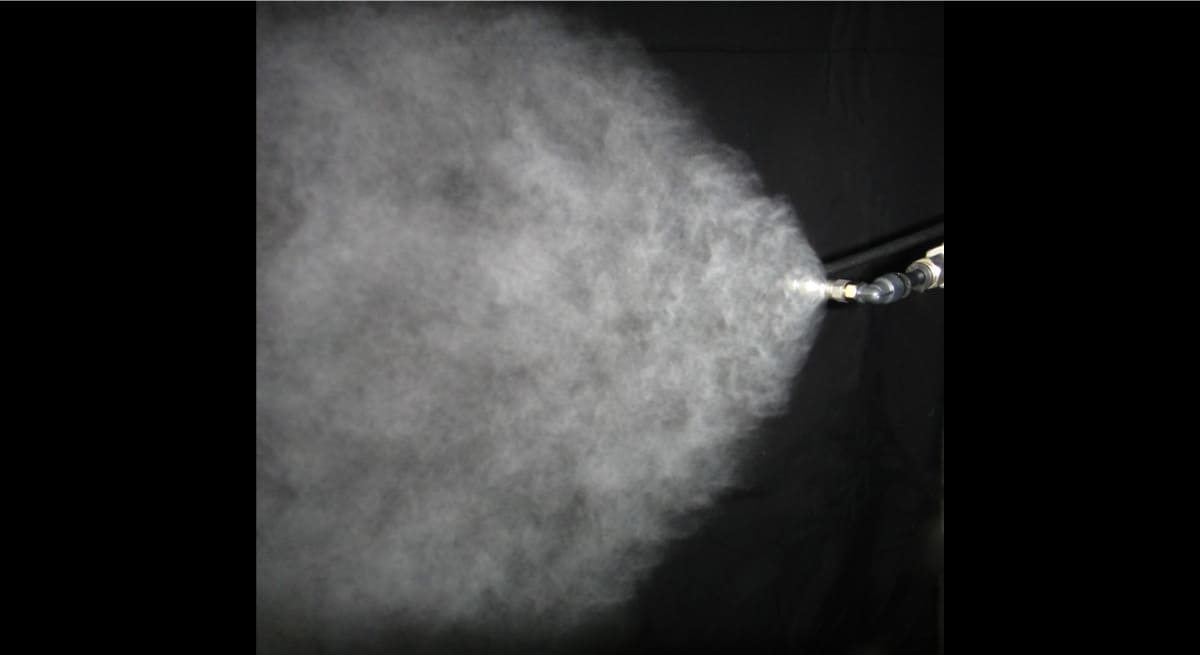

• Wide-angle flat spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 15–30 μm (*2).
• Combines "clog-resistant" and "wide spray angle" features.
• Compact, 22 mm-long design.
• Capable of spraying viscous liquid up to approx. 300 cP. (*3)
*2) Measured by Laser Doppler Method.
*3) Spray capacity and spray angle are reduced when viscous liquid is sprayed. Raising the liquid pressure to 0.2–0.3 MPa is recommended when spray capacity is small, otherwise the spray pattern becomes irregular.
Applications
- Spraying viscous liquid such as oil and honey
Industries where this nozzle is used
- Food products
