• การสั่งทำ

• Detergent Foam Spray Nozzles (Solid Stream)

AWCC

Operating pressure:0.1-0.6 MPa
Spray capacity:1.00-5.00 L/min (0.3 MPa)
Material:S303

• การสั่งทำ

• Detergent Foam Spray Nozzles (Flat Spray Pattern)

AWVV

Operating pressure:0.1-0.6 MPa
Spray capacity:1.00-5.00 L/min (0.3 MPa)
Spray angle:80°, 100°
Material:S303

• สินค้าสั่งทำ
• Precision Guarantee

• Wide-angle Full Cone Spray Nozzles

BBXP

Spray capacity:1.50–1200 L/min
Spray angle:120°
Material:S303, S316
Free passage diameter:0.7–21.7 mm

• Precision Guarantee

• Wide-angle Full Cone Spray Nozzles

BBXP-PVC

Spray capacity:3.00 L/min (0.2 MPa)
Spray angle:120°
Material:PVC
Free passage diameter:1.5 mm

• Precision Guarantee

• Wide-angle Full Cone Spray Nozzles

BBXP-PVDF

Spray capacity:0.80–2.00 ℓ/min (0.2 MPa)
Spray angle:120°
Material:PVDF
Free passage diameter:0.5–1.2 mm

• Precision Guarantee

• Flat Spray Nozzles (Coin-shaped)

CVVP

Operating pressure:0.05-2 MPa
Spray capacity:1.00–8.00 L/min (0.3 MPa)
Spray angle:65°, 80°, 90°
Material:S303

• 180° downward
• 180° upward
• 360°

• 2D Rotational Tank Cleaning Nozzles

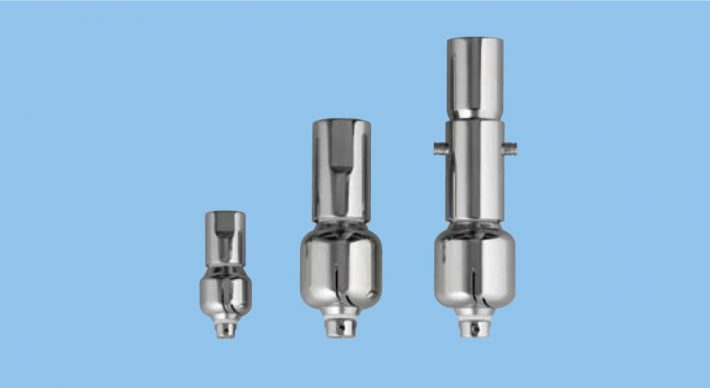

ES

Spray capacity:4.0–803.3 L/min (0.1–1.0 MPa)
Reach distance:Approx. 0.5–7.3m
Heat resistance:60℃
Material:S316L

• 180° downward
• 180° upward
• 360°

• 2D Rotational Tank Cleaning Nozzles

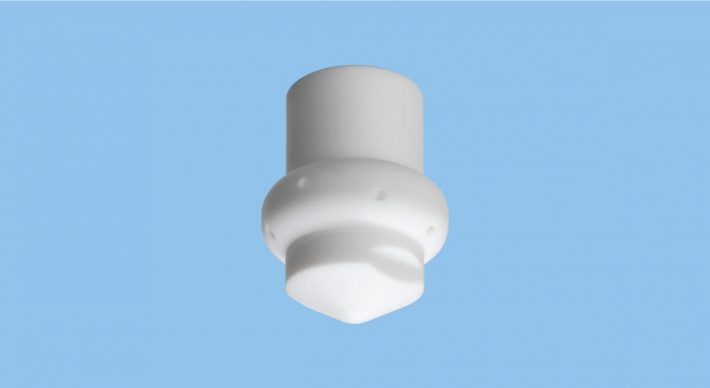

ES-PTFE

Spray capacity:12.2–194 L/min (0.05–0.5 MPa)
Reach distance:approx.1.5–4 m
Heat resistance:93℃
Material:PTFE

• 360°

• 2D Rotational Tank Cleaning Nozzles

ESV-PTFE

Spray capacity:12.2–194 L/min (0.05–0.5 MPa)
Reach distance:approx.1.1–4 m
Heat resistance:93℃
Material:PTFE

• 360°
• JET ATTACKER

• 3D Rotational Tank Cleaning Nozzles

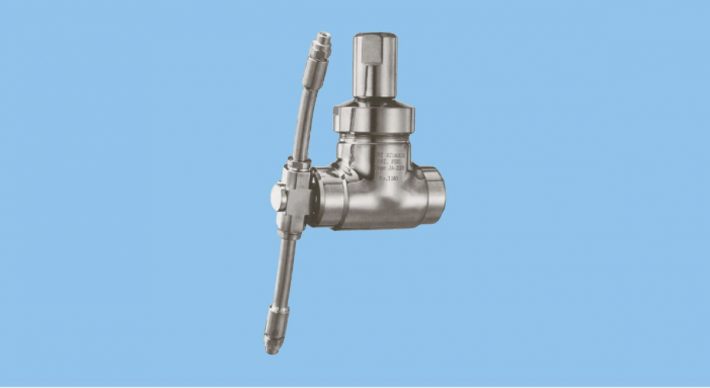

JA3 (JET ATTACKER)

Spray capacity:12–70 L/min (1.0–3.0 MPa)
Reach distance:approx. 6–9m
Heat resistance:60℃
Material:S304

• 360°
• JET ATTACKER

• 3D Rotational Tank Cleaning Nozzles

JA3 (JET ATTACKER / Low-pressure Use)

Spray capacity:24–82 L/min (0.3–1.2 MPa)
Reach distance:approx. 2–7 m
Heat resistance:60℃
Material:S304

• JET ATTACKER

• 2D Rotational Tank Cleaning Nozzles

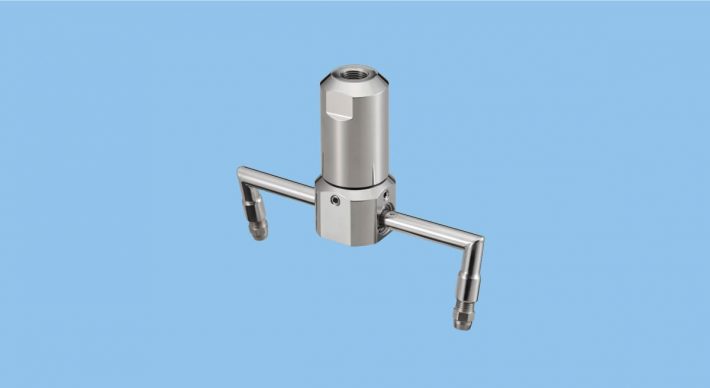

JA2 (JET ATTACKER)

Spray capacity:14–253.0 L/min (1.0–3.0 MPa)
Heat resistance:60℃
Material:S304

• 180° downward
• JET ATTACKER

• 3D Rotational Tank Cleaning Nozzles

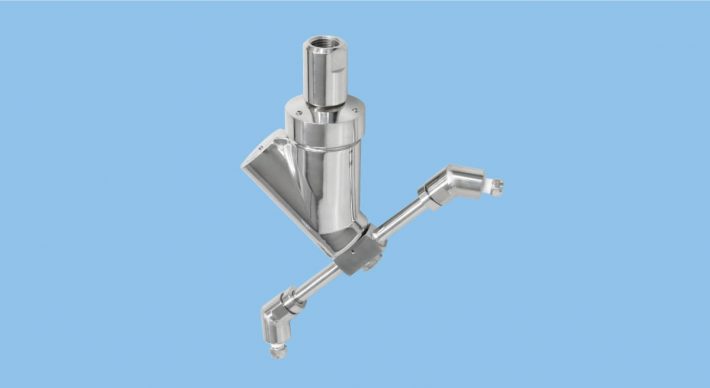

JA3-D180 (JET ATTACKER)

Spray capacity:12–70 L/min (1.0–3.0 MPa)
Reach distance:approx. 6–9 m
Heat resistance:60℃
Material:S304

• Precision Guarantee

• Low Flow Rate Full Cone Spray Nozzles

JJRP-PTFE

Spray capacity:0.50–6.00 ℓ/min (0.2 MPa)
Spray angle:60–90°
Material:PTFE
Free passage diameter:0.4–1.6 mm

• Precision Guarantee

• Low Flow Rate Full Cone Spray Nozzles

JJRP-PVDF

Spray capacity:0.50–0.70 L/min (0.2 MPa)
Spray angle:60–65°
Material:PVDF
Free passage diameter:0.4–0.6 mm

• Precision Guarantee

• Full Cone Spray Nozzles

JJXP-HTPVC

Spray capacity:4.00–6.00 L/min (0.2 MPa)
Spray angle:65°–75°
Material:HTPVC
Free passage diameter:2.1 mm

• Precision Guarantee

• Full Cone Spray Nozzles

JJXP-PVC

Spray capacity:2.00 L/min (0.2 MPa)
Spray angle:75°
Material:PVC
Free passage diameter:1.5 mm

• Precision Guarantee

• Full Cone Spray Nozzles

JJXP-PVDF

Spray capacity:1.00–3.00 L/min (0.2 MPa)
Spray angle:65°
Material:PVDF
Free passage diameter:0.8–1.5 mm

• การสั่งทำ

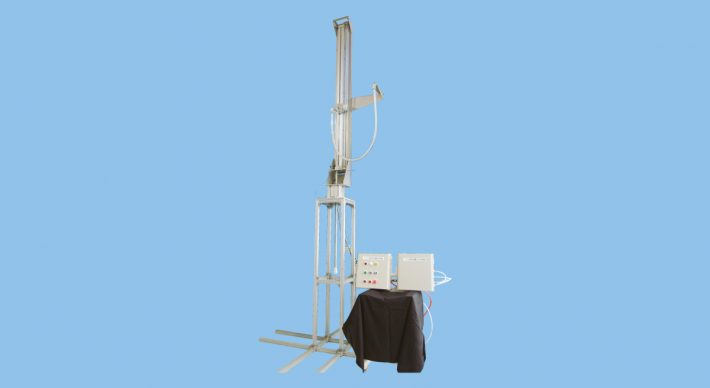

• Automatic Nozzle Lifting Unit

NLD (Automatic Nozzle Lifting Unit)

Nozzle stroke:500mm to about1,700 mm
Heat resistance:5–50℃
Material:S304, fluorocarbon resin (Liquid contact parts)

• Precision Guarantee

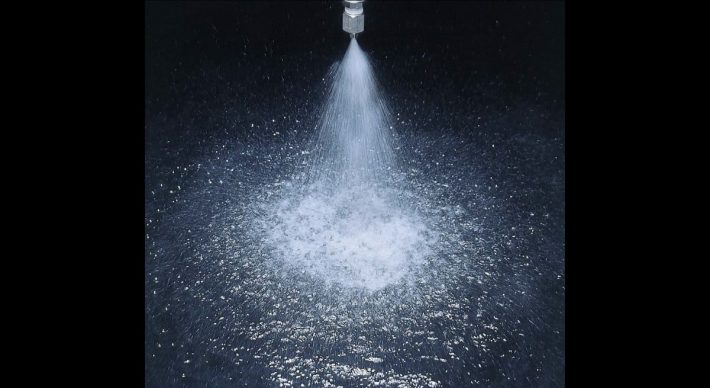

• Narrow-angle Full Cone Spray Nozzles

NJJP

Spray capacity:6.00–20.0 L/min (0.3 MPa)
Spray angle:15°, 30°
Material:S303
Free passage diameter:2.3–4.4 mm

• 360°
• ROTARY JETTER

• 3D Rotational Tank Cleaning Nozzles

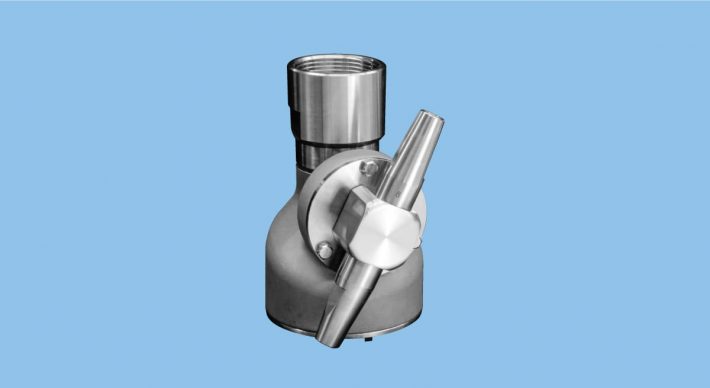

RJ (ROTARY JETTER)

Spray capacity:25.6–246 L/min (0.2–1.0 MPa)
Reach distance:About 7–12m (RADIUS)
Heat resistance:80℃
Material:S304

• ROTARY JETTER

• Pressure-open Nozzle

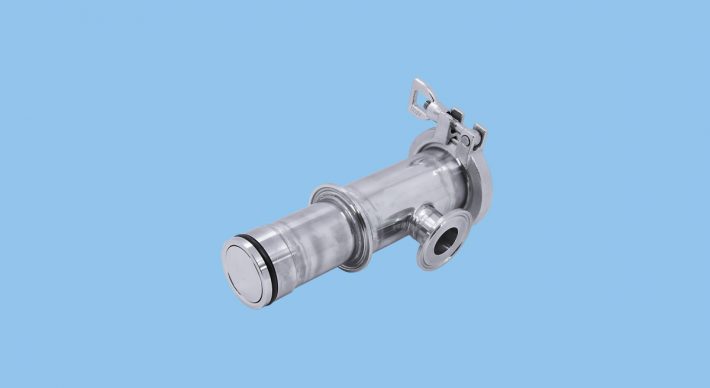

RJ2-PON

Spray capacity:24.8–100.4 L/min (0.2–0.5 MPa)
Reach distance:3.5–5m
Heat resistance:80℃
Material:S304

• การสั่งทำ
• 360°
• ROTARY JETTER

• 3D Rotational Tank Cleaning Nozzles

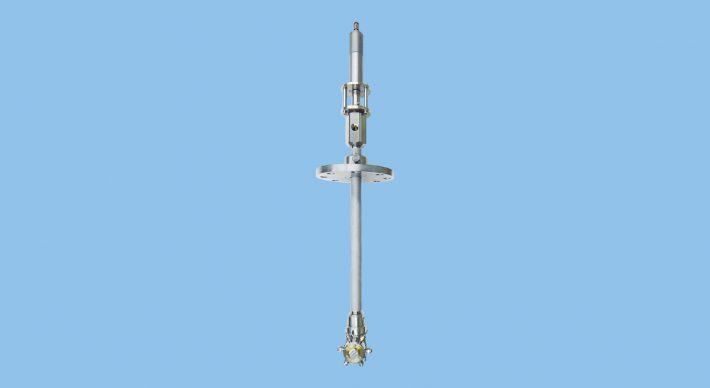

RJ3-MD(Air Motor)

Spray capacity:4.2–103.7 L/min (0.3–15 MPa)
Reach distance:Approx. 1.5–2.5 m (RADIUS)
Heat resistance:80℃
Material:S304

• การสั่งทำ
• 360°
• ROTARY JETTER

• 3D Rotational Tank Cleaning Nozzles

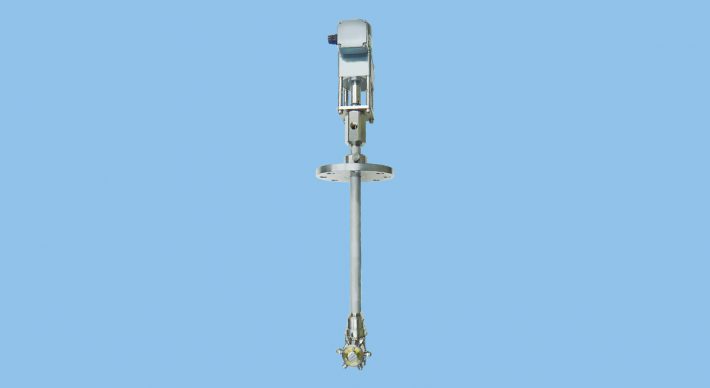

RJ3-MD(Electric Motor)

Spray capacity:4.2–103.7 L/min (0.3–15 MPa)
Reach distance:Approx. 1.5–2.5 m (RADIUS)
Heat resistance:80℃
Material:S304

• การสั่งทำ

• Pipe Cleaning Nozzles

RSP

Operating pressure:1-30 MPa
Spray capacity:14–331 L/min
Material:S303

• High-Pressure Rotating Pipe Cleaning Nozzles

RSP-R

Operating pressure:1-10 MPa
Spray capacity:5.8 L/min (1 MPa)
Material:HS (Hardened stainless steel)

• การสั่งทำ
• Ceramic Orifice
• Intermittent Pulse Spray
• Precision Guarantee
• Spray Control

• Pulse Spray Nozzles

SD-V

Operating pressure:0.05-0.9 MPa
Spray capacity:0.20–0.39 L/min (0.3 MPa)
Spray angle:49 - 114°
Material:S303

• การสั่งทำ
• Intermittent Pulse Spray
• Precision Guarantee
• Spray Control

• Pulse Spray Nozzles

SD-VV

Operating pressure:0.05-0.9 MPa
Spray capacity:0.48–1.33 L/min (0.3 MPa)
Spray angle:13 - 114°
Material:S303

• 360°

• 2D Rotational Tank Cleaning Nozzles

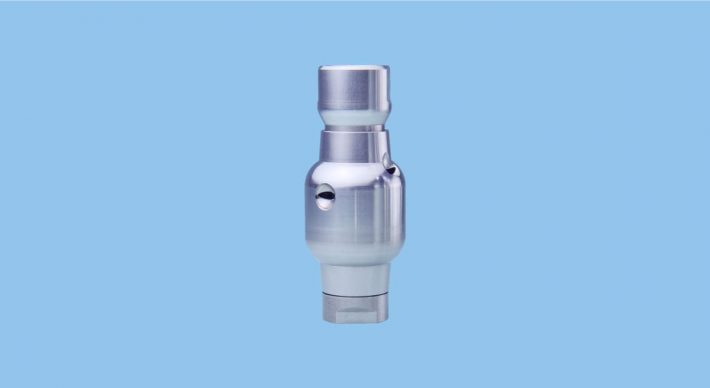

SR

Spray capacity:9.19–194 L/min (0.15–0.5 MPa)
Reach distance:Approx. 2–5.8 m
Heat resistance:150℃
Material:S316L

• 360°

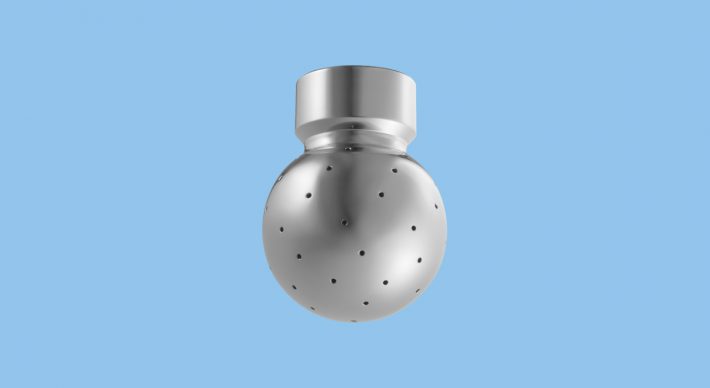

• Shower Balls

SWB (Shower Balls)

Spray capacity:35.4–395 L/min (0.1–0.5 MPa)
Applicable tank diameter:About 450–3,750 mm
Heat resistance:400℃
Material:S316L

• การสั่งทำ

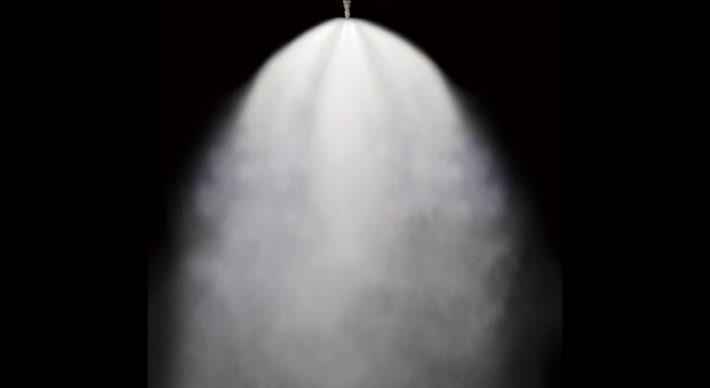

• Wide-angle Full Cone Spray Nozzles (Multi-orifice)

TSP

Spray capacity:15.0–60.1 L/min (5 MPa)
Material:S303
Free passage diameter:0.4–0.8 mm

• Precision Guarantee

• หัวฉีดสเปรย์สำหรับพ่นสารกัดกร่อน

UVVP

Operating pressure:0.05-0.5 MPa
Spray capacity:4.00–5.00 L/min (0.3 MPa)
Spray angle:65°
Material:UPE

• Ceramic Orifice
• Precision Guarantee

• Flat Spray Nozzles (Three-piece Structure)

V

Operating pressure:0.05-2 MPa
Spray capacity:0.20–8.00 L/min (0.3 MPa)
Spray angle:50ﾟ, 65ﾟ, 80ﾟ, 90ﾟ, 115ﾟ
Material:S303

• Ceramic Orifice
• Precision Guarantee

• Even Flat Spray Nozzles (Three-piece Structure)

VE

Operating pressure:0.05-5 MPa
Spray capacity:0.30–46.9 L/min (0.3 MPa)
Spray angle:15°, 25°, 40°, 50°, 65°, 80°, 90°, 115°
Material:S303, B

• Ceramic Orifice
• Precision Guarantee

• Even Flat Spray Nozzles

VEP

Operating pressure:0.05-5 MPa
Spray capacity:0.30–46.9 L/min (0.3 MPa)
Spray angle:15°, 25°, 40°, 50°, 65°, 80°, 90°, 115°
Material:S303, B

• Ceramic Orifice
• Precision Guarantee

• Spray Nozzles for High Pressure Cleaning

VNP

Operating pressure:1-15 MPa
Material:2.47–12.4 L/min (3 MPa)
Spray angle:15°, 25°, 30°, 40°, 65°
Material:S303, B

• Ceramic Orifice
• Precision Guarantee

• Flat Spray Nozzles

VP

Operating pressure:0.05-2 MPa
Spray capacity:0.20–8.00 L/min (0.3 MPa)
Spray angle:50ﾟ, 65ﾟ, 80ﾟ, 90ﾟ, 115ﾟ
Material:S303, B

• การสั่งทำ
• Precision Guarantee

• Flat Spray Nozzles

VV

Operating pressure:0.05-2 MPa
Spray capacity:0.50–20.0 L/min (0.3 MPa)
Spray angle:15ﾟ, 25ﾟ, 40ﾟ, 50ﾟ, 65ﾟ, 80ﾟ, 90ﾟ, 115ﾟ
Material:S303

• สินค้าสั่งทำ
• Precision Guarantee

• Flat Spray Nozzles

VVP

Operating pressure:0.05-2 MPa
Spray capacity:0.20–150 L/min (0.3 MPa)
Spray angle:15ﾟ, 25ﾟ, 40ﾟ, 50ﾟ, 65ﾟ, 80ﾟ, 90ﾟ, 115ﾟ
Material:S303, PP, PVDF
