• การสั่งทำ

• Impinging-type Fine Fog Nozzles

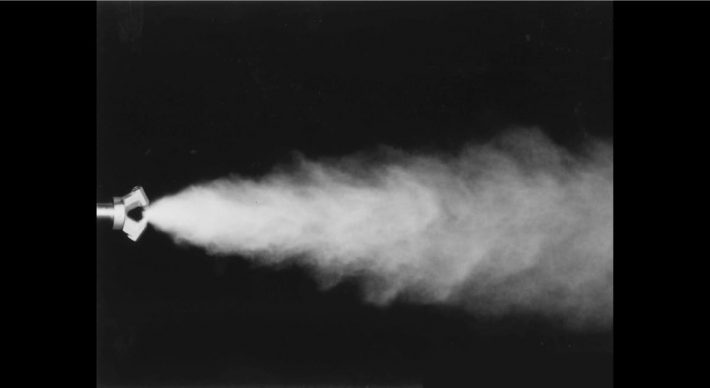

AKIJet

Mean droplet diameter:10–120 μm
Spray capacity:10–450 L/hr
Spray width:140–780 mm
Material:S303 equivalent, S303, SCS14, S316

• การสั่งทำ
• Clog Resistant

• Fine Fog, Flat Spray Nozzles (Large Capacity)

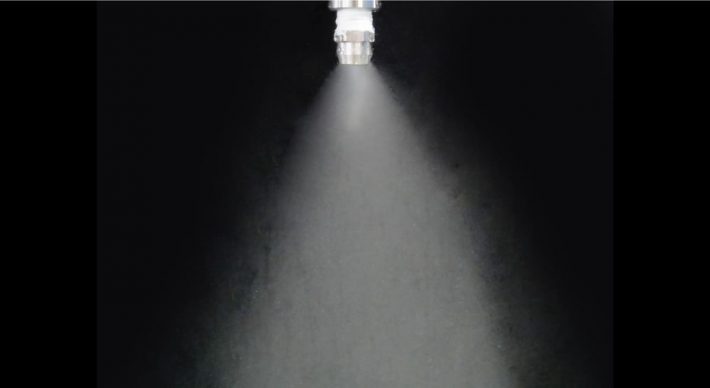

BAVV

Mean droplet diameter:30–100 μm
Spray capacity:10–200 L/hr
Spray angle:60°
Material:S303, S304

• Spray Control

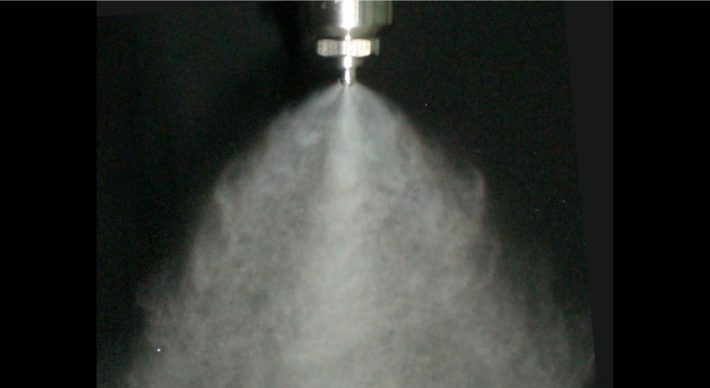

• Fine Fog, Full Cone Spray Nozzles

BIMJ

Mean droplet diameter:20-100 μm
Spray capacity:1.0–107 L/hr
Spray angle:70°, 20°
Material:S303

• Spray Control

• Fine Fog, Hollow Cone Spray Nozzles

BIMK

Mean droplet diameter:20-100 μm
Spray capacity:2.0–107 L/hr
Spray angle:60°
Material:S303

• Spray Control
• Suction

• Fine Fog, Hollow Cone Spray Nozzles (Suction Type)

BIMK.S

Mean droplet diameter:20-30 μm
Spray capacity:1.4–5.5 L/hr
Spray angle:60°
Material:S303

• Spray Control

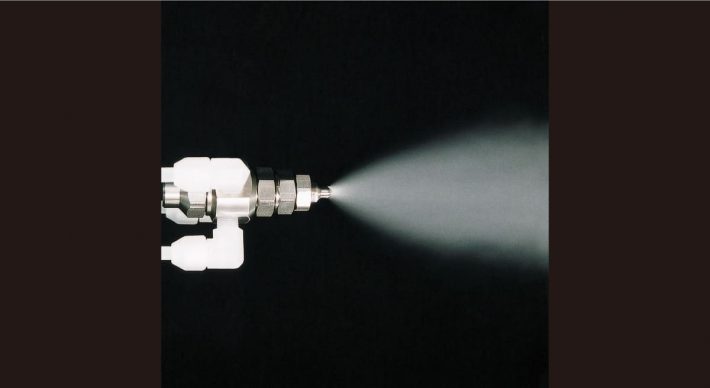

• Spray Gun Unit with BIM Nozzles

BIMV

Mean droplet diameter:20-100 μm
Spray capacity:1.0–107 L/hr
Spray angle:45°, 80°, 110°
Material:S303

• Spray Control
• Suction

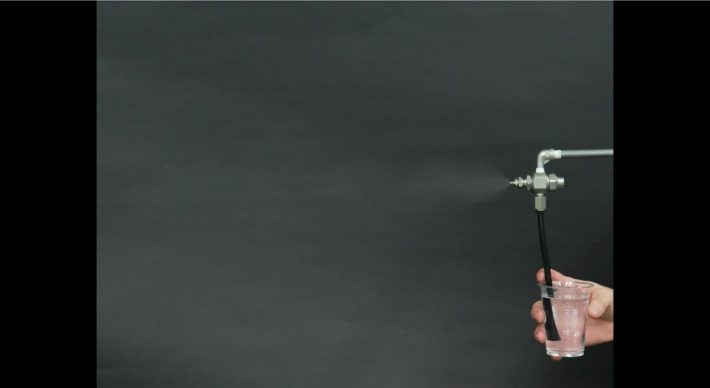

• Fine Fog, Flat Spray Nozzles (Suction Type)

BIMV.S

Mean droplet diameter:20-30 μm
Spray capacity:0.5–5.5 L/hr
Spray angle:80°
Material:S303

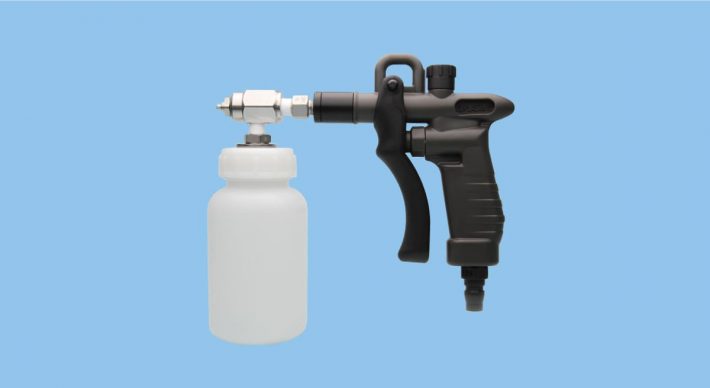

• Spray Gun Unit with BIM Nozzles

BIM-GUN

• การสั่งทำ

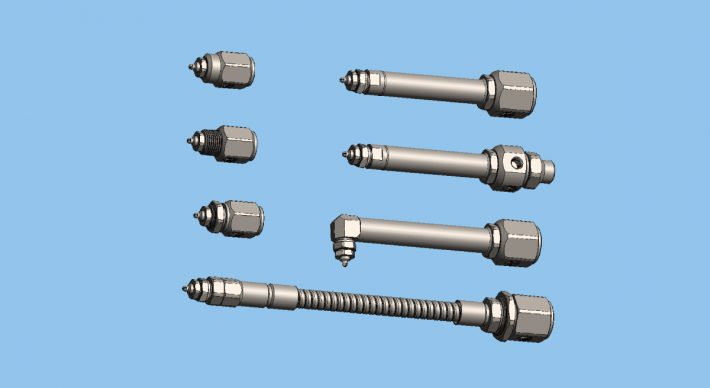

• Customized Adaptors for BIM Series

BIM Customized Adaptors

• Compact
• Spray Control

• Fine Fog, Flat Spray Nozzles

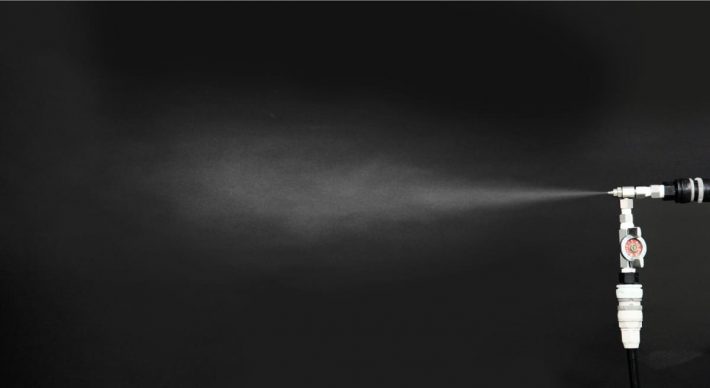

CBIMJ

Mean droplet diameter:20-100 μm
Spray capacity:0.25–38.5 L/hr
Spray angle:20°
Material:S303

• Compact
• Spray Control

• Fine Fog, Hollow Cone Spray Nozzles

CBIMK

Mean droplet diameter:20-100 μm
Spray capacity:2.0–38.5 L/hr
Spray angle:60°
Material:S303

• Compact
• Spray Control
• Suction

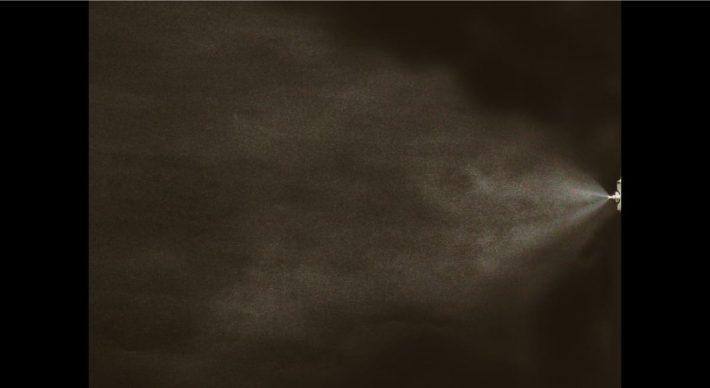

• Fine Fog, Hollow Cone Spray Nozzles (Suction Type)

CBIMK.S

Mean droplet diameter:20-30 μm
Spray capacity:1.4–5.5 L/hr
Spray angle:60°
Material:S303

• Compact
• Spray Control

• Fine Fog, Flat Spray Nozzles

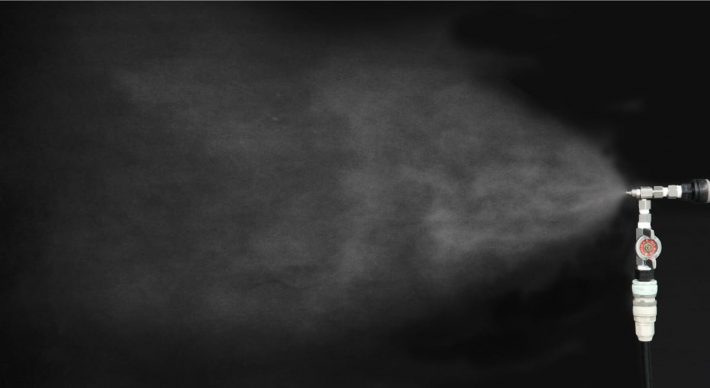

CBIMV

Mean droplet diameter:20-100 μm
Spray capacity:0.25–38.5 L/hr
Spray angle:45°, 80°, 110°
Material:S303

• Compact
• Spray Control
• Suction

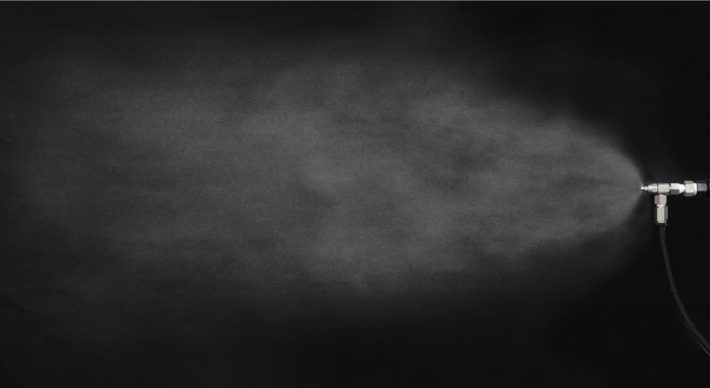

• Fine Fog, Flat Spray Nozzles (Suction Type)

CBIMV.S

Mean droplet diameter:20-30 μm
Spray capacity:0.1–5.5 L/hr
Spray angle:80°
Material:S303

• การสั่งทำ
• Clog Resistant

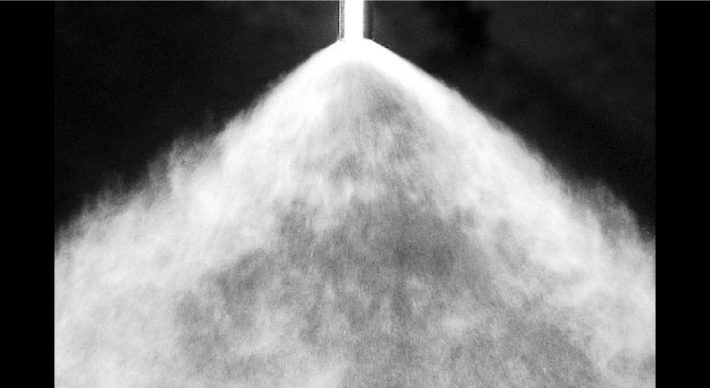

• Ultra-thick Even Flat Spray Nozzles

DDA

Mean droplet diameter:15–200 μm
Spray capacity:0.14–57.3 L/min
Spray angle:75°, 80°, 100°, 110°, or 125°
Material:S303, S304

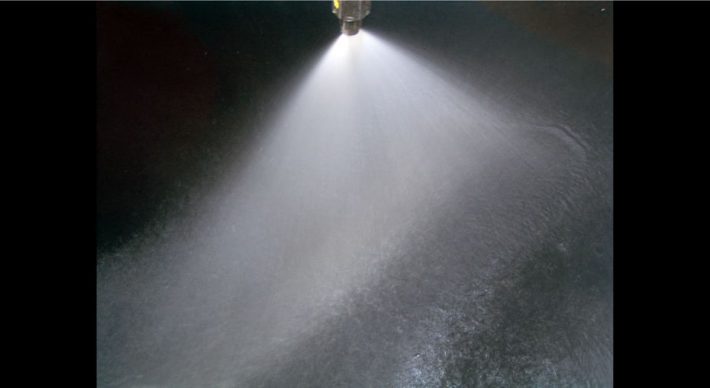

• Thick Even Flat Spray Nozzles

DDRP+AS

Mean droplet diameter:430–488 μm
Spray capacity:19–24.7 L/min
Spray angle:90°, 115°
Material:S303, S304

• Clog Resistant

• Even Flat Spray Nozzles

DOVEA

Mean droplet diameter:50–200 μm
Spray capacity:0.42–40 L/min
Spray angle:55°, 70°, 95°, or 110°
Material:S303, S304

• Clog Resistant

• Flat Spray Nozzles

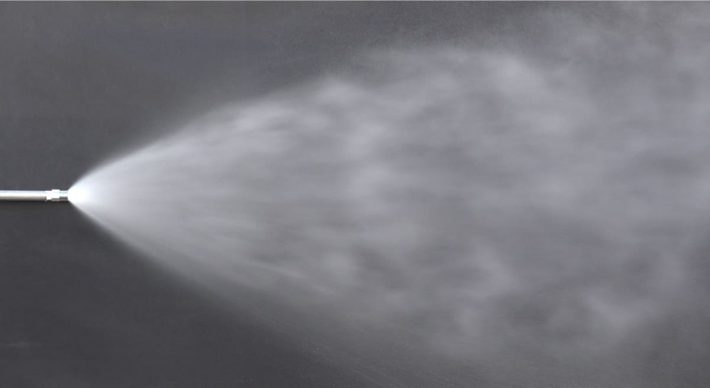

DOVVA-G

Mean droplet diameter:80–120 μm
Spray capacity:1.0–50 L/min
Spray angle:55°, 70°
Material:S316L, S304

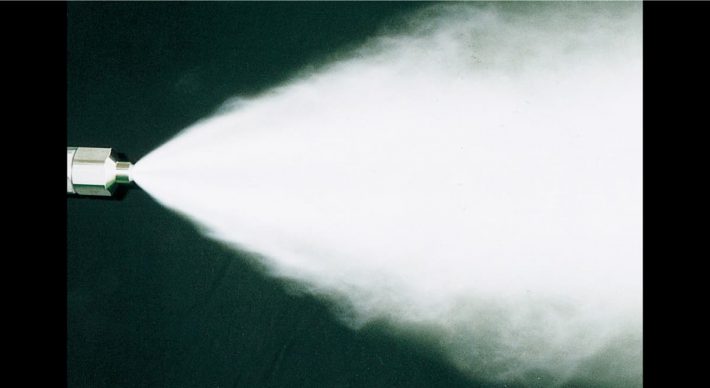

• Large Capacity Fine Fog Spray Nozzles (Large Spray Capacity)

GSIMⅡ

Mean droplet diameter:30–80 μm
Spray capacity:15–2,000 L/hr
Spray angle:20°, 60°
Material:S316L, S303

• Quick-detachable

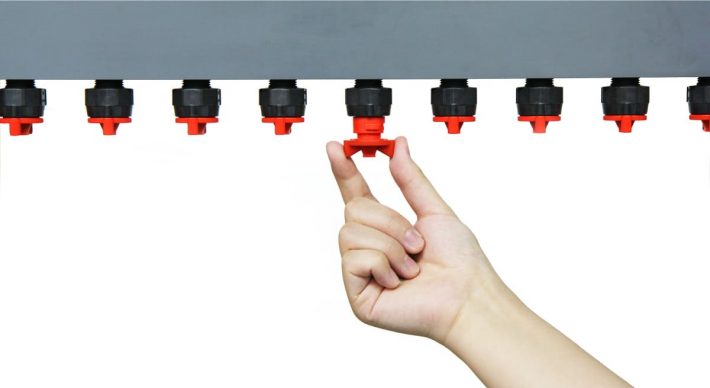

• Spray Header with Quick-Detachable Nozzles

INVVEA

Mean droplet diameter:20–400 μm
Spray capacity:0.30–3.0 L/min
Spray angle:60°
Material:PP, PPS, HTPVC

• Clog Resistant

• Full Cone Spray Nozzles

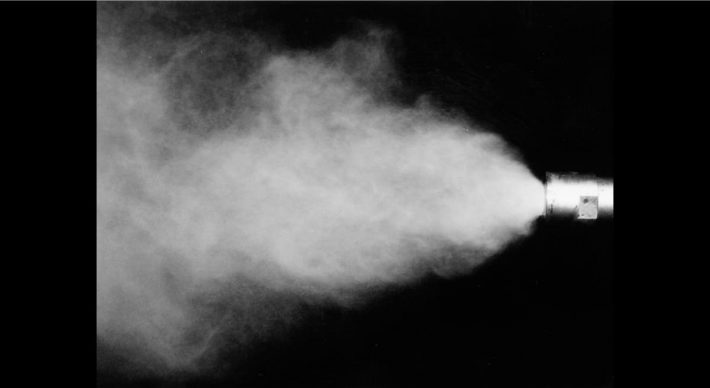

JJA

Mean droplet diameter:150–650 μm
Spray capacity:1.1–24.0 L/min
Material:S316L, S304

• Steam

• Steam-driven Spray Nozzles

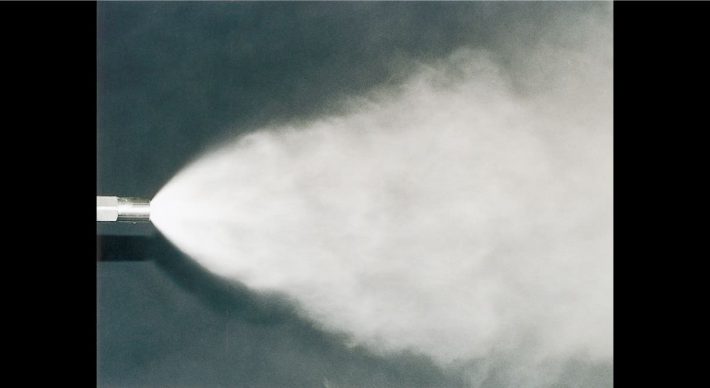

JOKIJet

Spray capacity:10–1,200 L/hr
Material:S316L, S304

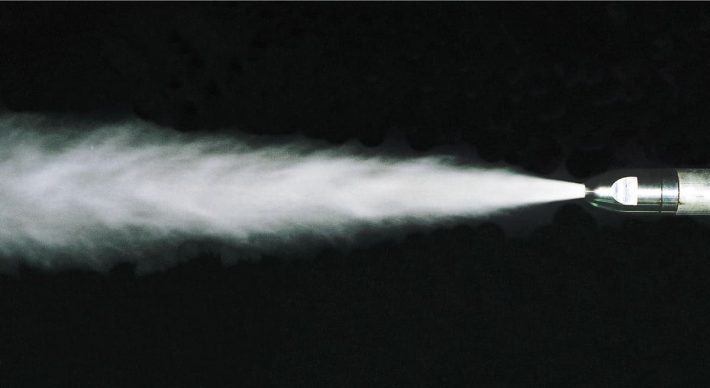

• Full Cone Spray Nozzles (Blower Air Type)

LSIM

Mean droplet diameter:40–80 μm
Spray capacity:100–1,000 L/hr
Spray angle:20°
Material:S316L, S304

• การสั่งทำ
• Water Curtain

• Slit Nozzles

PSN

Spray capacity:8.0–28.0 L/min

• การสั่งทำ
• Compact
• Spray Control

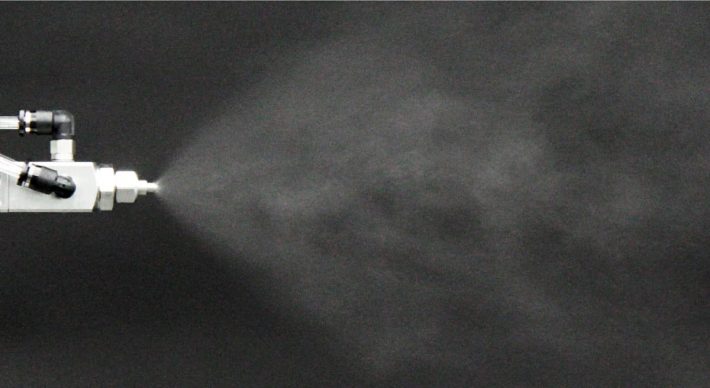

• Ultra-compact, Low Flow Rate Full Cone Spray Nozzles

SCBIMJ

Mean droplet diameter:20-100 μm
Spray capacity:0.25–4.0 L/hr
Spray angle:20°
Material:S303

• การสั่งทำ
• Compact
• Spray Control

• Ultra-compact, Low Flow Rate Flat Spray Nozzles

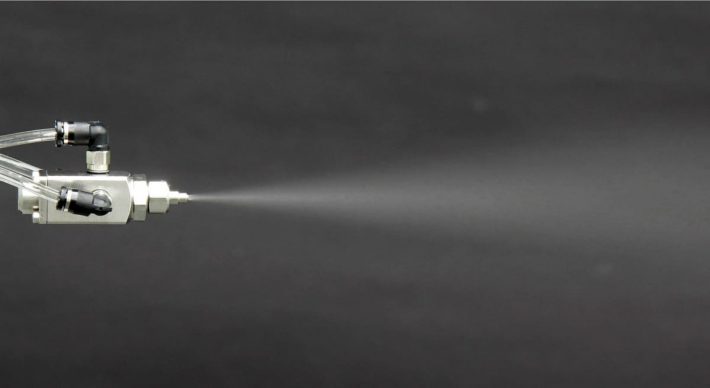

SCBIMV

Mean droplet diameter:20-100 μm
Spray capacity:0.25–4.0 L/hr
Spray angle:45°, 80°, 110°
Material:S303

• การสั่งทำ
• Compact
• Spray Control
• Suction

• Ultra-compact, Low Flow Rate Flat Spray Nozzles (Suction Type)

SCBIMV.S

Mean droplet diameter:20-30 μm
Spray capacity:0.1–0.74 L/hr
Spray angle:80°
Material:S303

• Intermittent Pulse Spray
• Spray Control

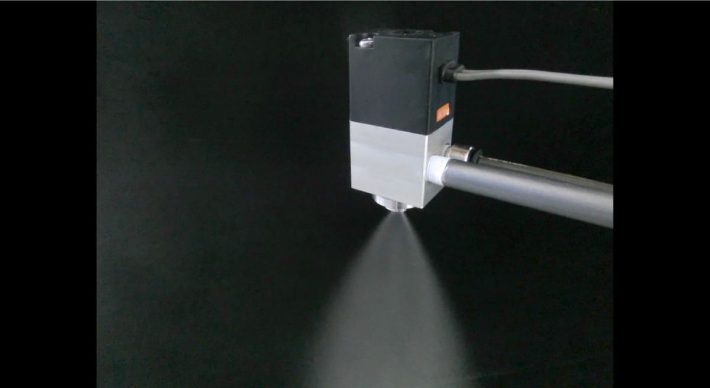

• Pulse Spray Nozzles

SETO-SD

Mean droplet diameter:15–25 μm
Spray capacity:0.9–26.4 L/hr

• Clog Resistant
• High-viscosity Liquid Spray

• Full Cone Nozzles for Spraying Viscous Liquid

SETOJet

Mean droplet diameter:20–60 μm
Spray capacity:2.0–111 L/hr
Material:S303

• Clog Resistant
• Compact
• High-viscosity Liquid Spray

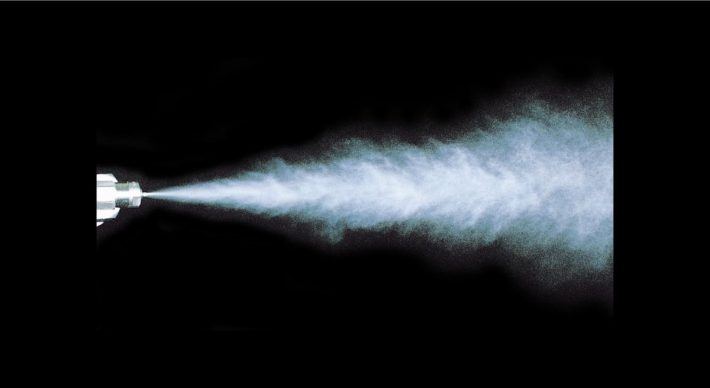

• Full Cone Nozzles for Spraying Viscous Liquid

SETO-SP

Mean droplet diameter:10–50 μm
Spray capacity:1.5–5.1 L/hr
Material:S303

• Clog Resistant
• Compact
• High-viscosity Liquid Spray

• Anti-dripping Flat Spray Nozzles

SETOV

Mean droplet diameter:15–40 μm
Spray capacity:1.7–10.6 L/hr
Material:S303

• Clog Resistant
• High-viscosity Liquid Spray

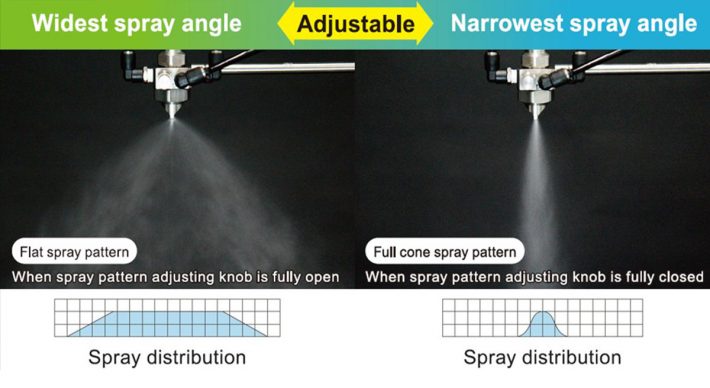

• Spray Pattern Adjustable Nozzles

SETOV-C

Spray capacity:1.0–30 L/hr
Material:S303

• Compact
• High Spray Impact

• Flat Spray Nozzles

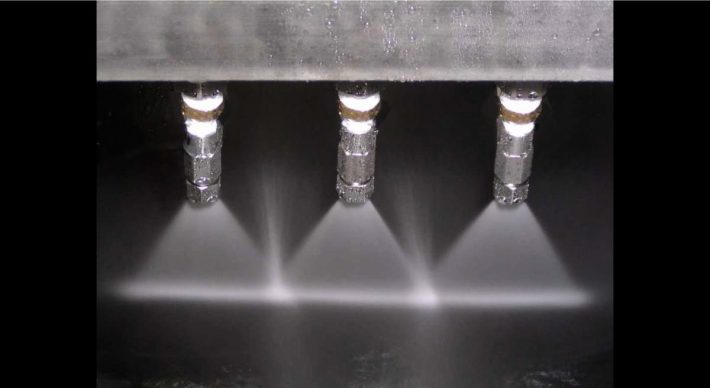

VVEA

Mean droplet diameter:20–400 μm
Spray capacity:0.23–3.0 L/min
Spray angle: 60°, 80°
Material:S303

• Compact

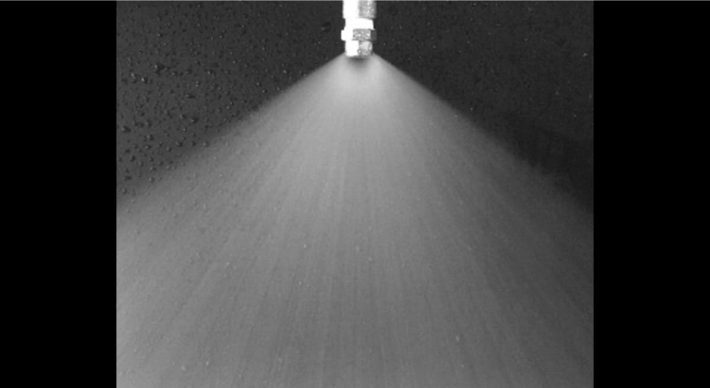

• Flat Spray Nozzles

VVP+AS

Mean droplet diameter: 400–550 μm
Spray capacity:9.87–28 L/min
Spray angle:115°
Material:S303, S304

• Clog Resistant
• Compact
• High-viscosity Liquid Spray

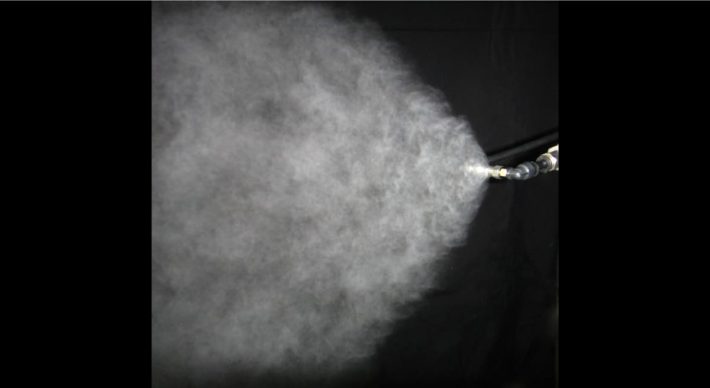

• Low Flow Rate, Wide-angle Flat Spray Nozzles

YYA

Mean droplet diameter:2.2–10.0 μm
Spray capacity:15–30 L/hr
Spray angle:80°
Material:S303
