• Lengthening Repair Intervals for Refractories

Kiln Shell Cooling System

• ยืดอายุการใช้งานของเปลือกเตาผา
• รับประกันการทำงานของเตาเผาในระยะยาวได้อย่างมีประสิทธิภาพ
• รักษาการเคลือบภายในให้คงตัว
• ควบคุมอุณหภูมิของเตาเผา

• Precision Guarantee

• Full Cone Spray Nozzles (Clog-resistant)

AJP

Spray capacity:2.00–250 L/min (0.2 MPa)
Spray angle:75–90°
Material:S303, S304, SCS13
Free passage diameter:1.6–22.3 mm

• การสั่งทำ
• Precision Guarantee

• Full Cone Spray Nozzles (Alumina Ceramic)

AJP-AL92

Spray capacity:18.0–250 L/min (0.2 MPa)
Spray angle:85–90°
Material:92％ Alumina
Free passage diameter:5.1–21.3 mm

• การสั่งทำ
• Clog Resistant

• Fine Fog, Flat Spray Nozzles (Large Capacity)

BAVV

Mean droplet diameter:30–100 μm
Spray capacity:10–200 L/hr
Spray angle:60°
Material:S303, S304

• สินค้าสั่งทำ
• Precision Guarantee

• Wide-angle Full Cone Spray Nozzles

BBXP

Spray capacity:1.50–1200 L/min
Spray angle:120°
Material:S303, S316
Free passage diameter:0.7–21.7 mm

• Spray Control

• Fine Fog, Full Cone Spray Nozzles

BIMJ

Mean droplet diameter:20-100 μm
Spray capacity:1.0–107 L/hr
Spray angle:70°, 20°
Material:S303

• Spray Control

• Fine Fog, Hollow Cone Spray Nozzles

BIMK

Mean droplet diameter:20-100 μm
Spray capacity:2.0–107 L/hr
Spray angle:60°
Material:S303

• Spray Control
• Suction

• Fine Fog, Hollow Cone Spray Nozzles (Suction Type)

BIMK.S

Mean droplet diameter:20-30 μm
Spray capacity:1.4–5.5 L/hr
Spray angle:60°
Material:S303

• Spray Control

• Spray Gun Unit with BIM Nozzles

BIMV

Mean droplet diameter:20-100 μm
Spray capacity:1.0–107 L/hr
Spray angle:45°, 80°, 110°
Material:S303

• Spray Control
• Suction

• Fine Fog, Flat Spray Nozzles (Suction Type)

BIMV.S

Mean droplet diameter:20-30 μm
Spray capacity:0.5–5.5 L/hr
Spray angle:80°
Material:S303

• Spray Gun Unit with BIM Nozzles

BIM-GUN

• Compact
• Spray Control

• Fine Fog, Flat Spray Nozzles

CBIMJ

Mean droplet diameter:20-100 μm
Spray capacity:0.25–38.5 L/hr
Spray angle:20°
Material:S303

• Compact
• Spray Control

• Fine Fog, Hollow Cone Spray Nozzles

CBIMK

Mean droplet diameter:20-100 μm
Spray capacity:2.0–38.5 L/hr
Spray angle:60°
Material:S303

• Compact
• Spray Control
• Suction

• Fine Fog, Hollow Cone Spray Nozzles (Suction Type)

CBIMK.S

Mean droplet diameter:20-30 μm
Spray capacity:1.4–5.5 L/hr
Spray angle:60°
Material:S303

• Compact
• Spray Control

• Fine Fog, Flat Spray Nozzles

CBIMV

Mean droplet diameter:20-100 μm
Spray capacity:0.25–38.5 L/hr
Spray angle:45°, 80°, 110°
Material:S303

• Compact
• Spray Control
• Suction

• Fine Fog, Flat Spray Nozzles (Suction Type)

CBIMV.S

Mean droplet diameter:20-30 μm
Spray capacity:0.1–5.5 L/hr
Spray angle:80°
Material:S303

• Precision Guarantee

• Flat Spray Nozzles (Coin-shaped)

CVVP

Operating pressure:0.05-2 MPa
Spray capacity:1.00–8.00 L/min (0.3 MPa)
Spray angle:65°, 80°, 90°
Material:S303

• การสั่งทำ
• Clog Resistant

• Ultra-thick Even Flat Spray Nozzles

DDA

Mean droplet diameter:15–200 μm
Spray capacity:0.14–57.3 L/min
Spray angle:75°, 80°, 100°, 110°, or 125°
Material:S303, S304

• การสั่งทำ
• Precision Guarantee

• Ultra-Thick Even Flat Spray Nozzles

DDRP

Operating pressure:0.05-2 MPa
Spray capacity:5.00-100 L/min (0.3 MPa)
Spray angle:90°, 115°
Material:S303

• Thick Even Flat Spray Nozzles

DDRP+AS

Mean droplet diameter:430–488 μm
Spray capacity:19–24.7 L/min
Spray angle:90°, 115°
Material:S303, S304

• Clog Resistant

• Even Flat Spray Nozzles

DOVEA

Mean droplet diameter:50–200 μm
Spray capacity:0.42–40 L/min
Spray angle:55°, 70°, 95°, or 110°
Material:S303, S304

• Clog Resistant

• Flat Spray Nozzles

DOVVA-G

Mean droplet diameter:80–120 μm
Spray capacity:1.0–50 L/min
Spray angle:55°, 70°
Material:S316L, S304

• สินค้าสั่งทำ
• Ceramic Orifice
• Precision Guarantee

• Descaling Nozzles

DSP

Operating pressure:3-20 MPa
Spray capacity:5.59–86.5 L/min (5 MPa)
Spray angle:12°, 15°
Material:S303

• การสั่งทำ
• Precision Guarantee

• Even Flat Spray Nozzles

EJVV

Operating pressure:0.25-2 MPa
Spray capacity:2.00-12.0 L/min (0.3 MPa)
Spray angle:80°, 90°
Material:S303, B

• Large Capacity Fine Fog Spray Nozzles (Large Spray Capacity)

GSIMⅡ

Mean droplet diameter:30–80 μm
Spray capacity:15–2,000 L/hr
Spray angle:20°, 60°
Material:S316L, S303

• Downstream Fogging
• Upstream Fogging
• Wet Compression

• Recovering Diminished Power Output

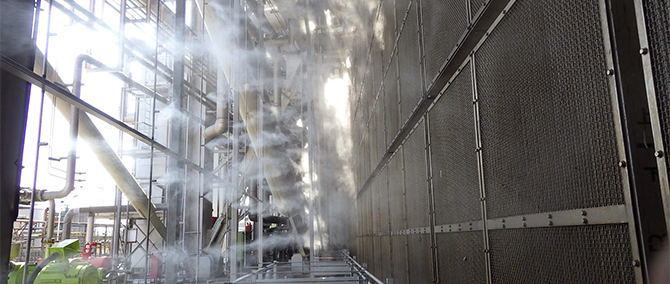

GT Inlet Air Cooling System

• คืนกำลังไฟฟ้าในช่วงฤดูร้อน
• ระบบนี้สามารถเลือกใช้ได้ว่าจะพ่นแบบเปียกในตอนช่วงต้นหรือเกือบจะสิ้นสุดการพ่น
• สามารถสร้างการระเหยได้หากต้องการ แต่ก็มีค่าใช้จ่ายที่เพิ่มขึ้นด้วย

• Precision Guarantee
• Quick-detachable

• Full Cone Spray Nozzles (Quick-detachable)

INJJX-SS

Spray capacity:1.00–6.00 L/min (0.2 MPa)
Spray angle:65°–75°
Material:S303
Free passage diameter:0.7–1.7 mm

• Precision Guarantee
• Quick-detachable

• Flat Spray Nozzles (Quick-detachable)

INVV-SS (Stainless Steel)

Operating pressure:0.05-2 MPa
Spray capacity:1.50–20.0 L/min (0.3 MPa)
Spray angle:15°, 25°, 40°, 50°, 65°, 80°, 90°, 115°
Material:S303

• Ceramic Orifice
• Precision Guarantee

• Full Cone Spray Nozzles

J

Spray capacity:0.09–1.40 L/min
Spray angle:70°
Material:S303
Free passage diameter:0.15–0.9 mm

• Clog Resistant

• Full Cone Spray Nozzles

JJA

Mean droplet diameter:150–650 μm
Spray capacity:1.1–24.0 L/min
Material:S316L, S304

• การสั่งทำ

• Full Cone Spray Nozzles (Three-piece Structure)

JJX

Spray capacity:6.5–22.0 L/min (0.5 MPa)
Spray angle:67°, 90°, 110°
Material:B

• สินค้าสั่งทำ
• Precision Guarantee

• Full Cone Spray Nozzles

JJXP

Spray capacity:0.50–1200 L/min (0.2 MPa)
Spray angle:55–105°
Material:S303, S316
Free passage diameter:0.4–20.0 mm

• Steam

• Steam-driven Spray Nozzles

JOKIJet

Spray capacity:10–1,200 L/hr
Material:S316L, S304

• การสั่งทำ
• Ceramic Orifice
• Precision Guarantee

• Full Cone Spray Nozzles

JUP

Spray capacity:3.00-90.0 L/min (0.2 MPa)
Spray angle:60-85°
Material:S303, S316
Free passage diameter:1.2-5.0 mm

• Ceramic Orifice
• Precision Guarantee

• Hollow Cone Spray Nozzles (Three-piece Structure)

K

Spray capacity:0.06-1.80 L/min (0.3 MPa)
Mean droplet diameter:80-380 μm
Material:S303
Free passage diameter:0.4-1.7 mm

• Ceramic Orifice
• Precision Guarantee

• Hollow Cone Spray Nozzles

KB

Spray capacity:2.00–107 L/hr (0.7 MPa)
Mean droplet diameter:45–210 μm
Material:S303, B
Free passage diameter:0.15–0.60 mm

• Ceramic Orifice
• Precision Guarantee

• Hollow Cone Spray Nozzles

KBN

Spray capacity:2.00–7.25 L/hr (0.3 MPa)
Mean droplet diameter:35–60 μm
Material:S303
Free passage diameter:0.2–0.4 mm

• การสั่งทำ
• Ceramic Orifice
• Precision Guarantee

• Hollow Cone Spray Nozzles (Three-piece Structure)

KD

Spray capacity:0.30–3.94 L/min (0.3 MPa)
Spray angle:70–97°
Material:S303
Free passage diameter:0.7–1.8 mm

• สินค้าสั่งทำ
• Precision Guarantee

• Hollow Cone Spray Nozzles

KKBP

Spray capacity:0.50–2.00 L/min (0.3 MPa)
Spray angle:53–68°
Material:S303
Free passage diameter:1.0–1.8 mm

• Precision Guarantee
• Self-cleaning

• Flat Spray Nozzles (with Self-cleaning Function)

MOMOJet

Operating pressure:0.2-2 MPa
Operating pressure:2.00–6.00 L/min (0.3 MPa)
Spray capacity:80°
Spray angle:S303

• Precision Guarantee

• Narrow-angle Full Cone Spray Nozzles

NJJP

Spray capacity:6.00–20.0 L/min (0.3 MPa)
Spray angle:15°, 30°
Material:S303
Free passage diameter:2.3–4.4 mm

• Precision Guarantee

• Off-center Even Flat Spray Nozzles

OVVEP

Operating pressure:0.05-2 MPa
Operating pressure:20.0-30.0 L/min (0.3 MPa)
Spray capacity:45°, 60°
Spray angle:S303

• การสั่งทำ
• Water Curtain

• Slit Nozzles

PSN

Spray capacity:8.0–28.0 L/min

• การสั่งทำ
• Compact
• Spray Control

• Ultra-compact, Low Flow Rate Full Cone Spray Nozzles

SCBIMJ

Mean droplet diameter:20-100 μm
Spray capacity:0.25–4.0 L/hr
Spray angle:20°
Material:S303

• การสั่งทำ
• Compact
• Spray Control

• Ultra-compact, Low Flow Rate Flat Spray Nozzles

SCBIMV

Mean droplet diameter:20-100 μm
Spray capacity:0.25–4.0 L/hr
Spray angle:45°, 80°, 110°
Material:S303

• การสั่งทำ
• Compact
• Spray Control
• Suction

• Ultra-compact, Low Flow Rate Flat Spray Nozzles (Suction Type)

SCBIMV.S

Mean droplet diameter:20-30 μm
Spray capacity:0.1–0.74 L/hr
Spray angle:80°
Material:S303

• Intermittent Pulse Spray
• Spray Control

• Pulse Spray Nozzles

SETO-SD

Mean droplet diameter:15–25 μm
Spray capacity:0.9–26.4 L/hr

• Clog Resistant
• High-viscosity Liquid Spray

• Full Cone Nozzles for Spraying Viscous Liquid

SETOJet

Mean droplet diameter:20–60 μm
Spray capacity:2.0–111 L/hr
Material:S303

• Clog Resistant
• Compact
• High-viscosity Liquid Spray

• Full Cone Nozzles for Spraying Viscous Liquid

SETO-SP

Mean droplet diameter:10–50 μm
Spray capacity:1.5–5.1 L/hr
Material:S303

• Clog Resistant
• Compact
• High-viscosity Liquid Spray

• Anti-dripping Flat Spray Nozzles

SETOV

Mean droplet diameter:15–40 μm
Spray capacity:1.7–10.6 L/hr
Material:S303
