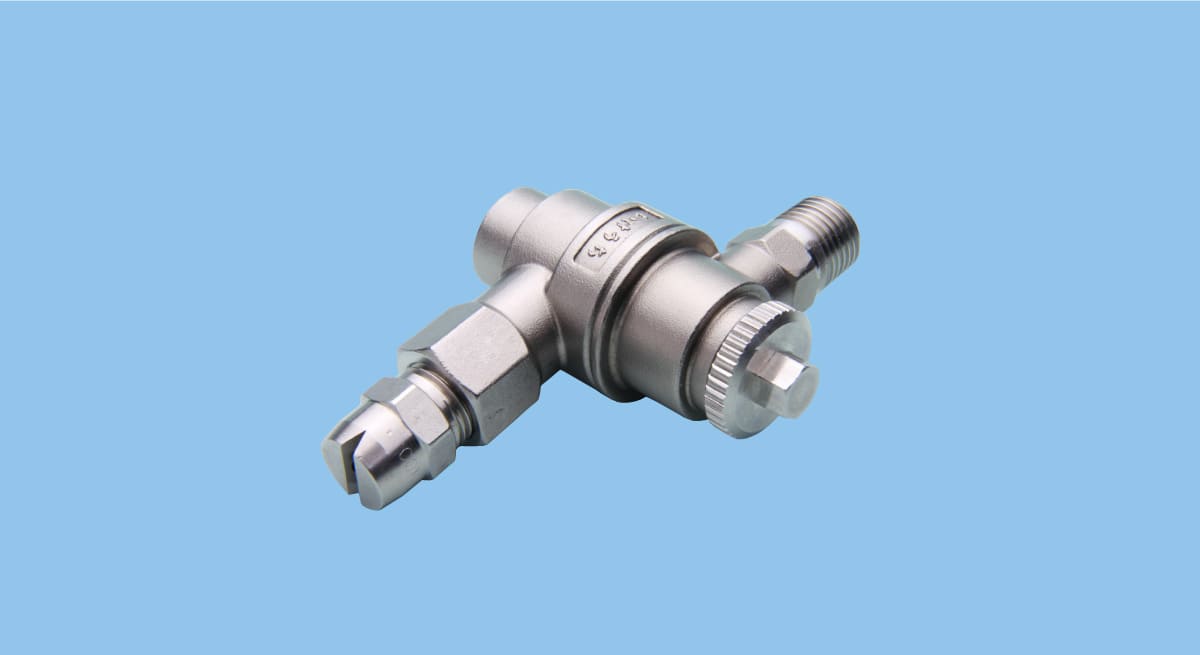

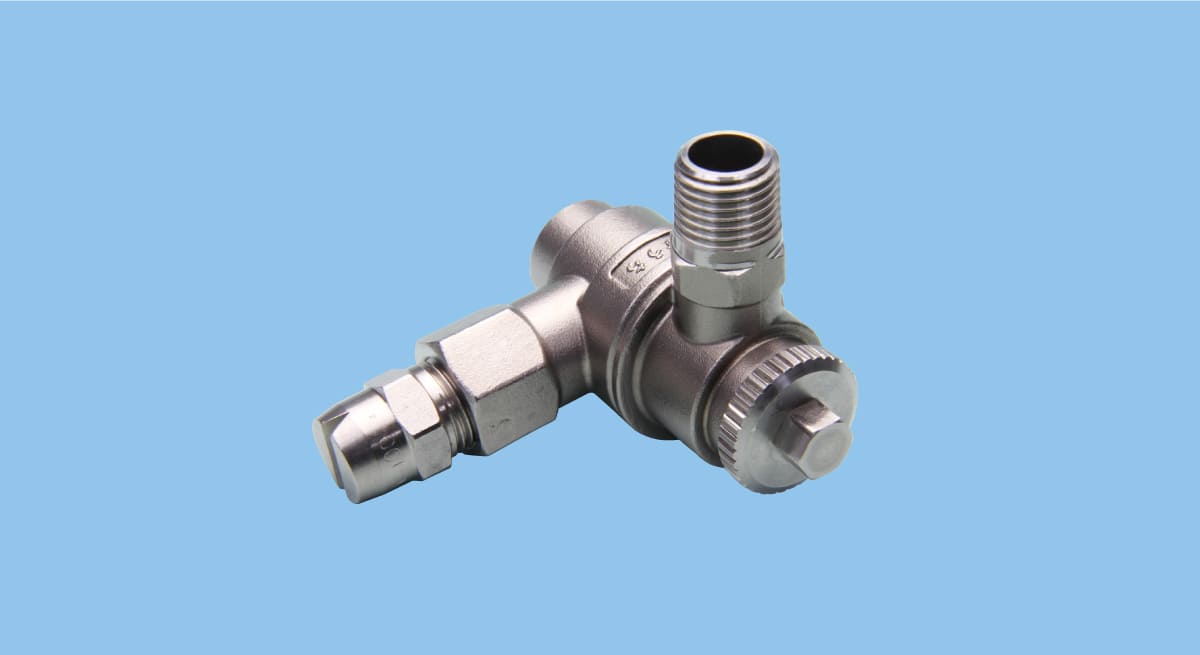

Universal Joints for Connecting Spray Nozzles
WUT
ข้อต่อทรงกลมสำหรับต่อเข้ากับหัวฉีดสเปรย์ สามารถปรับทิศทางในการพ่นได้ 360 องศา
Specs
| Liquid Inlet Thread Size | R1/4 |
|---|---|
| Main Material | SCS13 |
| Max. Operating Pressure | 3 MPa |
| Max. Temperature | 90℃ |
* The bolt may loosen because of vibration if it is screwed in by hand. Tighten with a torque-wrench at 6 N m.
* Maximum working pressure is 3 MPa.
* When used with a solid stream jet nozzle, slightly turbulent flow occurs. Contact us for details.
Resources for Download
• 360ﾟ rotatable to adjust spray direction.
• Includes the rotating lock to keep the nozzle direction fixed.
• Stabilizing function suppresses internal turbulent flow.
• Safe design prevents parts from dropping off when the lock is released.
Applications
- Where the adjustments of spray directions are required after piping installation.
- Where large changes in spray direction are required depending on nozzle application.
Structure
- Adaptor: Die-cast stainless steel equivalent to S304 (SCS13)
- Bolt: S303
- E-ring: S304
- O-ring: NBR
- (In our material code, S304 represents stainless steel 304 and S303 represents stainless steel 303.)
