3D Rotational Tank Cleaning Nozzles
JA3 (JET ATTACKER / Low-pressure Use)
หัวฉีดรุ่น JET ATTACKER มีการหมุนแบบ 3 ทิศทาง ที่สามารถทำความสะอาดได้ 360 องศา
หัวฉีดหมุนได้ด้วยแรงจากของเหลวสำหรับทำความสะอาดเท่านั้น จึงไม่จำเป็นต้องใช้แรงดันจากแหล่งอื่น
Specs
| Liquid Inlet Thread Size | Rc1/2 |
|---|---|
| Weight | 1.7kg |
| Main Material | S304 |
| Max. Temperature | 60℃ |
| Reach Distance of Spray | approx. 2–7m |
| Number of Nozzles Attached | 2個 |
| Operating Pressure for Liquid | 0.3–1.2 MPa |
| Spray Capacity (Flow-rate) | 24–82 L/min *1 |
*1) Spray flow rate in the above operating pressure range is for reference only. See the flow-rate diagram and chart for more details.
*) Nozzle Mounting Direction
・Can be installed downward within 45° of the vertical center
・The data in this catalog are the values from top of the tank installations.
Resources for Download

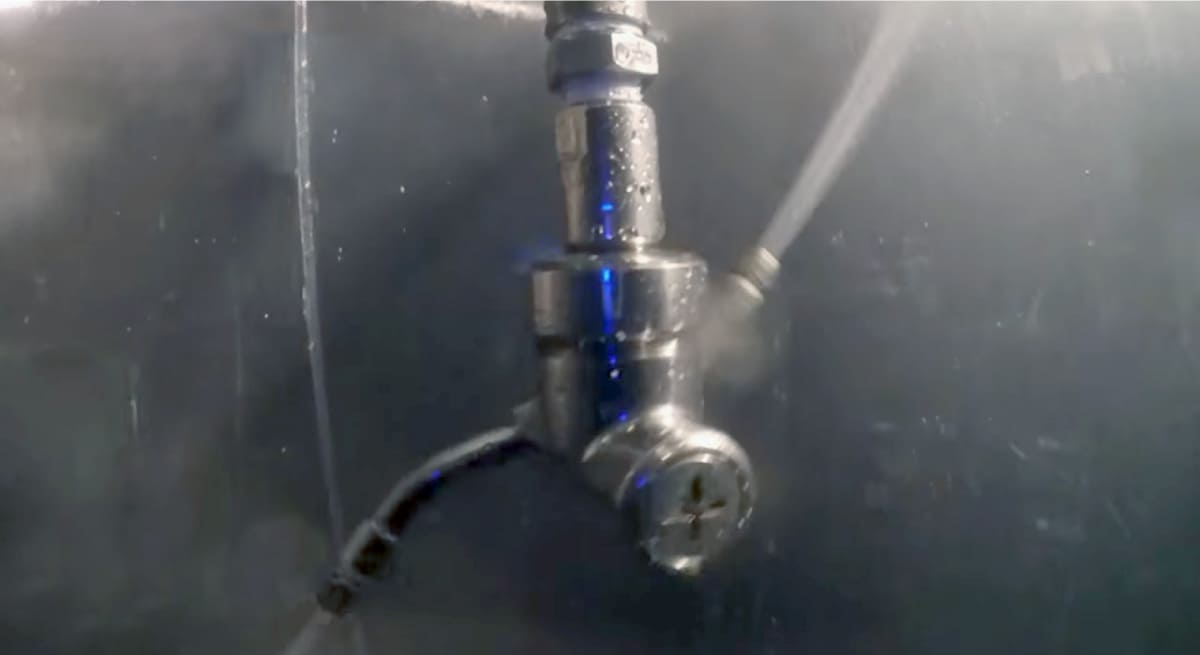

• Three-dimensional rotating solid stream jets powerfully clean the inside of a tank.
• No external power is needed as rotation is driven solely by the flow of the cleaning liquid.
• Simple structure, no turbine or reduction gears.
• Compact and lightweight, at less than 2 kg, with a maximum arm diameter of 240 mm, ensuring reliable cleaning.
• Available for low- and medium-pressure use. The JA3-2L series uses 0.3–1.2 MPa to clean with spray flow volume and the JA3-2S/4S series uses 1.0–3.0 MPa to clean with spray pressure.

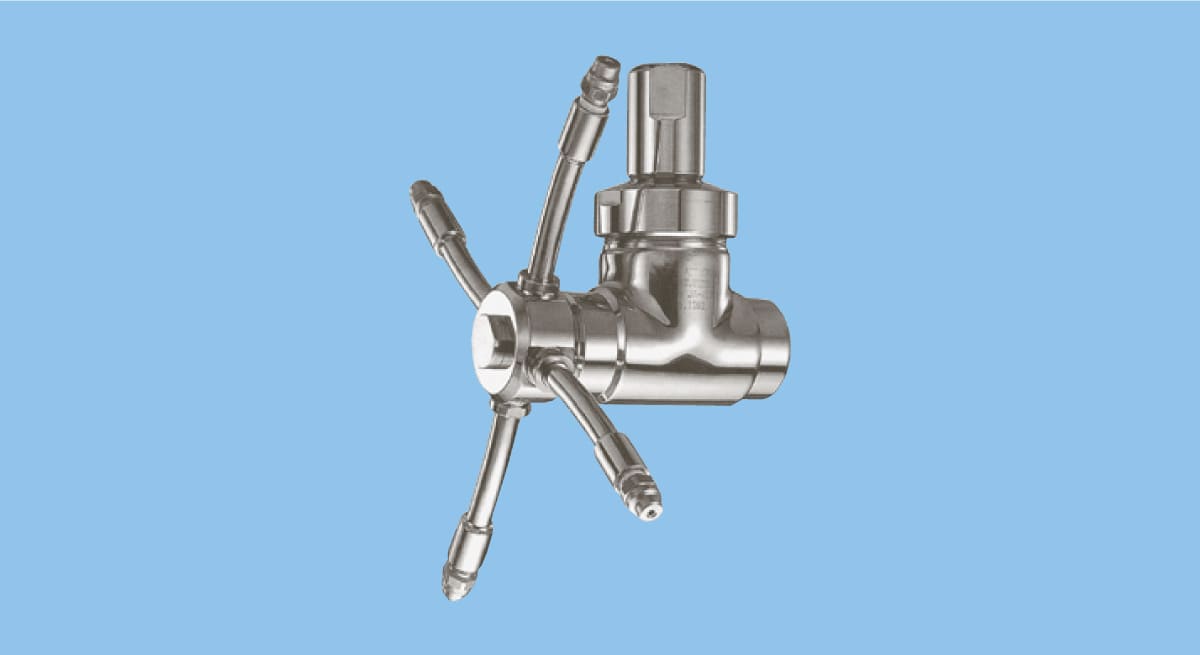

• The JA3-2L/2S series is equipped with two nozzles, and the JA3-4S series with four nozzles.
• Easy to install, reducing equipment costs.
Applications
- For cleaning hard-to-remove dirt:
- Removing tough, sticky and stubborn dirt
- Cleaning of tanks for brewing, fermentation, distillation and storage, cleaning of transport containers
Industries where this nozzle is used
- Chemical
- Paper & Pulp
- Printing
- Food
- Medicine
- Welfare
