3D Rotational Tank Cleaning Nozzles JA3 (JET ATTACKER)
หัวฉีดรุ่น JET ATTACKER มีการหมุนแบบ 3 ทิศทาง ที่สามารถทำความสะ…
- JET ATTACKER
- การทำความสะอาด
2D Rotational Tank Cleaning Nozzles
JA2 (JET ATTACKER)
หัวฉีดรุ่น JET ATTACKER ทำความสะอาดสายพานลำเลียงแบบหมุนได้สองทิศทาง สามารถทำความสะอาดพื้นผิวด้านล่างได้
หัวฉีดหมุนได้ด้วยแรงจากของเหลวสำหรับทำความสะอาดเท่านั้น จึงไม่จำเป็นต้องใช้แรงดันจากแหล่งอื่น
Specs
| Liquid Inlet Thread Size | Rc1/2 |
|---|---|
| Weight | JA2-2: 1.9 kg, JA2-4: 2.0 kg |
| Main Material | S304 |
| Max. Temperature | 60℃ |
| Number of Nozzles Attached | 2 nozzles, 4 nozzles |
| Operating Pressure for Liquid | 0.3–2.0 MPa |
| Spray Capacity (Flow-rate) | 14–253.0 L/min *1 |
*1) Estimated spray flow rate for JA2 series having solid stream nozzles with an orifice diameter of 2.5 mm, 3.5 mm, or 5.4 mm at the above range of operating pressure. See the flow-rate diagram and chart for details.
*) Nozzle Mounting Direction
• Can be installed in any direction 360°
• The data in this catalog are the values from top of the tank installations.
Resources for Download
• The solid stream jet provides excellent cleaning performance. To achieve a wider spray coverage, a flat spray nozzle can be installed.
• No external power is needed as rotation is driven solely by the flow of the cleaning liquid.
• A variety of arm configurations are available as special order to fit specific cleaning needs, i.e. spot cleaning or full coverage cleaning.

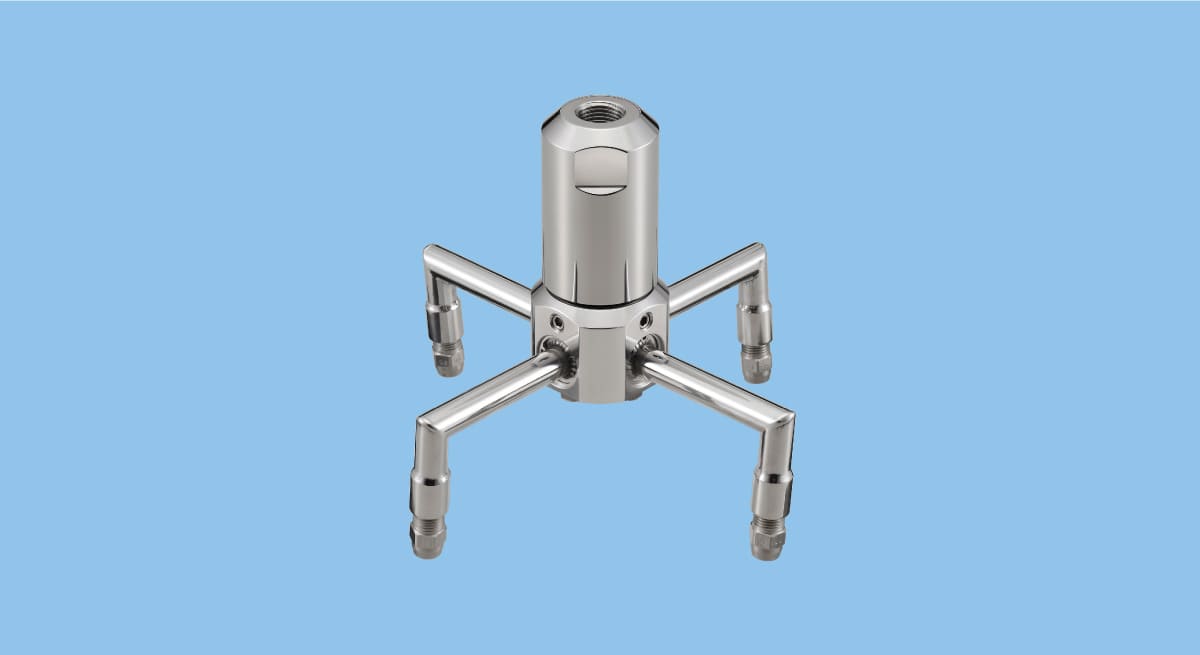

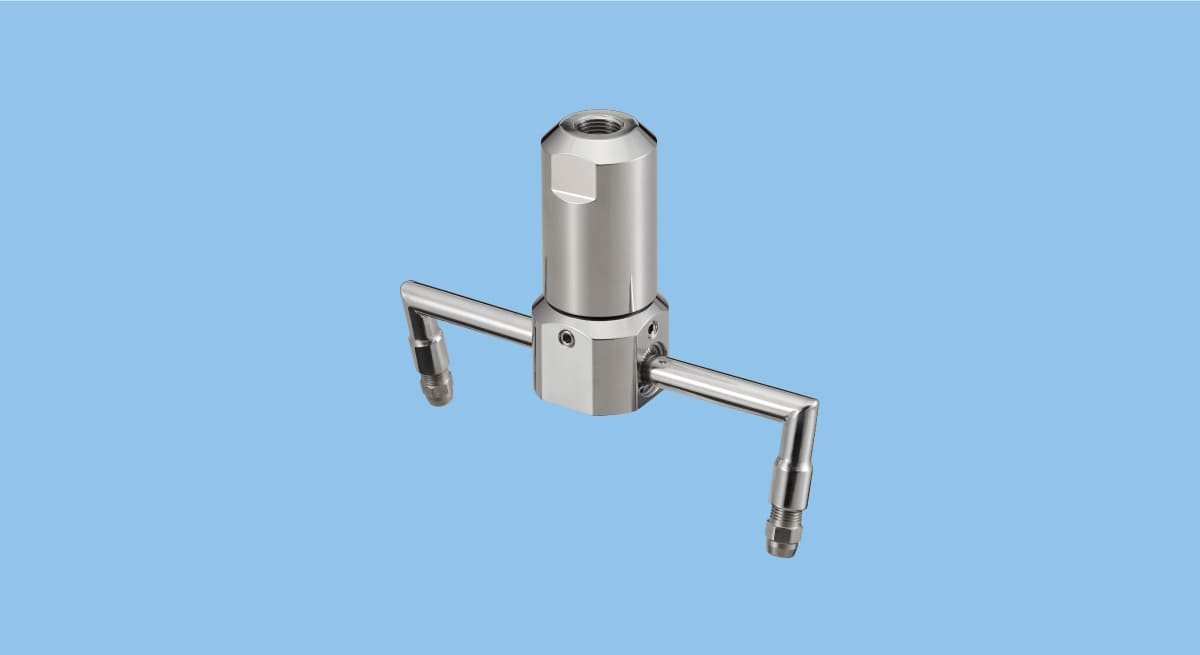

• The JA2-2 series is equipped with two nozzles, and the JA2-4 series with four nozzles.
• Arm length can be tailored to your needs, in addition to the standard length of 200 or 300 mm.
Applications
- For cleaning hard-to-remove dirt:
- Removing tough, sticky and stubborn dirt
- Cleaning of conveyor belts
Industries where this nozzle is used
- Chemical
- Paper & Pulp
- Printing
- Food & beverages
- Medical
