3D Rotational Tank Cleaning Nozzles
RJ (ROTARY JETTER)
รุ่น ROTARY JETTER : หัวฉีดทำความสะอาดถังที่มีการหมุนสามทิศทางทำให้สามารถทำความสะอาดได้ 360 องศา
การหมุนนี้จะฉีดของเหลวออกมาด้วยแรงดันสูงและสามารถใช้งานที่มีอุณหภูมิสูงได้
Specs
| Liquid Inlet Thread Size | Rc1/2–Rc1*1/2 |
|---|---|
| Weight | 0.62–2.8kg |
| Main Material | S304 |
| Max. Temperature | 80℃ *2 |
| Reach Distance of Spray | About 7–12m (RADIUS) |
| Operating Pressure for Liquid | 0.2–1.0 MPa *3 |
| Spray Capacity (Flow-rate) | 25.6–246 L/min *4 |
*1) 1/2F&1F RJ: S304, SCS14, UPE, PTFE, PEEK
1*1/2F RJ: S304, SCS13, UPE, PTFE, PEEK
*2) A heat-resistant type, suitable for use over 80°C, is also available as a custom-made option. Please contact us for more details.
*3) 1/2F RJ3-2L: 0.2–1.0 MPa (30–145 psi)
1F RJ3-2L: 0.3–1.0 MPa (45–145 psi)
1*1/2F RJ3-2L/4L: 0.3–0.8 MPa (45–115 psi)
*4) Spray flow rate in the above operating pressure range is for reference only. See the flow-rate diagram and chart for more details.
*) Nozzle Mounting Direction
• Can be installed downward or sideways (within 90° of the vertical center)
• The data in this catalog are the values from top of the tank installations.
Resources for Download

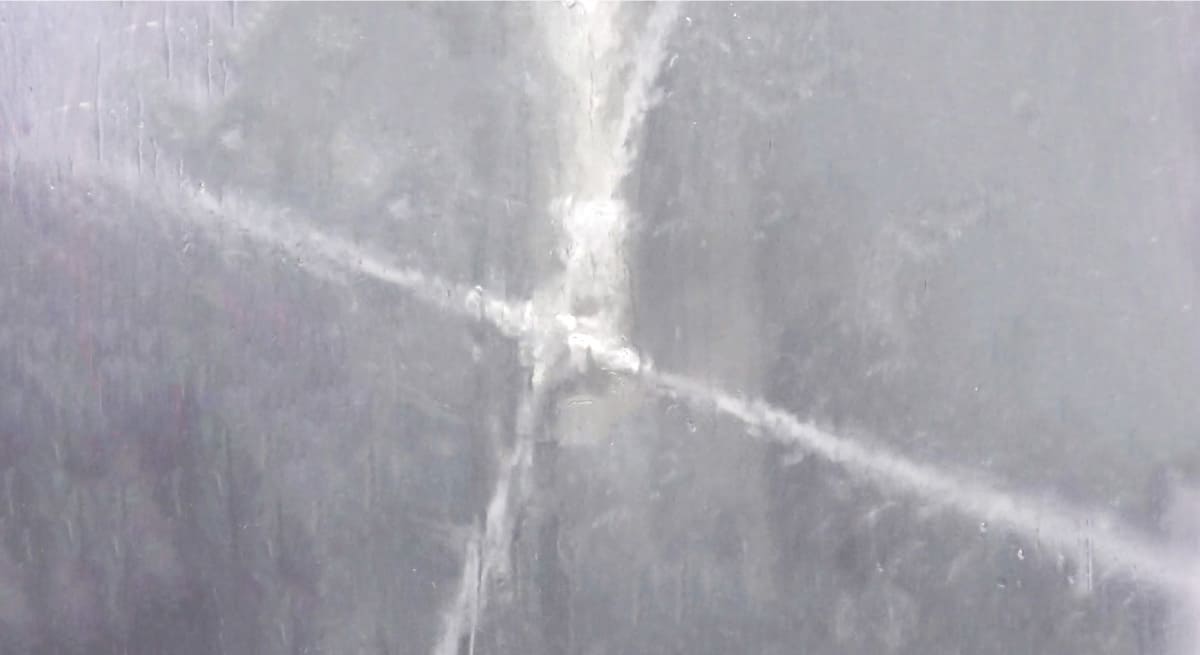

• Powerful 3D rotational solid stream nozzles cleaning the inside of tanks.
• No external power is needed as rotation is driven solely by the flow of the cleaning liquid.
• Compact design allows for easy installation even if the inlet is small.
• Insertion and removal is easy since the rotating nozzle is not locked into place.

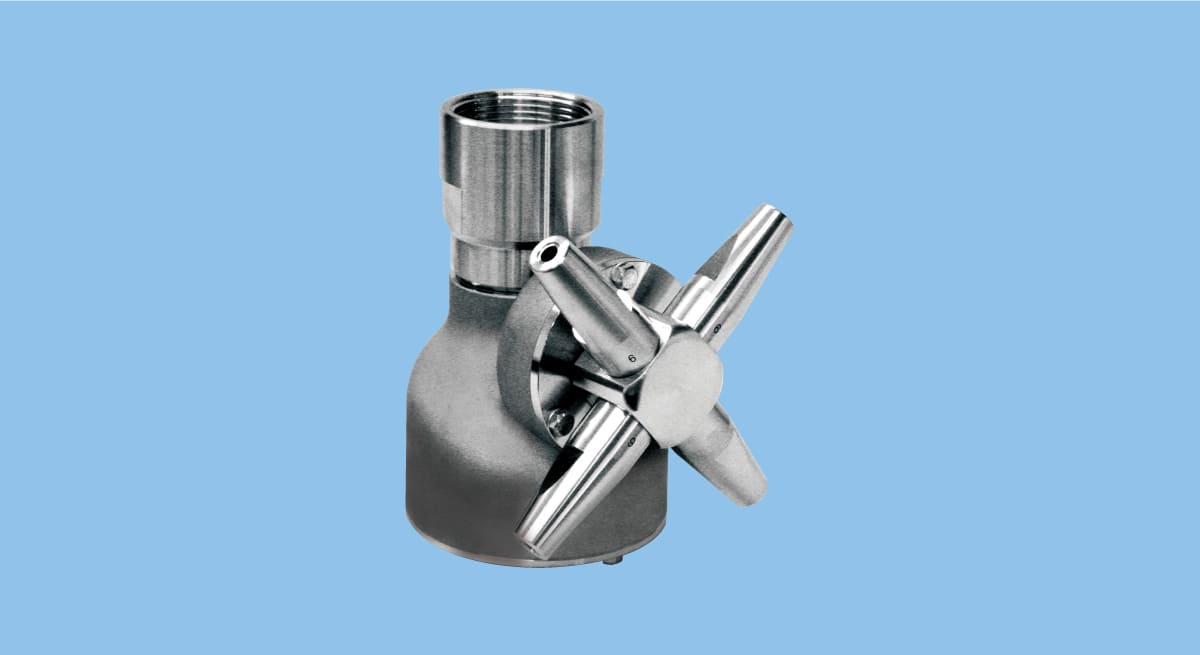

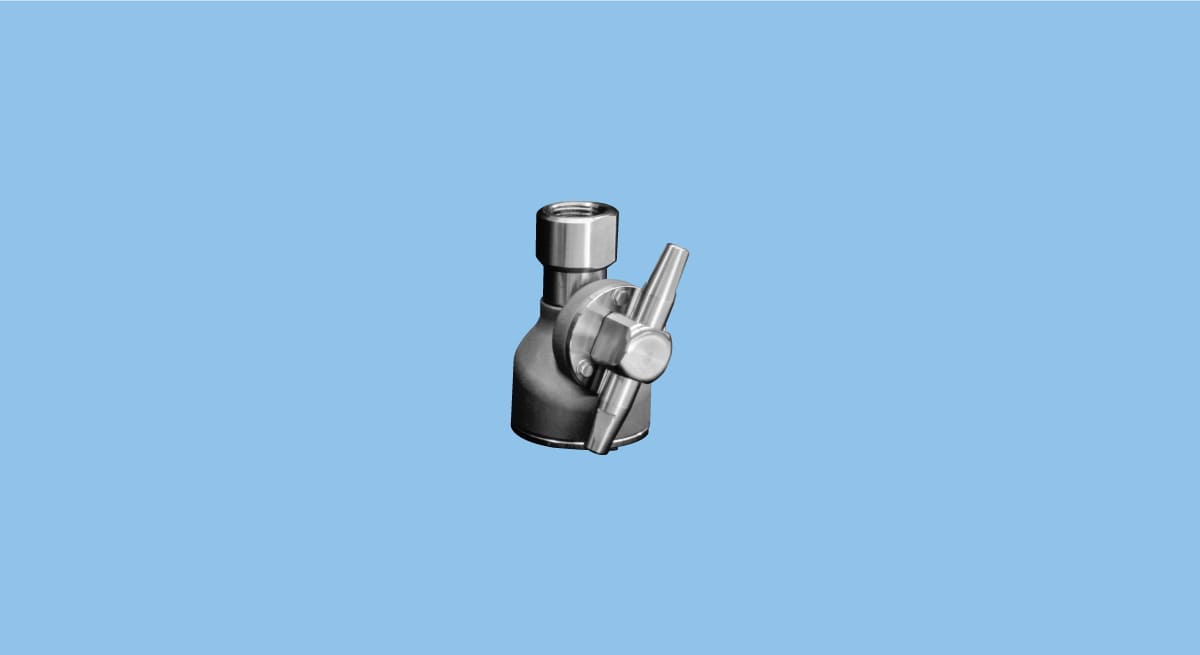

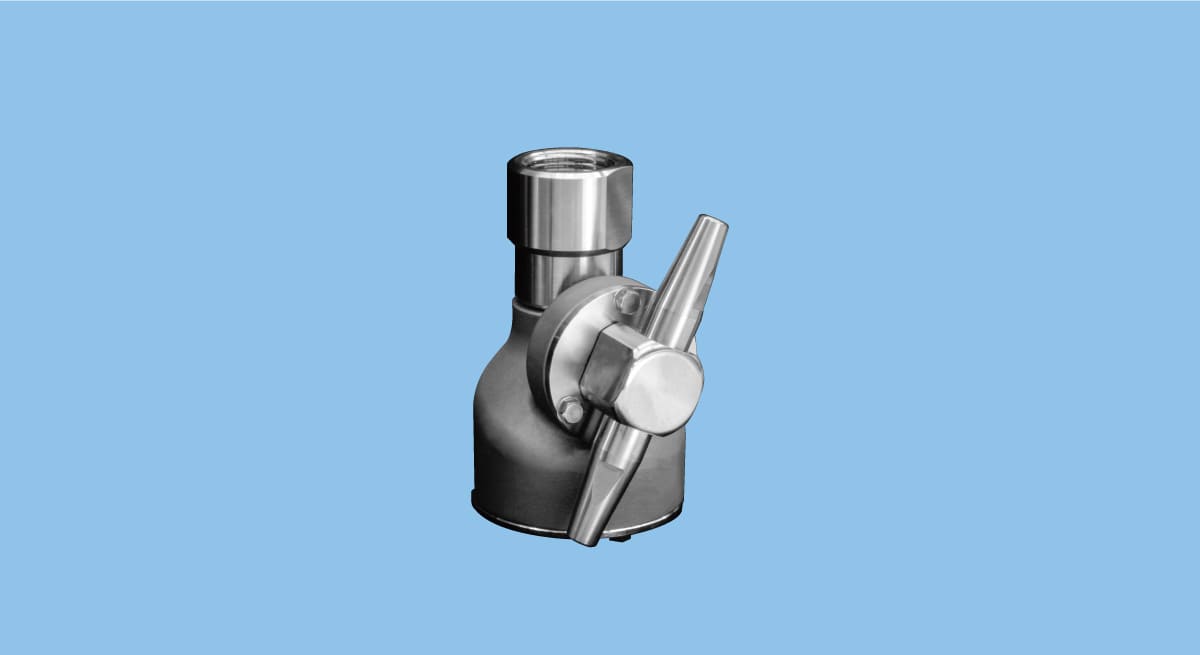

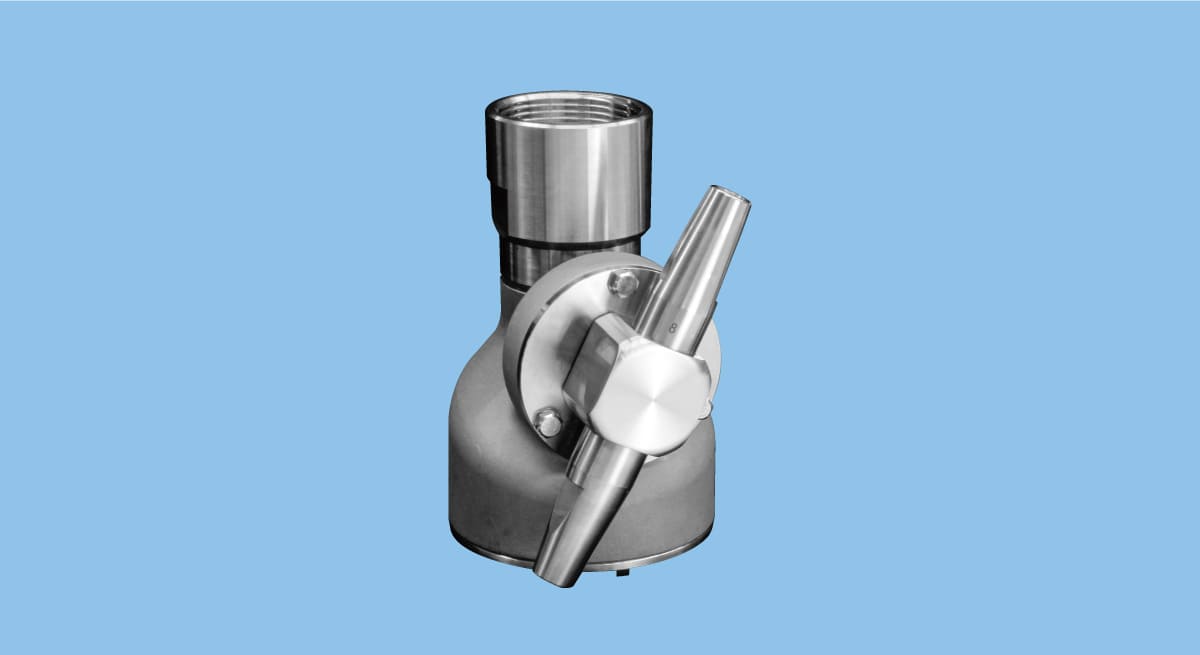

• The RJ3-2L is equipped with two nozzles, and the RJ3-4L with four nozzles.
• A customized option: The submerged type can be left in place during the normal operational use of the tank without affecting its performance during cleaning. For more details, please contact us.
Applications
- For cleaning hard-to-remove dirt:
- Removing tough, sticky and stubborn dirt
- Cleaning of food and beverage tanks
- Cleaning inside the chests (material tanks of paper making)
- Cleaning of reactor vessels in chemical plants
Industries where this nozzle is used
- Chemical
- Paper & Pulp
- Printing
- Food
- Medicine
- Welfare
