3D Rotational Tank Cleaning Nozzles RJ (ROTARY JETTER)
รุ่น ROTARY JETTER : หัวฉีดทำความสะอาดถังที่มีการหมุนสามทิศทางท…
- การสั่งทำ
- 360°
- ROTARY JETTER
- การทำความสะอาด
3D Rotational Tank Cleaning Nozzles

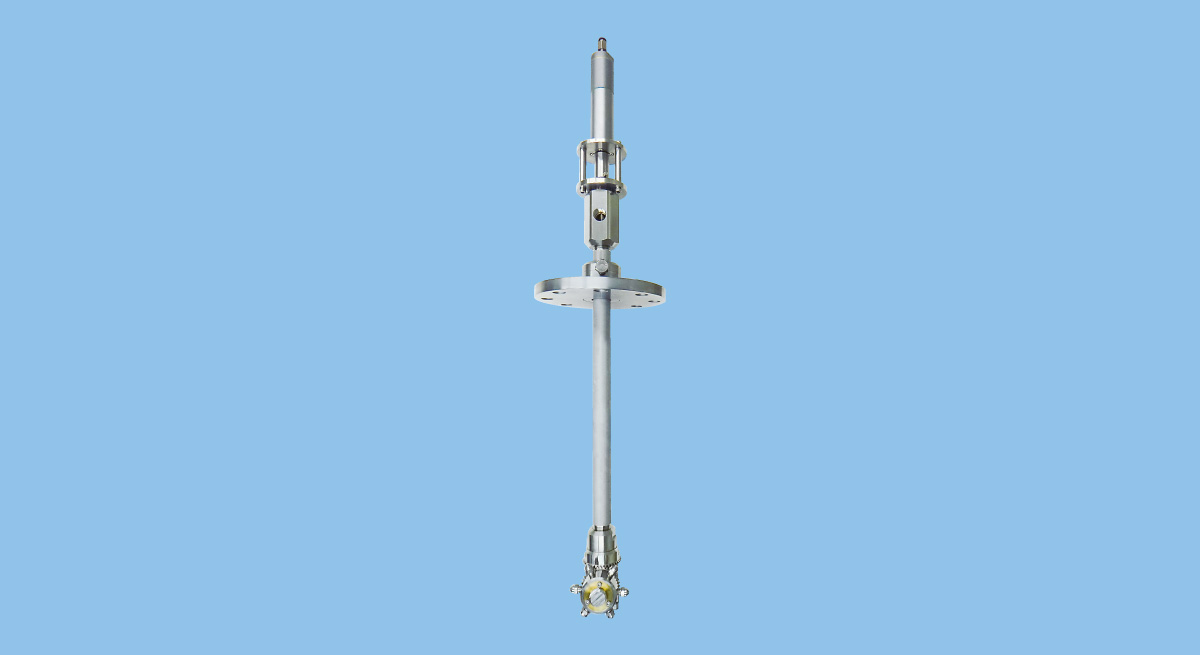

RJ3-MD(Air Motor)
รุ่น ROTARY JETTER : หัวฉีดทำความสะอาดถังที่มีการหมุนสามทิศทางทำให้สามารถทำความสะอาดได้ 360 องศา
การหมุนนี้จะฉีดของเหลวออกมาด้วยแรงดันสูงและสามารถใช้กับงานที่ต้องการอุณหภูมิสูงได้
Specs
| Liquid Inlet Thread Size | Rc1/2 |
|---|---|
| Air Inlet Thread Size | Rc1/4 |
| Weight | 11–16kg *1 |
| Main Material | S304 |
| Max. Temperature | 80℃ |
| Reach Distance of Spray | Approx. 1.5–2.5m (RADIUS) *2 |
| Number of Nozzles Attached | 2, 3, or 6 |
| Operating Pressure for Liquid | 0.3–15 MPa |
| Spray Capacity (Flow-rate) | 4.2–103.7 L/min *3 |
*1) Without flange.
*2) Spray reach distance varies depending on the number of nozzles attached and the nozzle orifice diameter. Contact us for details.
*3) Spray flow rate in the above operating pressure range is for reference only. See the flow-rate diagram and chart for more details.
• 2 nozzles: 4.2–80.3 L/min
• 3 nozzles: 6.3–98.0 L/min
• 6 nozzles: 6.4–103.7 L/min
*) There is no ON/OFF switch on the product. Please control the operation by turning ON/OFF the supply of compressed air.
*) Nozzle Mounting Direction
• Can be installed downward or sideways (within 90° of the vertical center)
• The data in this catalog are the values from top of the tank installations.
Resources for Download
• 3D rotation solid stream jet powerfully cleans the inside of a tank.
• Stable low-speed rotation with motor maximizes contact time between cleaning surface and cleaning liquid for effective cleaning.
• Models come with two, three, or six nozzles for precision cleaning.
• Heat-resistant up to 80 deg. C (176 deg. F).
• Compressed air drives the motor.
• Stainless steel air motor requires no oil to operate.
Applications
- Removing tough, sticky and stubborn dirt
- Cleaning of reactor vessels in chemical plants
Industries where this nozzle is used
- Chemical
- Paper & Pulp
- Printing
- Food
- Medicine
