Fine Fog, Full Cone Spray Nozzles
BIMJ

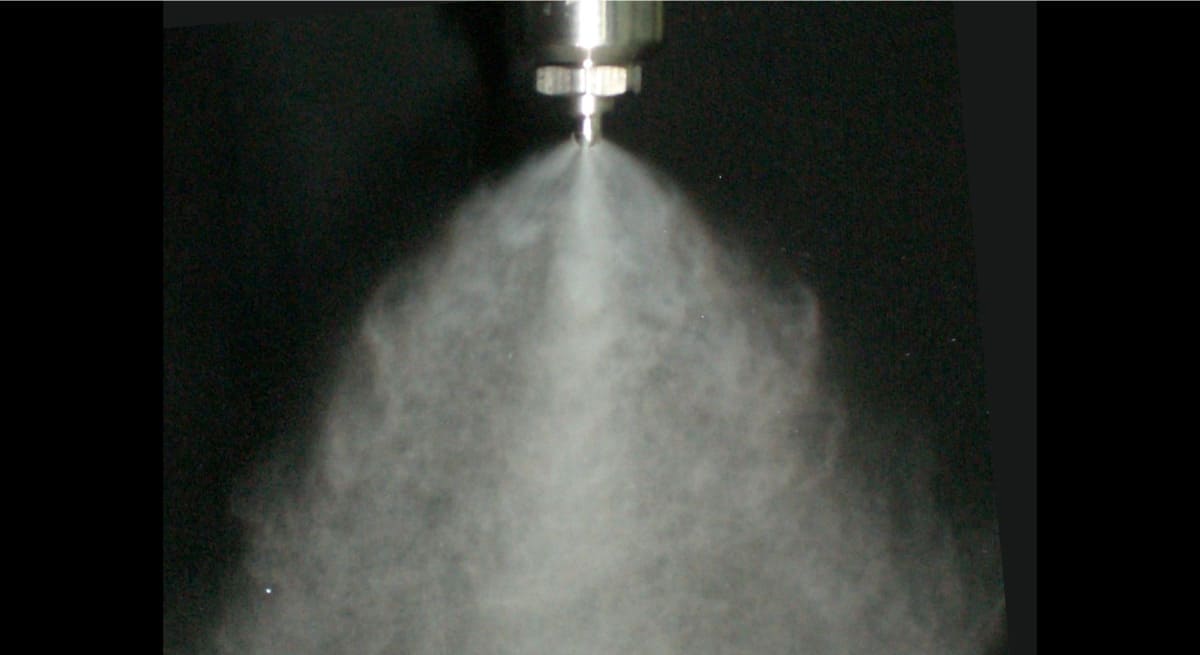

Pneumatic full cone spray nozzles with a wide adjustable range of flow rates, producing a fine fog with a mean droplet diameter of 100 μm or less.

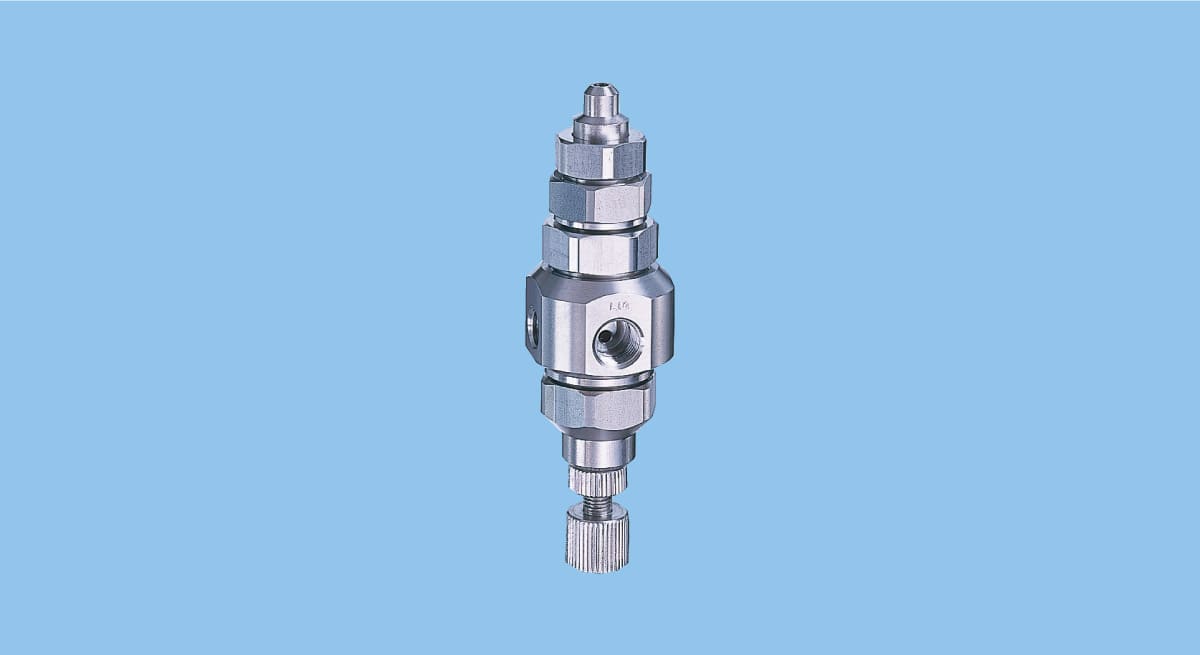

These nozzles can be mounted onto different adaptors depending on the intended purpose of use. (The picture shows the nozzle with a NDB-type adaptor.)
Specs
| Main Material | S303 |
|---|---|
| Air Supply | Compressed air |
| Liquid Feeding System | Liquid pressure |
| Air-liquid Mixing System | Internal mixing inner air type |
| Spray Droplet Measuring Method | Laser Doppler Method |
| Fog Classification | Fine fog |
| Mean Droplet Diameter | 20–100 μm |
| Spray Capacity (Flow-rate) | 1.0–107 L/hr |
| Spray Angle | 70º, 20º *1 |
| Spray Width | 25–170mm *2 |
- Materials: Click here for full material descriptions, including chemical and heat resistance.
- Fog Classification: Based on spray droplet size. Click here for details.
*1) Spray angle measured at compressed air pressure of 0.3 MPa and liquid pressure of 0.1 MPa.
*2) Measured at spray distance of 100 mm from nozzle.
Note: Please refer to the catalog for detailed specifications including spray capacity (flow rate), mean droplet diameter, liquid and air inlet sizes.
Resources for Download
• Full cone spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 100 μm or less (*3).
• Features large turn-down ratio under liquid pressures of 0.1–0.3 MPa.
• Spray angle of 20ﾟ or 70ﾟ.
*3) Measured by Laser Doppler Method.
Applications
- Spraying: Mold release agent, lubricant, deodorant (trash pit, refuse collector, inlet conduit), oil, surface treatment agent, rust preventive, honey, insecticide, aqueous urea, etc.
- Cooling: Dies, gas, glass, steel plates, steel pieces, moldings, automobile bodies, plastic products, etc.
- Moisture control: Paper, gas, ceramics, concrete, etc.
- [Steelmaking industry]
- Raw material process: Dust suppression at the conveyor line, Flue gas denitration reducing agent
- Steelmaking process: Cooling refractories at maintenance of ladle and tundish, Cooling electric furnace and electrode
- Rolling mill process: Cooling coil
- Surface finish process: Minimized spangle treatment at the continuous galvazing line, Cooling coating line
Industries where this nozzle is used
- Steelmaking
- Pollution control
- Electronics
- Paper & pulp
- Printing
- Food
- Automotives
Structure
- Four-part structure: Nozzle tip, core, cap, and adaptor. See the catalog for details of adaptors.
