Hydraulic Spray Nozzles
Hydraulic spray nozzles atomize and spray a liquid using a high-pressure pump. They are categorized into five types based on their spray patterns: flat, hollow cone, full cone, solid stream, and slit. Using a right nozzle brings various benefits in terms of water savings, energy or labor savings, and quality improvements. << Explore the digital catalog here. (The page will reload. To open in a new tab, press Ctrl+Click.) >>
-
- Some Models are Made-to-Order
- Precision Guarantee
- Flat Spray Nozzles
VVP
Operating pressure:0.05-2 MPa
Spray capacity:0.20–150 L/min (0.3 MPa)
Spray angle:15ﾟ, 25ﾟ, 40ﾟ, 50ﾟ, 65ﾟ, 80ﾟ, 90ﾟ, 115ﾟ
Material:S303, PP, PVDF
-
- Ceramic Orifice
- Precision Guarantee
- Even Flat Spray Nozzles
VEP
Operating pressure:0.05-5 MPa
Spray capacity:0.30–46.9 L/min (0.3 MPa)
Spray angle:15°, 25°, 40°, 50°, 65°, 80°, 90°, 115°
Material:S303, B, PVDF
-
- Precision Guarantee
- Wide-angle Flat Spray Nozzles
YYP
Operating pressure:0.03-0.2 MPa
Spray capacity:0.30–250 L/min (0.3 MPa)
Spray angle:100°, 115°, 120°, 130°, 135°, 140°
Material:S303, PVC
-
- Precision Guarantee
- Quick-detachable
- Flat Spray Nozzles (Quick-detachable)
INVV (Plastic)
Operating pressure:0.05-0.7 MPa
Spray capacity:0.50–5.00 L/min (0.3 MPa)
Spray angle:50°, 65°, 90°, 115°
Material:Nozzle tip: PP, Adaptor: PP or PPS
-
- Ceramic Orifice
- Precision Guarantee
- Hollow Cone Spray Nozzles
KB
Spray capacity:2.00–107 L/hr (0.7 MPa)
Mean droplet diameter:45–210 μm
Material:S303, B
Free passage diameter:0.15–0.60 mm
-
- Ceramic Orifice
- Precision Guarantee
- Hollow Cone Spray Nozzles
KBN
Spray capacity:2.00–7.25 L/hr (0.3 MPa)
Mean droplet diameter:35–60 μm
Material:Polyamide
Free passage diameter:0.2–0.4 mm
-
- Precision Guarantee
- Hollow Cone Spray Nozzles
AAP
Spray capacity:1.00–23.0 L/min (0.2 MPa)
Spray angle:75–80°
Material:S304
Free passage diameter:2.0–8.0 mm
-
- Made-to-Order
- Precision Guarantee
- Spray Nozzles for Spraying Slurries
TAA
Spray capacity:200–1,200 L/min (0.07 MPa)
Spray angle:67–80°
Material:SiC
Free passage diameter:28–68 mm
-
- Some Models are Made-to-Order
- Precision Guarantee
- Full Cone Spray Nozzles
JJXP
Spray capacity:0.50–1200 L/min (0.2 MPa)
Spray angle:55–105°
Material:S303, S316
Free passage diameter:0.4–20.0 mm
-
- Some Models are Made-to-Order
- Precision Guarantee
- Wide-angle Full Cone Spray Nozzles
BBXP
Spray capacity:1.50–1200 L/min
Spray angle:120°
Material:S303, S316
Free passage diameter:0.7–21.7 mm
-
- Precision Guarantee
- Full Cone Spray Nozzles (Clog-resistant)
AJP
Spray capacity:2.00–250 L/min (0.2 MPa)
Spray angle:75°, 80°, 85°, 90°
Material:S303, S304, SCS13
Free passage diameter:1.6–22.3 mm
-
- Precision Guarantee
- Quick-detachable
- Full Cone Spray Nozzles (Quick-detachable)
INJJX
Spray capacity:1.00–6.00 L/min
Spray angle:65°, 70°, 75°
Material:Nozzle tip: PP, Adaptor: PP or PPS
Free passage diameter:0.8–2.0 mm
-
- Ceramic Orifice
- Precision Guarantee

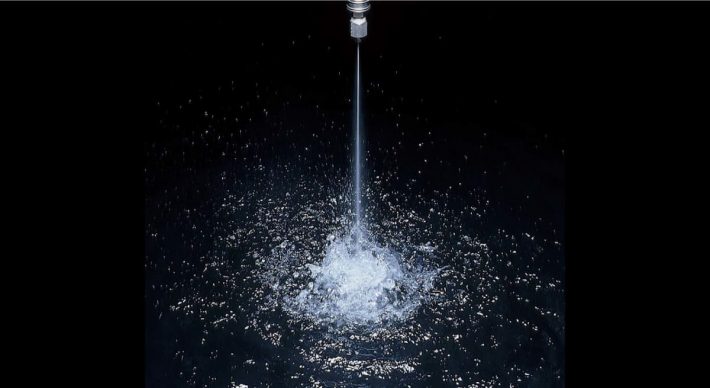

- Solid Stream Spray Nozzles
CP
Operating pressure:0.1-15 MPa
Spray capacity:2.47–104 L/min (3 MPa)
Free passage diameter:0.8–5.4 mm
Material:S303
-
- Precision Guarantee

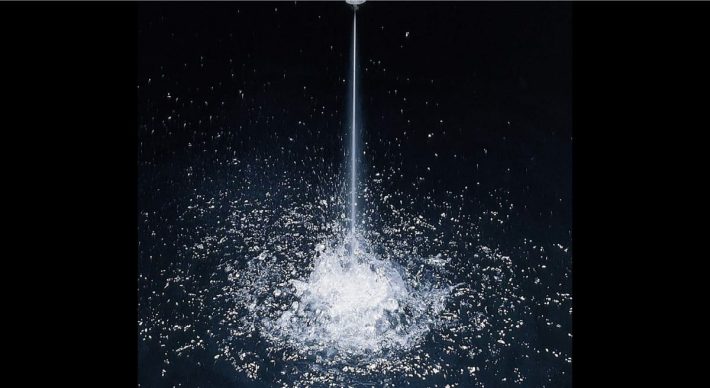

- Solid Stream Spray Nozzles (Convex Round Inlet)
CCRP
Operating pressure:0.3-3 MPa
Spray capacity:0.52–8.26 L/min
Material:S303
-
- Ceramic Orifice

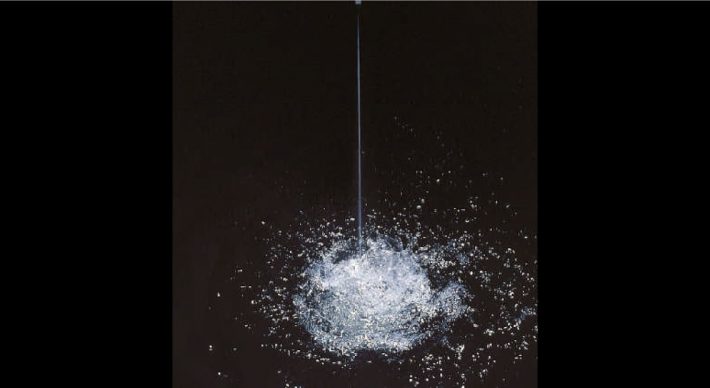

- Paper Trimming Nozzles
CM-FB
Operating pressure:0.5-5 MPa
Spray capacity:0.12–0.49 L/min (1 MPa)
Material:S303
-
- Ceramic Orifice
- Precision Guarantee
- Spray Control
- Solid Stream Spray Nozzles (with On-off Control)
SO-CM
Operating pressure:0.3-0.5 MPa
Spray capacity:0.08–0.75 L/min (0.3 MPa)
Material:S303
-
- Blower
- Slit Nozzles for Air Blowing
SLNB
Air consumption:0.97–2.91 N㎥/min (5 kPa)
Slit length:400–1,200 mm
Slit width:0.1mm, 0.2 mm
Material:S304
-
- Made-to-Order
- Precision Guarantee
- Solid Stream Spray Nozzles (Two Orifices)
2CCP
Operating pressure:0.3-3 MPa
Spray capacity:1.68–3.42 L/min (1 MPa)
Spreading angle:10–25°
Material:S303
-
- Made-to-Order
- Ceramic Orifice
- Paper Trimming Nozzles (Two Orifices)
2CM-FB
Operating pressure:0.5-3 MPa
Spray capacity:0.24–0.67 L/min (1 MPa)
Material:S303
-
- Made-to-Order
- Ceramic Orifice
- Precision Guarantee
- Solid Stream Spray Nozzles (Two Orifices)
2CP
Operating pressure:0.3-3 MPa
Spray capacity:0.86–3.42 L/min (1 MPa)
Spreading angle:10–25°
Material:S303
-
- Made-to-Order
- Precision Guarantee
- Solid Stream Spray Nozzles (Seven Orifices)
7CCP
Operating pressure:0.3-3 MPa
Spray capacity:5.88–11.9 L/min (1 MPa)
Spreading angle:15°
Material:S303
-
- Made-to-Order
- Ceramic Orifice
- Precision Guarantee
- Solid Stream Spray Nozzles (Seven Orifices)
7CP
Operating pressure:0.3-3 MPa
Spray capacity:3.01–11.9 L/min (1 MPa)
Spreading angle:15°
Material:S303
-
- Made-to-Order
- Precision Guarantee
- Seven-head Full Cone Spray Nozzles
7JJXP
Spray capacity:7.00–315 L/min (0.2 MPa)
Spray angle:175–215°
Material:S303
Free passage diameter:0.8–4.7 mm
-
- Precision Guarantee
- Seven-head Full Cone Spray Nozzles
7KB
Spray capacity:0.23–10.9 L/min (0.7 MPa)
Spray angle:180°
Material:S303
Free passage diameter:0.15–0.60 mm
-
- Made-to-Order
- 7-outlet Connecting Adaptor
7-outlet Adaptor
Max. operating pressure:1.0 MPa
Heat resistance:80℃
Outlet thread size:Rc1/8
Material:FRPP
-
- Precision Guarantee
- Hollow Cone Spray Nozzles
AAP
Spray capacity:1.00–23.0 L/min (0.2 MPa)
Spray angle:75–80°
Material:S304
Free passage diameter:2.0–8.0 mm
-
- Precision Guarantee
- Full Cone Spray Nozzles (Clog-resistant)
AJP
Spray capacity:2.00–250 L/min (0.2 MPa)
Spray angle:75°, 80°, 85°, 90°
Material:S303, S304, SCS13
Free passage diameter:1.6–22.3 mm
-
- Made-to-Order
- Precision Guarantee
- Full Cone Spray Nozzles (Alumina Ceramic)
AJP-AL92
Spray capacity:18.0–250 L/min (0.2 MPa)
Spray angle:85°, 90°
Material:92％ Alumina
Free passage diameter:5.1–21.3 mm
-
- Precision Guarantee
- Full Cone Spray Nozzles (Clog-resistant)
AJP-PPS
Spray capacity:4.00–16.0 L/min (0.2 MPa)
Spray angle:75–85°
Material:PPS
Free passage diameter:2.2–4.8 mm
-
- Made-to-Order
- Precision Guarantee

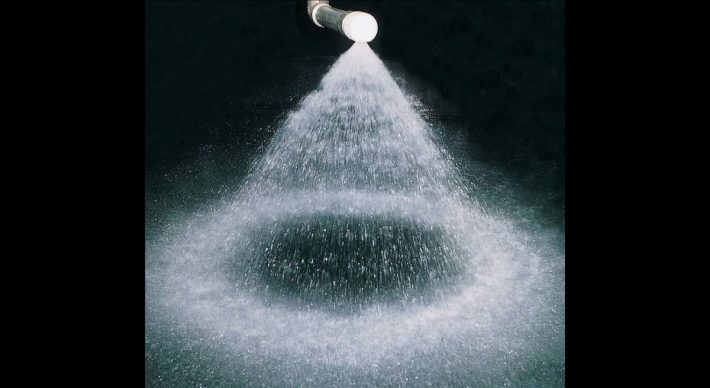

- Hollow Cone Spray Nozzles (Alumina Ceramic)
AP-AL92
Spray capacity:14.0–600 L/min (0.2 MPa)
Spray angle:80°, 85°
Material:92％ Alumina
Free passage diameter:6.8–39.6 mm
-
- Made-to-Order

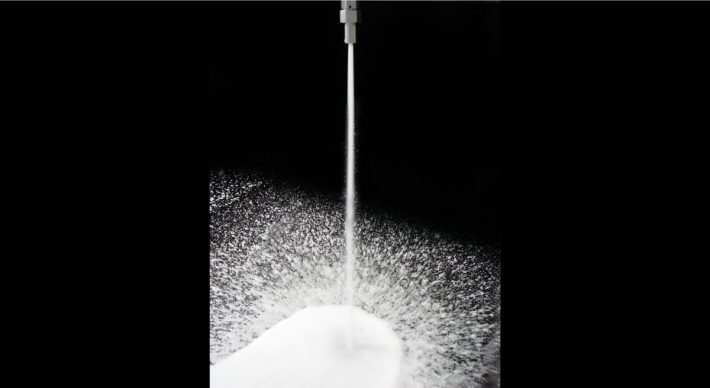

- Detergent Foam Spray Nozzles (Solid Stream)
AWCC
Operating pressure:0.1-0.6 MPa
Spray capacity:1.00-5.00 L/min (0.3 MPa)
Material:S303
-
- Made-to-Order

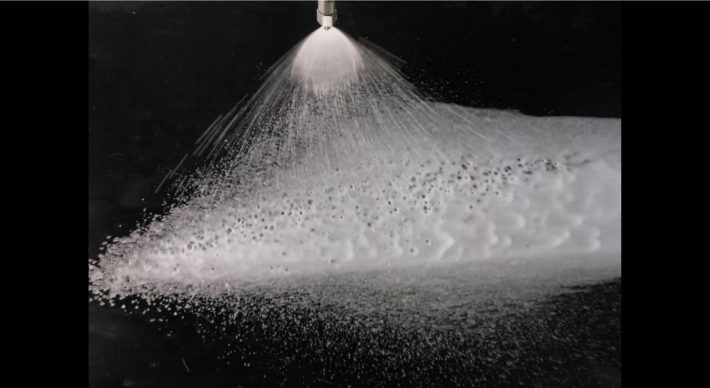

- Detergent Foam Spray Nozzles (Flat Spray Pattern)
AWVV
Operating pressure:0.1-0.6 MPa
Spray capacity:1.00-5.00 L/min (0.3 MPa)
Spray angle:80°, 100°
Material:S303
-
- Some Models are Made-to-Order
- Precision Guarantee

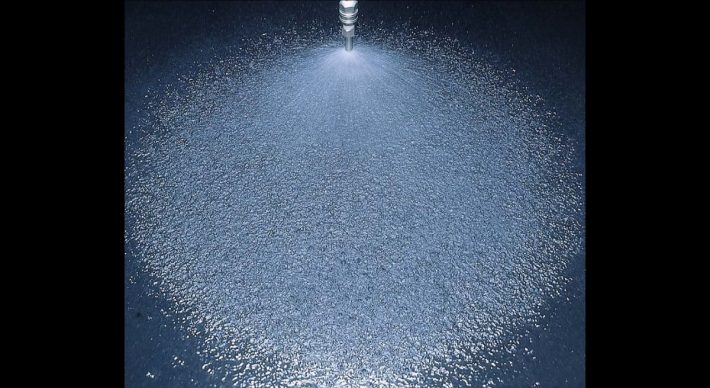

- Wide-angle Full Cone Spray Nozzles
BBXP
Spray capacity:1.50–1200 L/min
Spray angle:120°
Material:S303, S316
Free passage diameter:0.7–21.7 mm
-
- Precision Guarantee
- Wide-angle Full Cone Spray Nozzles
BBXP-PVC
Spray capacity:3.00 L/min (0.2 MPa)
Spray angle:120°
Material:PVC
Free passage diameter:1.5 mm
-
- Precision Guarantee
- Wide-angle Full Cone Spray Nozzles
BBXP-PVDF
Spray capacity:0.8–2.0 L/min (0.2 MPa)
Spray angle:120°
Material:PVDF
Free passage diameter:0.5–1.2 mm
-
- Made-to-Order
- Self-cleaning

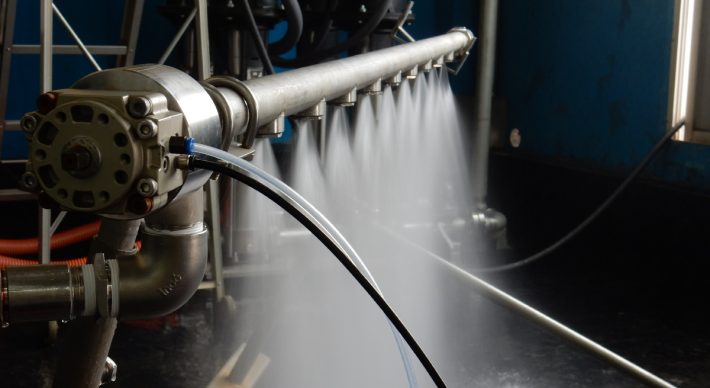

- Spray Headers with Nozzle Cleaning Function
BRASIKan
Standard pressure:0.3 MPa
Free passage diameter:1.3–2.9 mm
Material:S303, S316L, TN
-
- Precision Guarantee
- Solid Stream Spray Nozzles
CCP
Operating pressure:0.1-3.5 MPa
Spray capacity:13.6–104 L/min (3 MPa)
Free passage diameter:2.0–5.4 mm
Material:S303
-
- Precision Guarantee
- Solid Stream Spray Nozzles (Convex Round Inlet)
CCRP
Operating pressure:0.3-3 MPa
Spray capacity:0.52–8.26 L/min
Material:S303
-
- Some Models are Made-to-Order
- Ceramic Orifice
- Paper Trimming Nozzles
CM
Operating pressure:0.5-5 MPa
Spray capacity:0.014–3.07 L/min (1 MPa)
Material:S303
-
- Ceramic Orifice
- Paper Trimming Nozzles
CM-FB
Operating pressure:0.5-5 MPa
Spray capacity:0.12–0.49 L/min (1 MPa)
Material:S303
-
- Ceramic Orifice
- Paper Trimming Nozzles
CMP-T
Operating pressure:0.5-5 MPa
Spray capacity:0.12–1.36 L/min (1 MPa)
Material:S303
-
- Ceramic Orifice
- Precision Guarantee
- Solid Stream Spray Nozzles
CP
Operating pressure:0.1-15 MPa
Spray capacity:2.47–104 L/min (3 MPa)
Free passage diameter:0.8–5.4 mm
Material:S303
-
- Made-to-Order
- Ceramic Orifice
- Solid Stream Spray Nozzles (Small Orifice Diameters)
CP (Small Orifice Diameters)
Operating pressure:1-15 MPa
Spray capacity:0.020–1.27 L/min (1 MPa)
Material:S303
-
- Ceramic Orifice
- Solid Stream Spray Nozzles (Convex Round Inlet)
CRP
Operating pressure:0.3-3 MPa
Spray capacity:0.52–8.26 L/min
Material:S303
-
- Some Models are Made-to-Order

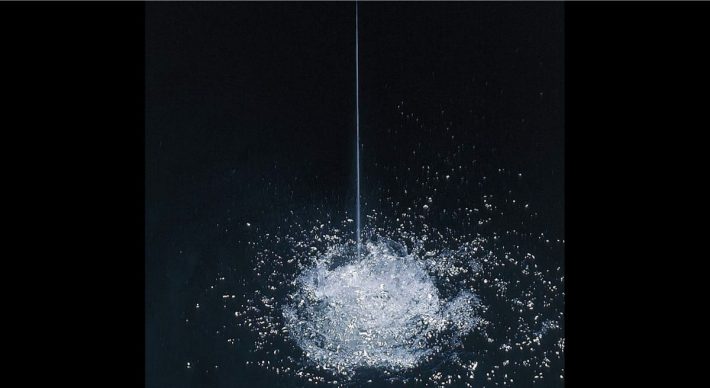

- Paper Trimming Nozzles
CTM
Operating pressure:0.5-5 MPa
Spray capacity:0.05–2.90 L/min (1 MPa)
Material:S303
-
- Precision Guarantee

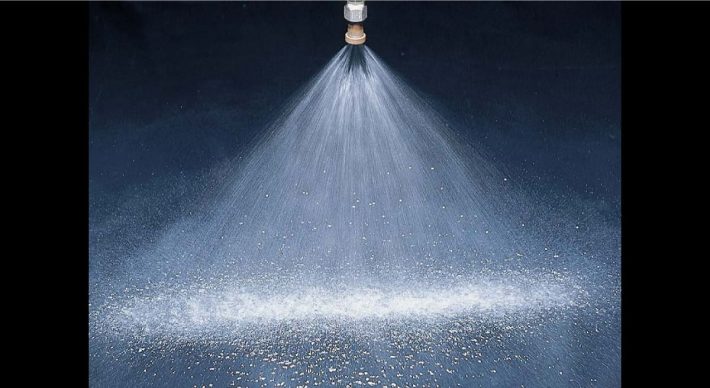

- Flat Spray Nozzles (Coin-shaped)
CVVP
Operating pressure:0.05-2 MPa
Spray capacity:1.00–8.00 L/min (0.3 MPa)
Spray angle:65°, 80°, 90°
Material:S303
-
- Made-to-Order
- Precision Guarantee

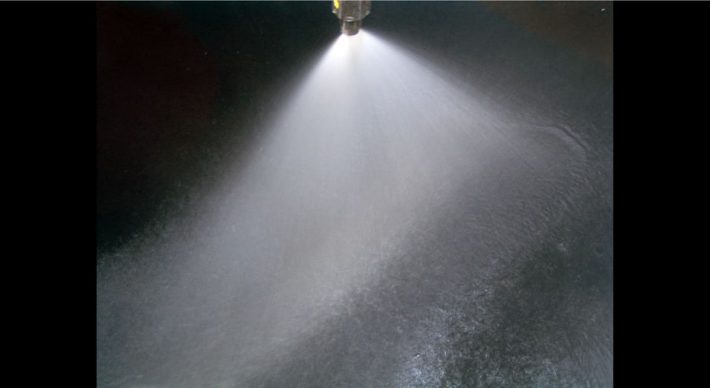

- Ultra-Thick Even Flat Spray Nozzles
DDRP
Operating pressure:0.05-2 MPa
Spray capacity:5.00-100 L/min (0.3 MPa)
Spray angle:90°, 115°
Material:S303
-
- Some Models are Made-to-Order
- Ceramic Orifice
- Precision Guarantee

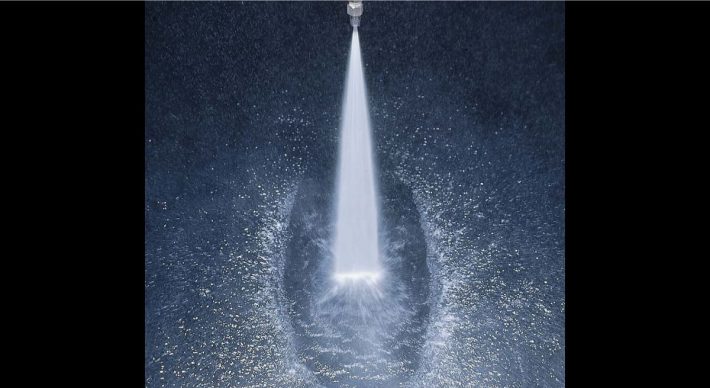

- Descaling Nozzles
DSP
Operating pressure:3-20 MPa
Spray capacity:5.59–86.5 L/min (5 MPa)
Spray angle:12°, 15°
Material:S303
-
- Made-to-Order
- Precision Guarantee

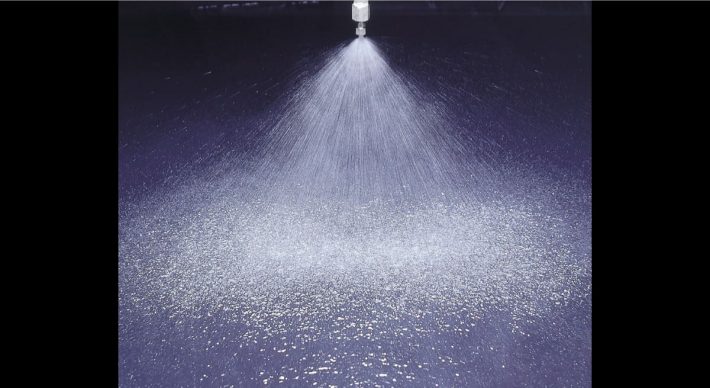

- Even Flat Spray Nozzles
EJVV
Operating pressure:0.25-2 MPa
Spray capacity:2.00-12.0 L/min (0.3 MPa)
Spray angle:80°, 90°
Material:S303
-
- Some Models are Made-to-Order
- Ejector Nozzles
EJX
Operating pressure:0.03-0.3 MPa
Supply flow rate:1.10–160 L/min (0.05 MPa)
Discharge flow rate:3.1–460 L/min (0.05 MPa)
Material:S303, S304, PP, PVC
