Tank Cleaning Nozzles & Others
Tank cleaning nozzles, or tank cleaners, are for cleaning the inside of various tanks such as beverage tanks and reaction tanks. Suited for CIP cleaning and compliant with HACCP, they can be fixed in place in tanks or retracted from tanks when not in use and inserted into tanks when used. In addition to cleaning tanks, we also have a lineup of products for cleaning conveyors and duct interiors. << Explore the digital catalog here. (The page will reload. To open in a new tab, press Ctrl+Click.) >>
-
- Resources for Selecting the Right Products
- Technical Library
Case Studies
Explore real-world case studies and in-depth testimonials showcasing our solutions across various industries.
-
- Resources for Selecting the Right Products
- Technical Library
Technical Papers
Learn the fundamentals of our products and solutions through comprehensive analyses on diverse applications.
-
- 360º
- ROTARY JETTER
- 3D Rotational Tank Cleaning Nozzles
RJ (ROTARY JETTER)
Spray capacity:25.6–246 L/min (0.2–1.0 MPa)
Reach distance:About 7–12m (RADIUS)
Heat resistance:80℃
Material:S304
-
- 360º
- 2D Rotational Tank Cleaning Nozzles
SR
Spray capacity:9.19–194 L/min (0.15–0.5 MPa)
Reach distance:Approx. 2–5.8 m
Heat resistance:150℃
Material:S316L
-
- 180º downward
- 180º upward
- 360º
- 2D Rotational Tank Cleaning Nozzles
ES (Metal)
Spray capacity:4.0–803.3 L/min (0.1–1.0 MPa)
Reach distance:Approx. 0.5–7.3m
Heat resistance:60℃
Material:S316L
-
- 360º
- Shower Balls
SWB (Shower Balls)
Spray capacity:35.4–395 L/min (0.1–0.5 MPa)
Applicable tank diameter:About 450–3,750 mm
Heat resistance:400℃
Material:S316L
-
- Made-to-Order
- Detergent Foam Spray Nozzles (Solid Stream)
AWCC
Operating pressure:0.1-0.6 MPa
Spray capacity:1.00-5.00 L/min (0.3 MPa)
Material:S303
-
- Made-to-Order
- Detergent Foam Spray Nozzles (Flat Spray Pattern)
AWVV
Operating pressure:0.1-0.6 MPa
Spray capacity:1.00-5.00 L/min (0.3 MPa)
Spray angle:80º, 100º
Material:S303
-
- 180º downward
- 180º upward
- 360º
- 2D Rotational Tank Cleaning Nozzles
ES (Metal)
Spray capacity:4.0–803.3 L/min (0.1–1.0 MPa)
Reach distance:Approx. 0.5–7.3m
Heat resistance:60℃
Material:S316L
-
- 180º downward
- 180º upward
- 360º
- 2D Rotational Tank Cleaning Nozzles
ES-PTFE
Spray capacity:12.2–194 L/min (0.05–0.5 MPa)
Reach distance:approx.1.5–4 m
Heat resistance:93℃
Material:PTFE
-
- 360º
- 2D Rotational Tank Cleaning Nozzles
ESV-PTFE
Spray capacity:12.2–194 L/min (0.05–0.5 MPa)
Reach distance:approx.1.1–4 m
Heat resistance:93℃
Material:PTFE
-
- 360º
- JET ATTACKER
- 3D Rotational Tank Cleaning Nozzles
JA3 (JET ATTACKER)
Spray capacity:12–85 L/min L/min
Reach distance:approx. 2–9m
Heat resistance:60℃
Material:S304
-
- JET ATTACKER
- 2D Rotational Tank Cleaning Nozzles
JA2 (JET ATTACKER)
Spray capacity:14–253.0 L/min (1.0–3.0 MPa)
Heat resistance:60℃
Material:S304
-
- 180º downward
- JET ATTACKER
- 3D Rotational Tank Cleaning Nozzles
JA3-D180 (JET ATTACKER)
Spray capacity:12–70 L/min (1.0–3.0 MPa)
Reach distance:approx. 6–9 m
Heat resistance:60℃
Material:S304
-
- Made-to-Order
- Automatic Nozzle Lifting Unit
NLD (Automatic Nozzle Lifting Unit)
Nozzle stroke:500 to about 1,700 mm
Heat resistance:5–50℃
Material:S304, fluorocarbon resin (Liquid contact parts)
-
- 360º
- ROTARY JETTER
- 3D Rotational Tank Cleaning Nozzles
RJ (ROTARY JETTER)
Spray capacity:25.6–246 L/min (0.2–1.0 MPa)
Reach distance:About 7–12m (RADIUS)
Heat resistance:80℃
Material:S304
-
- ROTARY JETTER
- Pressure-open Nozzle

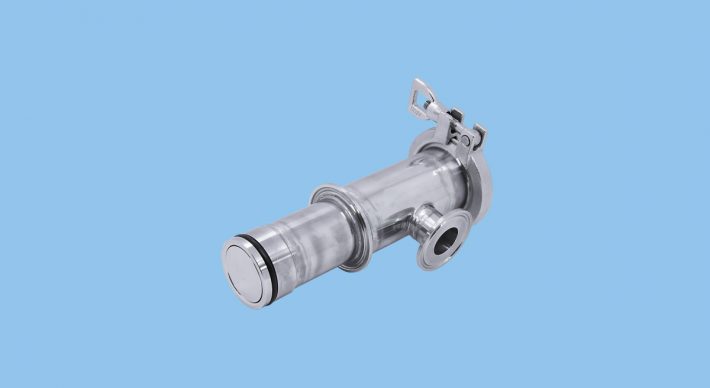

RJ2-PON
Spray capacity:24.8–100.4 L/min (0.2–0.5 MPa)
Reach distance:3.5–5m
Heat resistance:80℃
Material:S304, etc.
-
- Made-to-Order
- 360º
- ROTARY JETTER
- 3D Rotational Tank Cleaning Nozzles

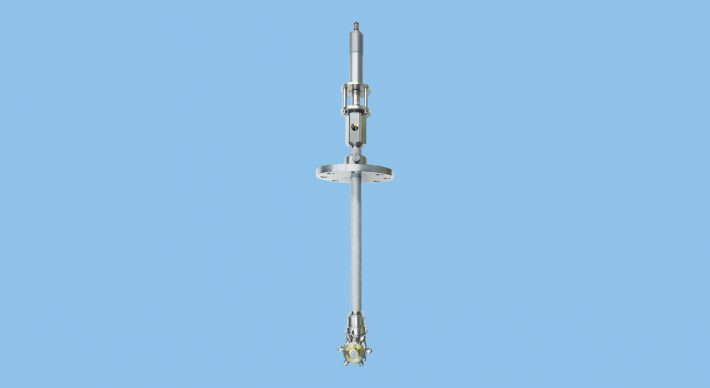

RJ3-MD (RJ3-AMD with Air Motor)
Spray capacity:4.2–103.7 L/min (0.3–15 MPa)
Reach distance:Approx. 1.5–2.5 m (RADIUS)
Heat resistance:80℃
Material:S304
-
- Made-to-Order
- 360º
- ROTARY JETTER
- 3D Rotational Tank Cleaning Nozzles

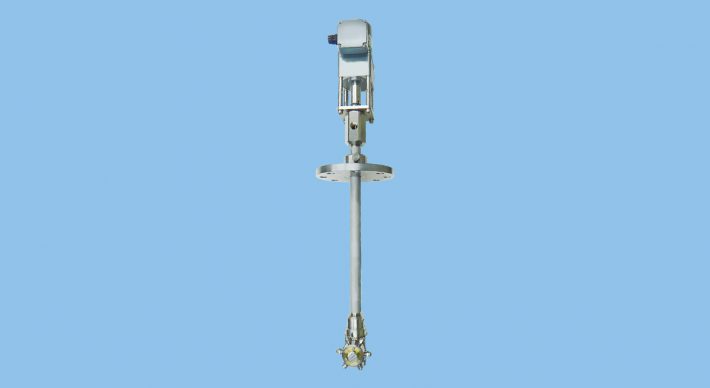

RJ3-MD RJ3-EMD (with Electric Motor)
Spray capacity:4.2–103.7 L/min (0.3–15 MPa)
Reach distance:Approx. 1.5–2.5 m (RADIUS)
Heat resistance:80℃
Material:S304
-
- Made-to-Order
- Pipe Cleaning Nozzles
RSP
Operating pressure:1-30 MPa
Spray capacity:14–331 L/min
Material:S303
-
- High-Pressure Rotating Pipe Cleaning Nozzles
RSP-R
Operating pressure:1-10 MPa
Spray capacity:5.8 L/min (1 MPa)
Material:HS (Hardened stainless steel)
-
- 360º
- 2D Rotational Tank Cleaning Nozzles
SR
Spray capacity:9.19–194 L/min (0.15–0.5 MPa)
Reach distance:Approx. 2–5.8 m
Heat resistance:150℃
Material:S316L
-
- 360º
- Shower Balls
SWB (Shower Balls)
Spray capacity:35.4–395 L/min (0.1–0.5 MPa)
Applicable tank diameter:About 450–3,750 mm
Heat resistance:400℃
Material:S316L
