Flexible Tubes
FT

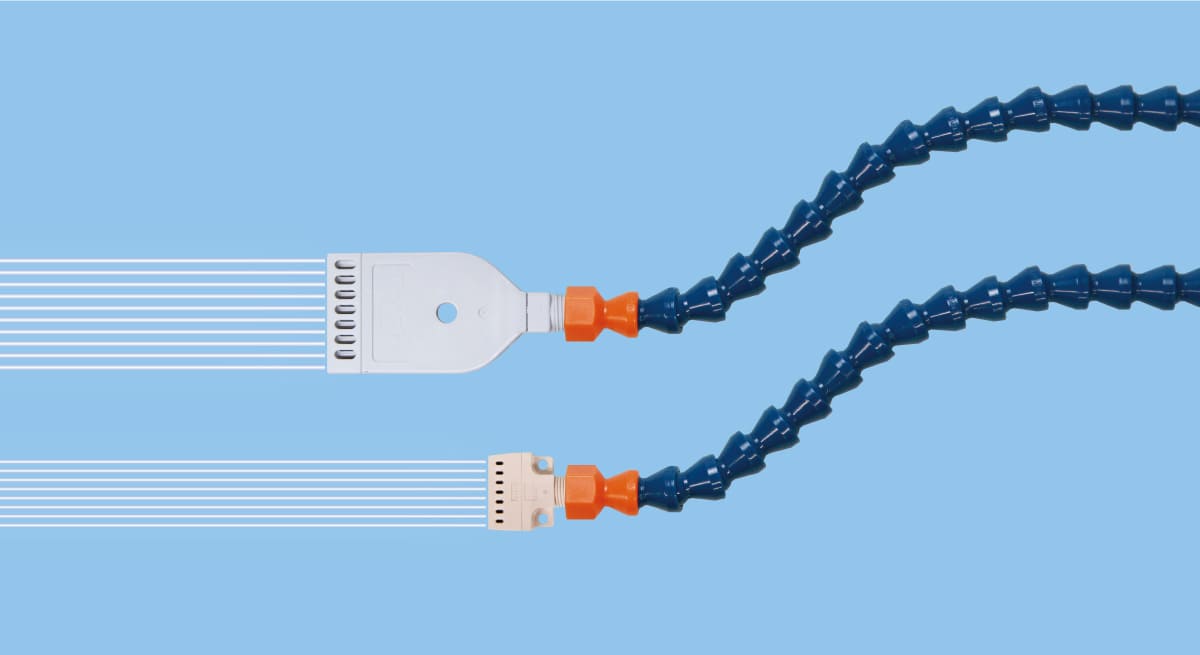

Flexible tubes capable of adjusting the direction of air blowing as needed.
Specs
| Inlet Size | R1/8, R1/4 |
|---|---|
| Outlet Thread Size | Rc1/8, Rc1/4 |
| Main Material | POM |
| Max. Operating Pressure | 0.3 MPa *1 |
| Max. Temperature | 65℃ |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Depending on the attached nozzle and/or length of the tube, there might be movement in reaction to the blow force.
Resources for Download
• Enables adjustment of air blowing directions as desired.
• Tube path and angle can be adjusted as desired.
• Highly pliable hose holds its shape well and will not spring back.
• Various types of air nozzles can be attached according to your usage.
Applications
- For applications where large changes in spray direction are required depending on the application.
Structure
- FT series tubes are available with R1/8 (PT1/8M) or R1/4 (PT1/4M) threaded inlet for air supply,
- and with Rc1/8 (PT1/8F) or Rc1/4 (PT1/4F) threaded outlet for nozzle connecting side.
- For details please see the catalog below.
