Ball Joint Adaptor (Quick-detachable)
QBP
Quick-detachable adaptors for connecting standard spray nozzles.
The ball section inside the adaptor allows for adjusting the spray direction within a range of 50 degrees.

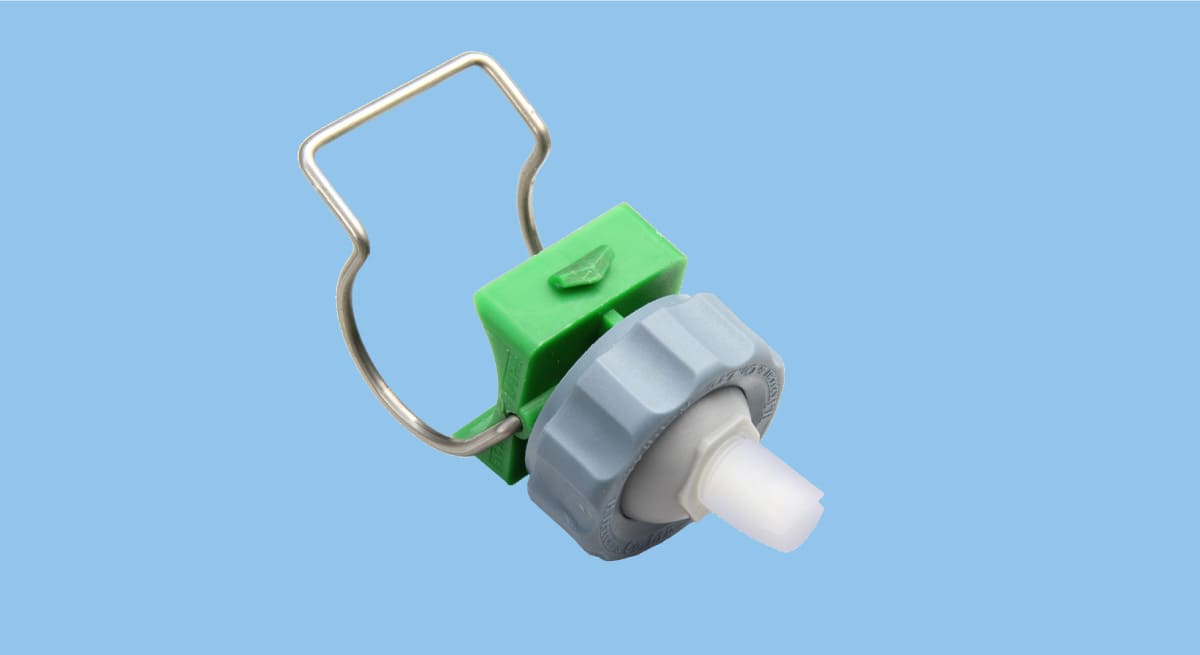

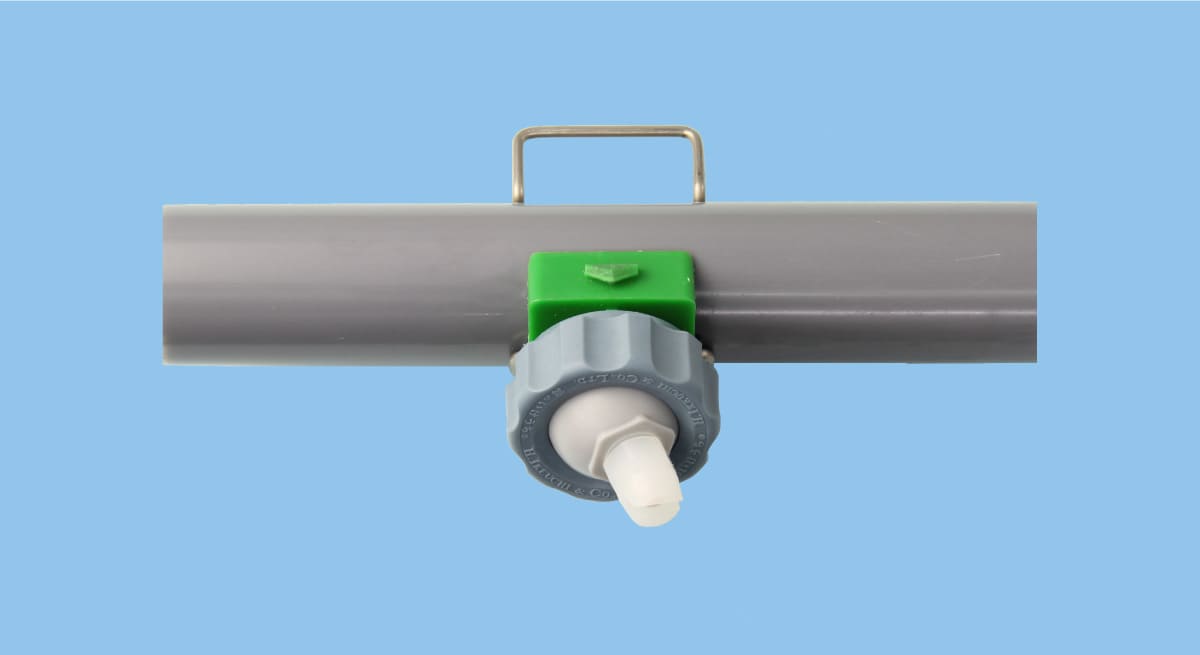

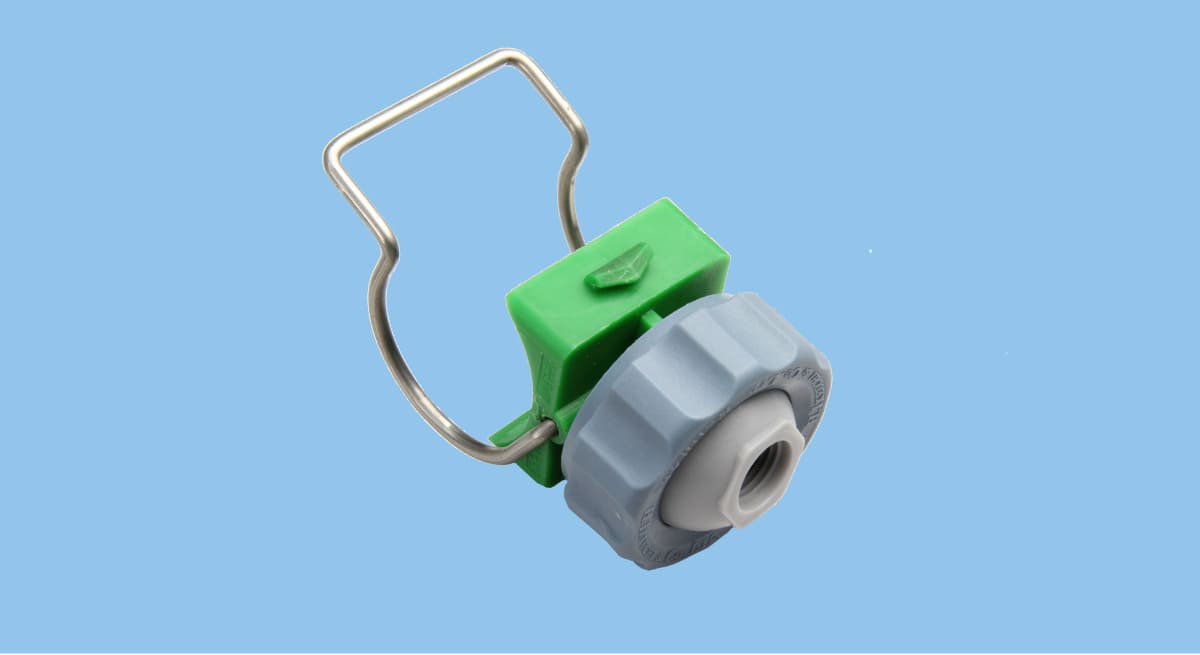

Note: The QBP adaptor does not include a spray nozzle. The photos show QBP adaptor with a spray nozzle.
Specs
| Liquid Inlet Thread Size | 1–2inch (QBP for metal pipes), 25–50A ND (QBP for PVC pipes) *1 |
|---|---|
| Outlet Thread Size | Rc1/4, Rc3/8, Rc1/2 |
| Main Material | FRPP |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) 40A, 50A adaptors for PVC pipes are the same as 1 1/2", 2" adaptors for metal pipes.
Resources for Download
• Ball joint type adaptor.
• Spray direction can be changed as desired with a ball joint.
• Easy installation onto a pipe with a spring clip fastener.
• IKEUCHI’s standard spray nozzles can be easily attached (screwed in).
Applications
- Changing spray direction
- - when washing containers in food factories
- - when spraying chemical solution in pre-paint treatment, etc.
