Paper Trimming Nozzles (Two Orifices)
2CM-FB
Hydraulic solid stream nozzles for paper trimming, featuring a high-purity ceramic orifice, a tapered nose design to minimize clogging of the nozzle orifice caused by the adhesion of paper dust, and a tab for adjusting the position of the nozzle orifices. They produce clear, turbulent-free, and straight liquid streams.
Specs
| Liquid Inlet Thread Size | R3/8 |
|---|---|
| Main Material | S303 |
| Spray Capacity (Flow-rate) | 0.24–0.67 L/min *1 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Flow rate at 1 MPa
Resources for Download

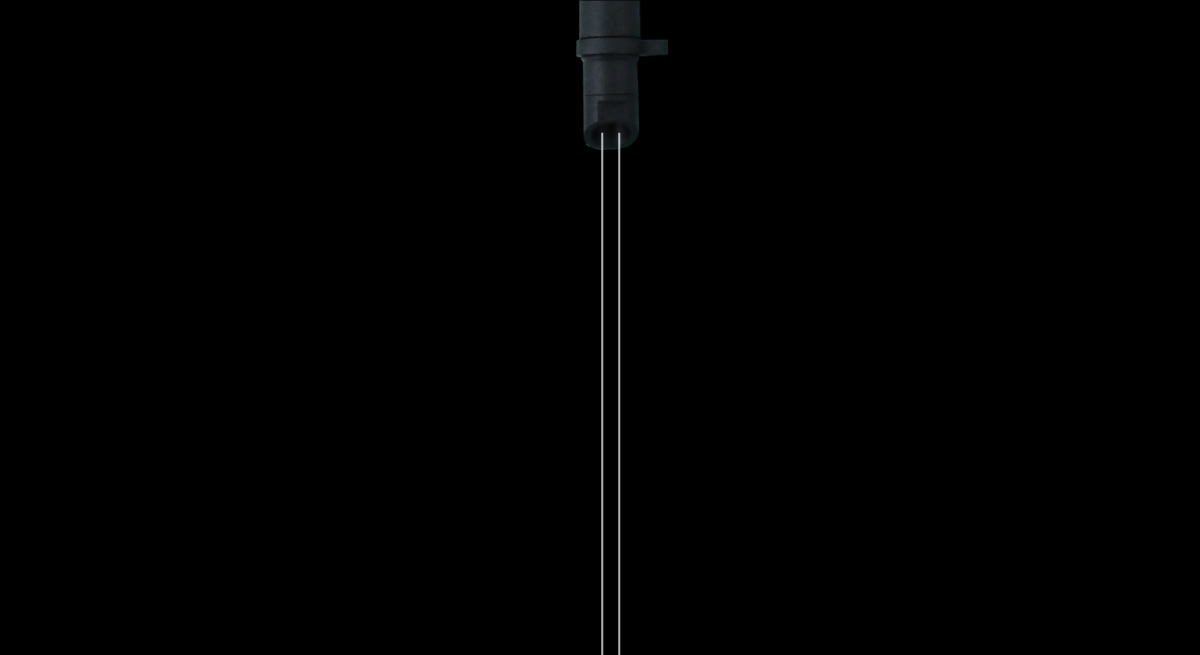

• Produces two non-turbulent clear solid streams.
• Flat surface of nozzle tip prevents paper dust from clogging the nozzle orifice.
• The position of the nozzle orifices can be adjusted by turning the tab on the 2CM-FB series.
Applications
- Trimming: Paper making
- Cutting: food
- Cleaning of precision machine parts, injection of chemicals, deburring, foaming of beer (jet foamer)
Industries where this nozzle is used
- Paper & Pulp
- Printing
- Food
Structure
- Has a high-purity ceramic orifice in the nozzle.

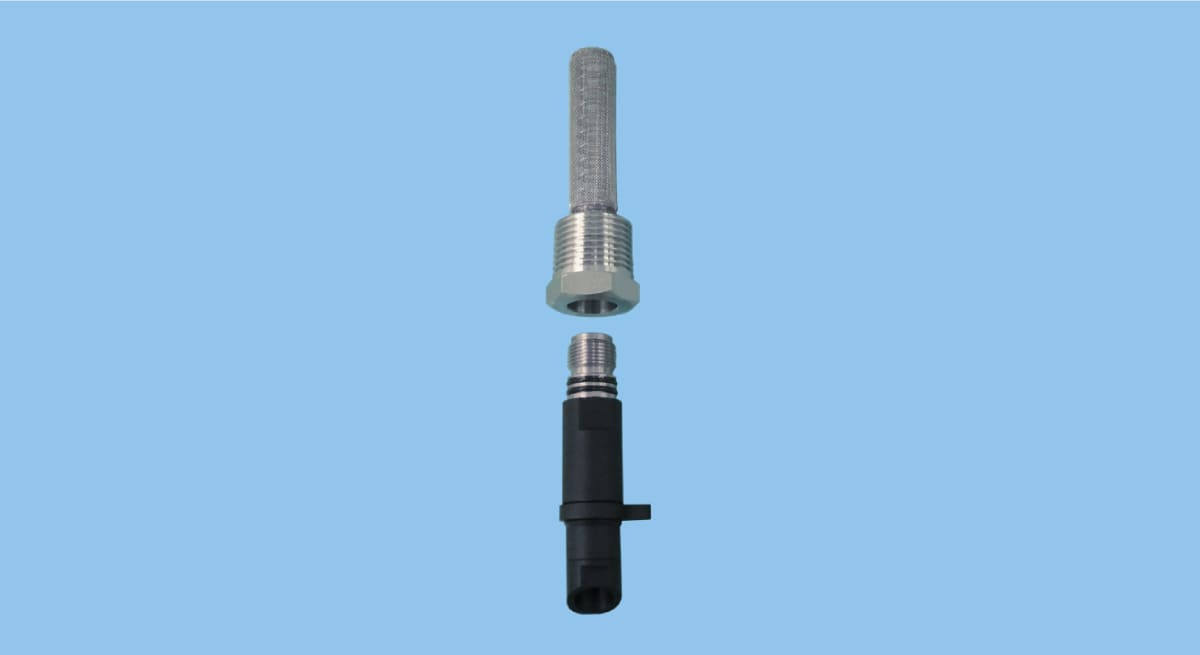

- Includes a nozzle and a strainer integrated with an adaptor. Worn-out nozzles can be replaced separately.
