Wide-angle Full Cone Spray Nozzles
BBXP-PVC
Hydraulic full cone spray nozzles, made of PVC with excellent chemical resistance, featuring a 120° spray angle for broader coverage and offering a wide variety of spray flow rates.
Specs
| Liquid Inlet Thread Size | R1/8 |
|---|---|
| Main Material | PVC |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 350 μm |
| Standard Pressure | 0.2 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 3.00 L/min |
| Spray Angle at Standard Pressure | 120º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download

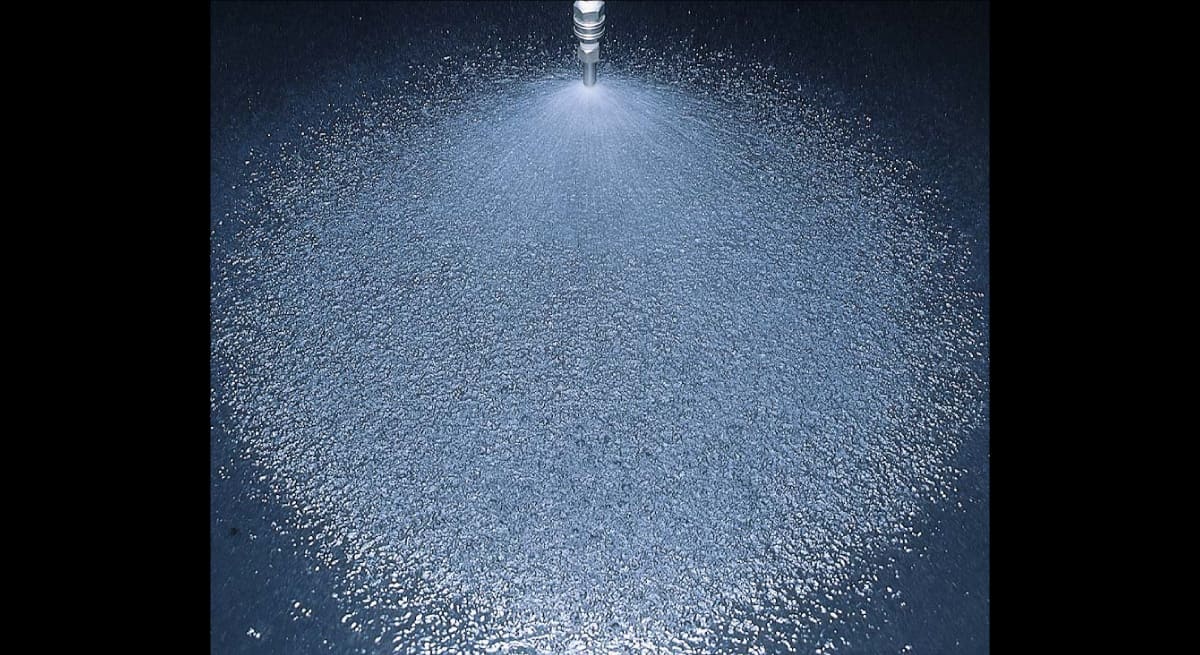

• Full cone spray pattern with a round impact area and uniform distribution.
• Spray angle of 120ﾟ provides larger spray coverage than other nozzles.
• Spray flow rate ranges from small to medium.
• X-shaped whirler provides large free passage diameter, minimal clogging.
Applications
- Chemical cleaning
Industries where this nozzle is used
- Electronics
Structure
- One-piece structure with an X-shaped whirler.
