Solid Stream Spray Nozzles (Convex Round Inlet) CCRP
Hydraulic solid stream nozzles produce a high-impact, straight …
- Ceramic Orifice
- Cleaning

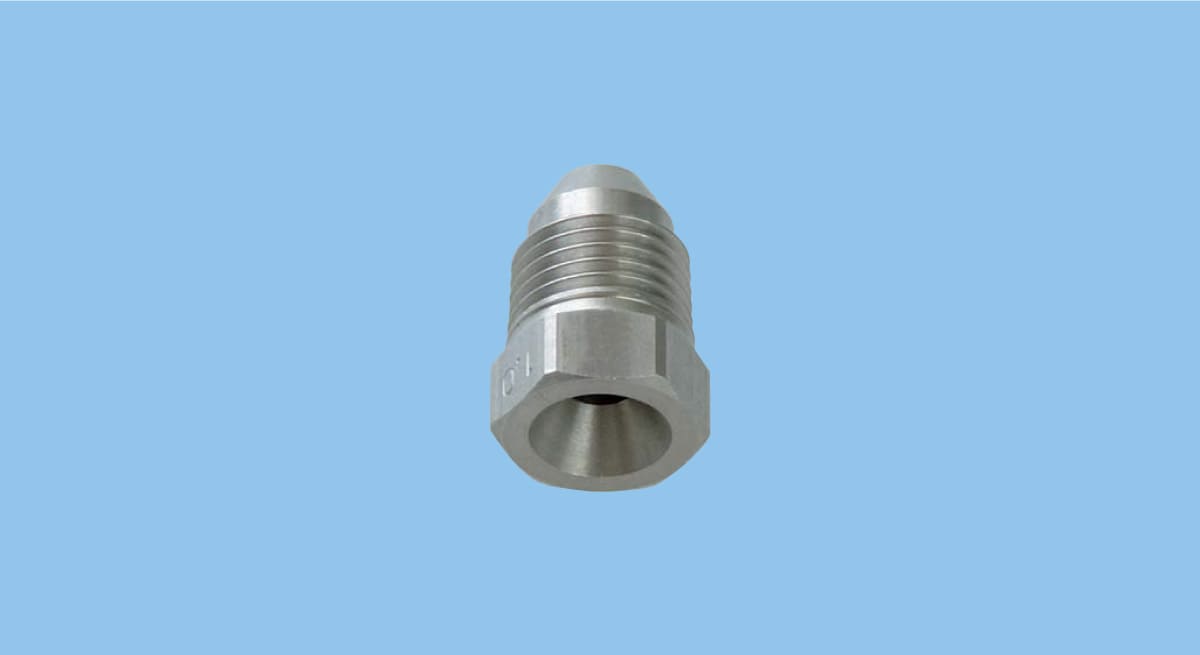

Solid Stream Spray Nozzles (Convex Round Inlet)
CRP
Hydraulic solid stream nozzles, featuring a wear-resistant ceramic orifice, produce a high-impact, straight liquid jet.
When installed on a header pipe, a convex round nozzle inlet projecting inside the pipe helps reduce the accumulation of foreign particles on the inlet.
Specs
| Liquid Inlet Thread Size | R1/8, R1/4 |
|---|---|
| Main Material | S303 |
| Standard Pressure | 2.0 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 0.52–8.26 L/min |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download
• High impact solid stream.
• Convex round inlet protrudes inside the pipe to prevent particles from flowing into the nozzle, reducing clogging.
• CRP (AL99) series features high-purity alumina ceramic orifice providing stable performance with longer life.
Applications
- Cleaning: Wire and felt parts of paper making machines, machinery, parts, vehicles, returnable, containers, bottles
Industries where this nozzle is used
- Paper & Pulp
- Printing
- Food
Structure
- One-piece structure with a high-purity ceramic orifice insert.
