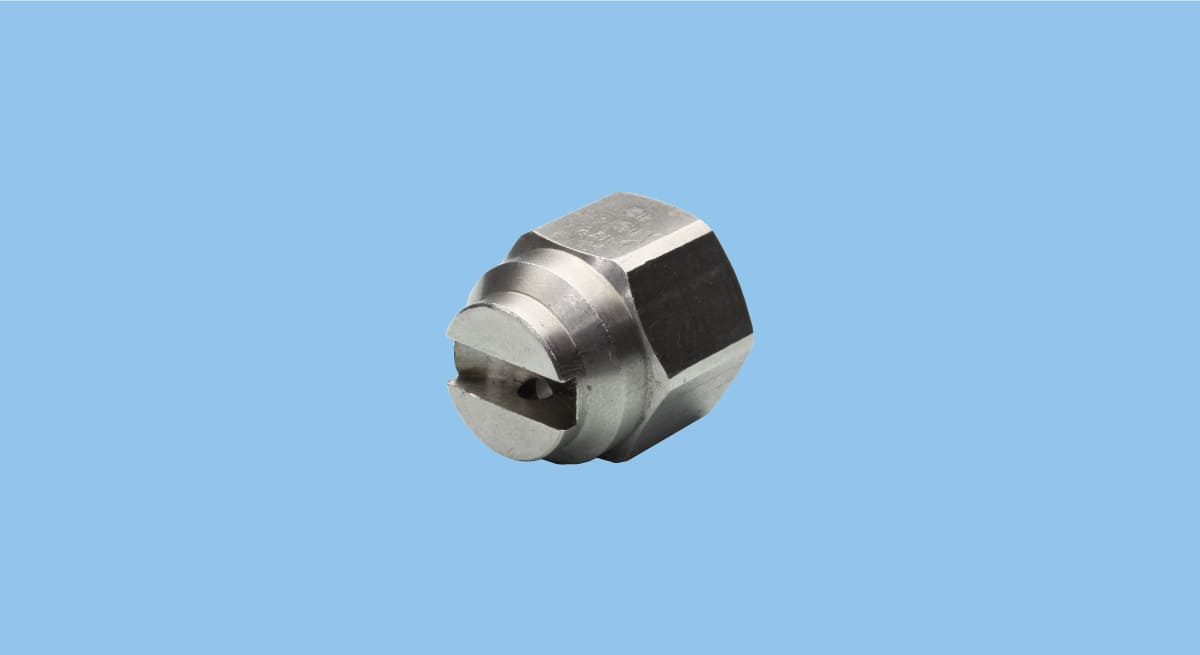

Ultra-Thick Even Flat Spray Nozzles

DDRP

Hydraulic spray nozzles with an ultra-thick flat spray pattern and a uniform distribution. The variation in spray angle is minimal even at a turndown ratio of 1:3.

Specs

Liquid Inlet Thread Size Rc1/4–1
Main Material S303
Spray Droplet Measuring Method Immersion sampling method
Fog Classification Semi-coarse fog
Mean Droplet Diameter 300–700 μm
Standard Pressure 0.3 MPa
Spray Capacity (Flow-rate) at Standard Pressure 5.00–100 L/min
Spray Angle at Standard Pressure 90º, 115º

Resources for Download

3D CAD Models

Catalog

Instruction Manuals

Case Studies

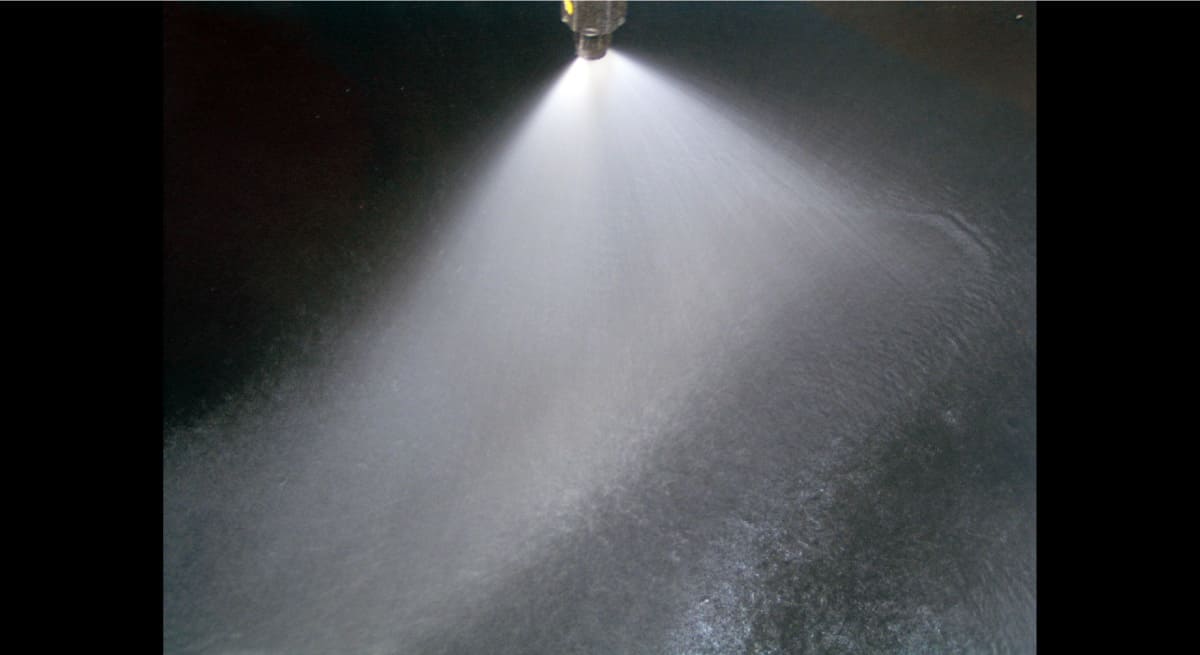

• Thick flat spray pattern with uniform distribution.

• Covers wide spray area with high spray impact.

• Minimal variation in spray angle, even in 1:3 turndown ratio.

• Minimal clogging due to large free passage diameter.

Applications

  • Cooling: Rolls, Cast plates, hot rolled sheets
  • Cleaning: Steel plates after acid picking, filters

Industries where this nozzle is used

  • Steelmaking

Structure

  • Simple one-piece structure to be screwed into a pipe, no whirler inside.
