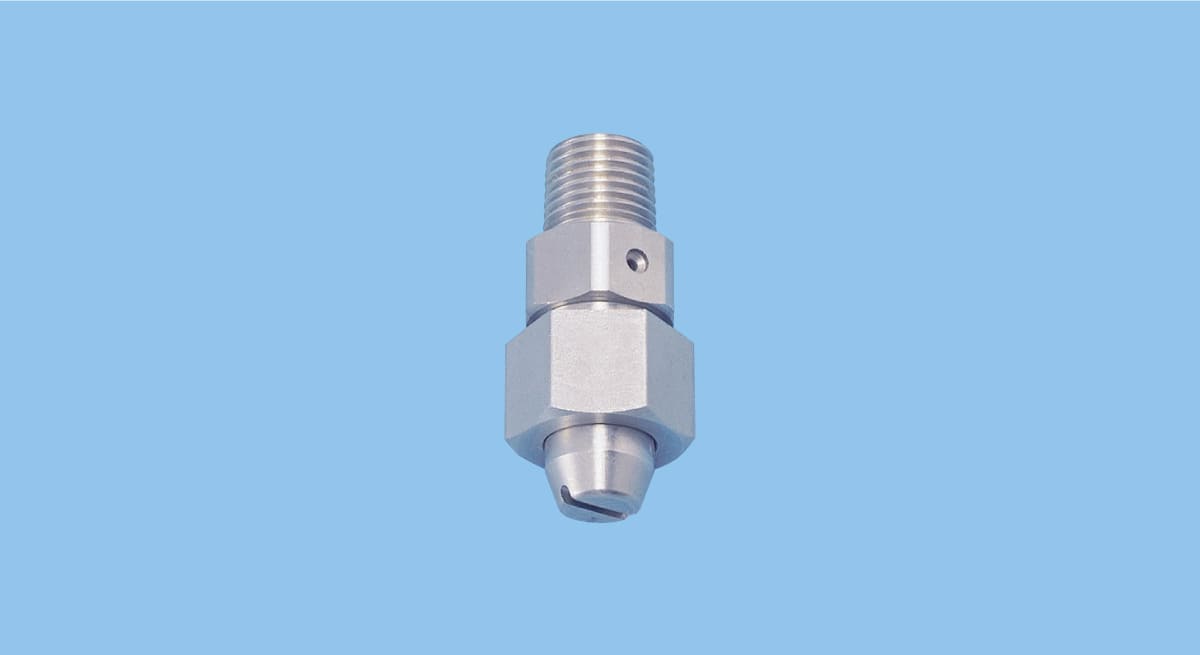

Even Flat Spray Nozzles
EJVV

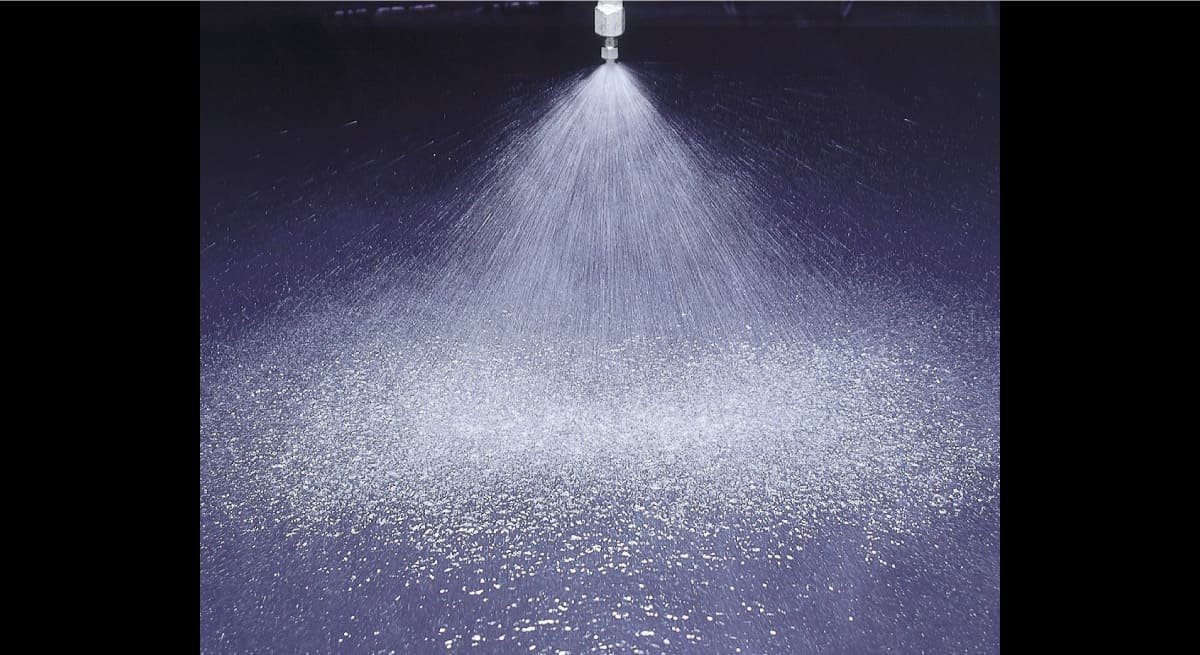

Hydraulic spray nozzles with a spray pattern thicker than that of standard flat spray nozzle: the ratio of spray width to thickness is 3–4:1.
Specs
| Liquid Inlet Thread Size | R1/4 |
|---|---|
| Main Material | S303 |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 320-590 μm |
| Standard Pressure | 0.3 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 2.00-12.0 L/min |
| Spray Angle at Standard Pressure | 80º, 90º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download
• EJVV has wider depth in spray pattern compared with standard flat spray nozzles, and the ratio of width and depth is (3-4):1.
• The free passage diameter and mean droplet diameter are slightly larger than those of a standard flat spray nozzle.
• Tapered edges overlap to provide uniformity of spray distribution in multiple-nozzle arrangements.
Applications
- Cooling: Steel plates
- Cleaning: Water rinsing after acid cleaning of metal sheets, water rinsing before or after painting
Industries where this nozzle is used
- Steelmaking
