Spillback Nozzles SPB
Hollow cone spillback nozzles with a variable spray flow rate.
- Return-flow Nozzle
- Industrial Cooling
- Pollution Control

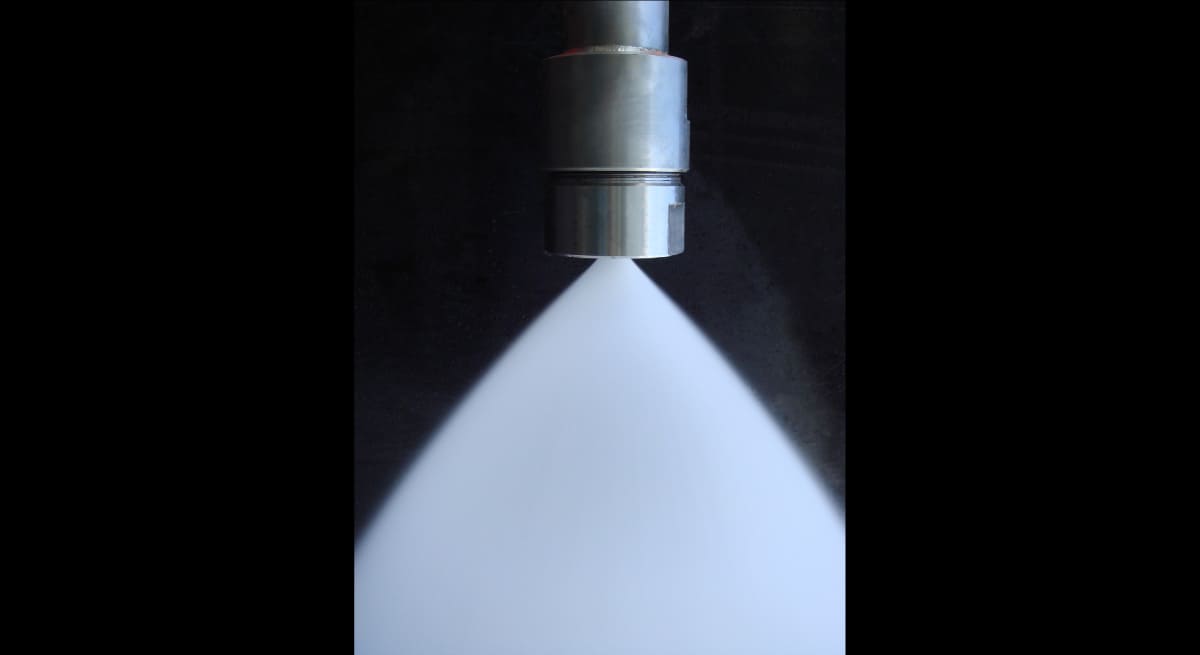

Spillback Nozzles
GSPB
Spillback nozzles designed for flue gas desulfurization in a circulating fluidized bed plant.
Specs
| Liquid Inlet Thread Size | Rc1*1/2 |
|---|---|
| Main Material | Nozzle tip: Tungsten carbide, S316L, etc. |
| Spray Droplet Measuring Method | Immersion sampling method |
| Fog Classification | Semi-fine fog |
| Mean Droplet Diameter | 132–151 μm |
| Standard Pressure | 3.5 MPa |
| Spray Capacity (Flow-rate) | 16.7–167 L/min |
| Spray Angle | 90–130º |
- Materials: Click here for full material descriptions, including chemical and heat resistance.
- Fog Classification: Based on spray droplet size. Click here for details.
Resources for Download
• Large spray capacity type in SPB series (high-pressure return nozzles).
• The turndown ratio of spray capacity is 1:10.
• The variation in spray droplet sizes is minimized.
Applications
- Cooling for circulating fluidized bed flue gas desulfurization
Industries where this nozzle is used
- Pollution control
