Off-center Even Flat Spray Nozzles (Quick-detachable)
INOVVE
Plastic off-center flat spray nozzles produce a unidirectional spray flow in a multi-nozzle arrangement, preventing liquid puddles and residual foreign materials.
Nozzle tips are quick-detachable to reduce maintenance time.
Learn more about typical applications in this FAQ:
Using One-Sided Flat Spray Pattern Nozzles Effectively
Specs
| Liquid Inlet Thread Size | R1/8, R1/4, R3/8 |
|---|---|
| Main Material | Nozzle tip: PP, Adaptor: PP or PPS |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 600–800 μm |
| Standard Pressure | 0.3 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 3.00–5.00 L/min |
| Spray Angle at Standard Pressure | 45º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download

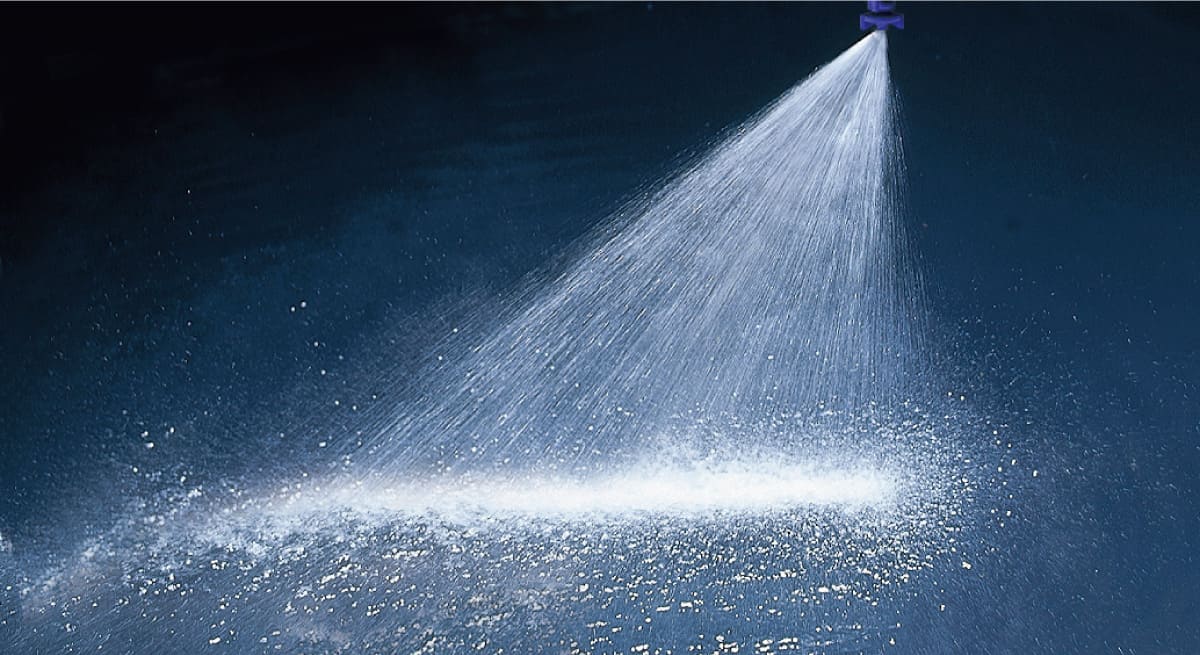

• Off-center flat spray pattern with even distribution.
• With obliquely-angled flow, INOVVE series prevents accumulation of spray fluid and foreign particles in multiple-arrangements.
• No need for oblique installation, as the angle is built-in.
• Quick-detachable design helps to greatly reduce maintenance time.
• Easy mounting/dismounting with a knurled tab.
• No falling off of tip or packing when removing the nozzle part.
Applications
- Cooling: Steel plates, steel pieces
- Spraying: Etchants, oils, lubricants, glues, acids, insecticides, herbicides
- Cleaning: Steel plates, steel pieces, filters, felts, screens
Industries where this nozzle is used
- Steelmaking
- Pollution control
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Agriculture
- Fisheries & Livestock
- Automotives
Structure

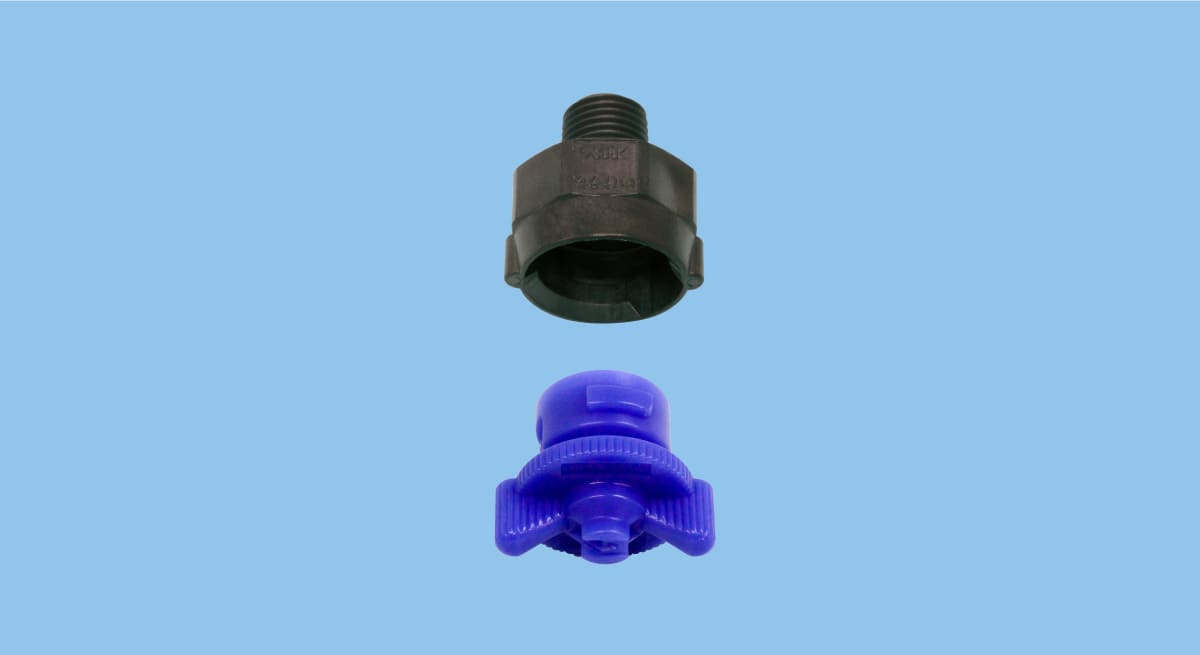

- Two-piece structure including a nozzle tip with packing and an adaptor.
- Easy installation and removal of the nozzle section with a twist of about 60ﾟ.
