Flat Spray Nozzles (Quick-detachable) INVV-SS (Stainless Steel)
Quick-detachable hydraulic flat spray nozzles with a mountain-s…
- Ceramic Orifice
- Precision Guarantee
- Quick-detachable
- Cleaning
- Industrial Cooling
- Spraying
- Water Curtain
- Agriculture, Forestry and Fisheries
- Automotives
- Electronics
- Food
- Machinery
- Paper
- Pollution Control
- Printing
- Pulp
- Steel
- Transportation
Flat Spray Nozzles (Quick-detachable)
INV
Quick-detachable hydraulic flat spray nozzles with a mountain-shaped spray distribution and gradually tapered edges, featuring a wear-resistant ceramic orifice. The heat-resistant temperature is 60ºC.
Specs
| Liquid Inlet Thread Size | R1/4 |
|---|---|
| Main Material | S303 |
| Max. Temperature | 60℃ |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 280–640 μm |
| Standard Pressure | 0.3 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 2.0–8.0 L/min |
| Spray Angle at Standard Pressure | 50º, 65º, 80º, 90º, 115º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download
• Flat spray pattern with a mountain-shaped spray distribution having gradually tapered edges.
• Quick-detachable design helps to greatly reduce maintenance time.
• Easy mounting/dismounting with a knurled tab.
• No falling off of tip or packing when removing the nozzle part.
• Nozzle body and adaptor are made of stainless steel which provides high heat resistance and durability.
• Nozzle orifice is made of high wear resistant ceramic.
Applications
- Cleaning: Automotives, containers, films, felts, filters, screens, bottles, crushed stones, earth and sand, metal parts, machines, steel plates and pieces
- Spraying: Oils, lubricants, glues, insecticides, herbicides
- Cooling: Tanks, roofs
- Water screen: Dust suppression, deodorization
- For the applications where precise spray alignment and/or periodic maintenance is required
Industries where this nozzle is used
- Steelmaking
- Pollution control
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Agriculture
- Fisheries & Livestock
- Automotives

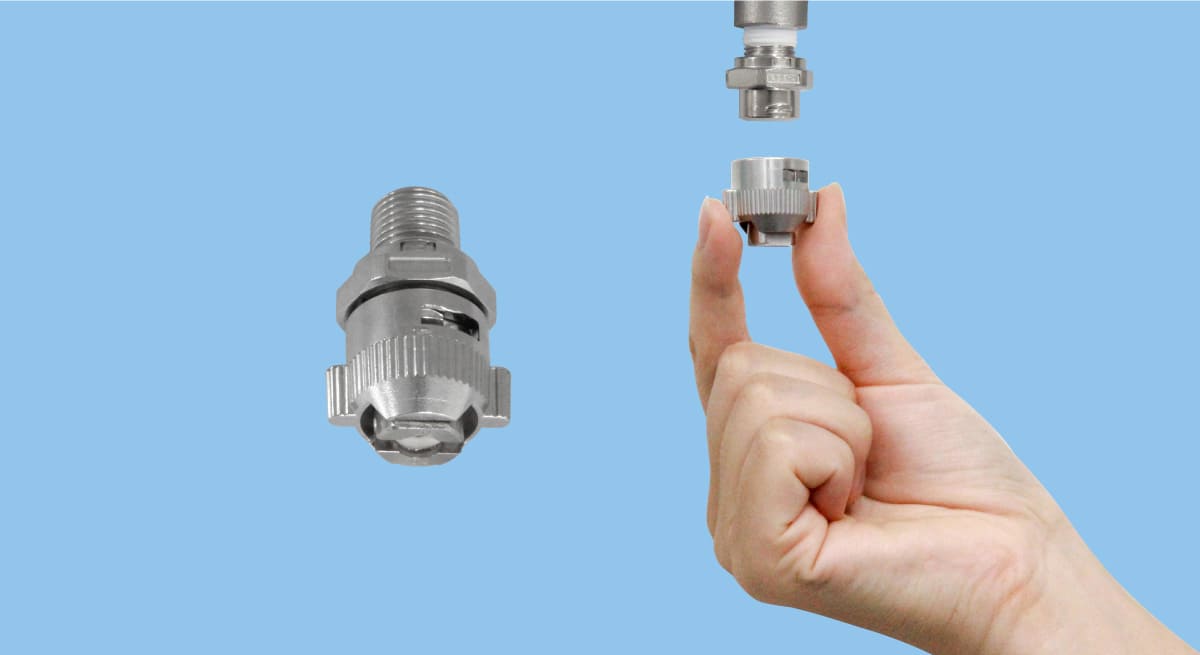

Structure
- Has a ceramic orifice in the nozzle tip.
- Include a nozzle section (nozzle tip + cap + packing) and an adaptor.
- Worn-out nozzle tips and other parts are available separately for replacement.
- Easy installation and removal of the nozzle section with a twist of about 90ﾟ.
- Tip or packing will not fall out when the nozzle section is removed.
