Flat Spray Nozzles (Quick-detachable)
INVV (Plastic)
Plastic hydraulic flat spray nozzles with a mountain-shaped spray distribution.
The quick-detachable nozzle tips reduce maintenance time and are color-coded for easy identification of spray flow rates.
Specs
| Liquid Inlet Thread Size | R1/8, R1/4, R3/8 |
|---|---|
| Main Material | Nozzle tip: PP, Adaptor: PP or PPS |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 160–350 μm |
| Standard Pressure | 0.3 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 0.5–5.0 L/min |
| Spray Angle at Standard Pressure | 50º, 65º, 90º, 115º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Related FAQ: What are the key differences between conventional threaded spray nozzles and quick-detach nozzles?
Resources for Download

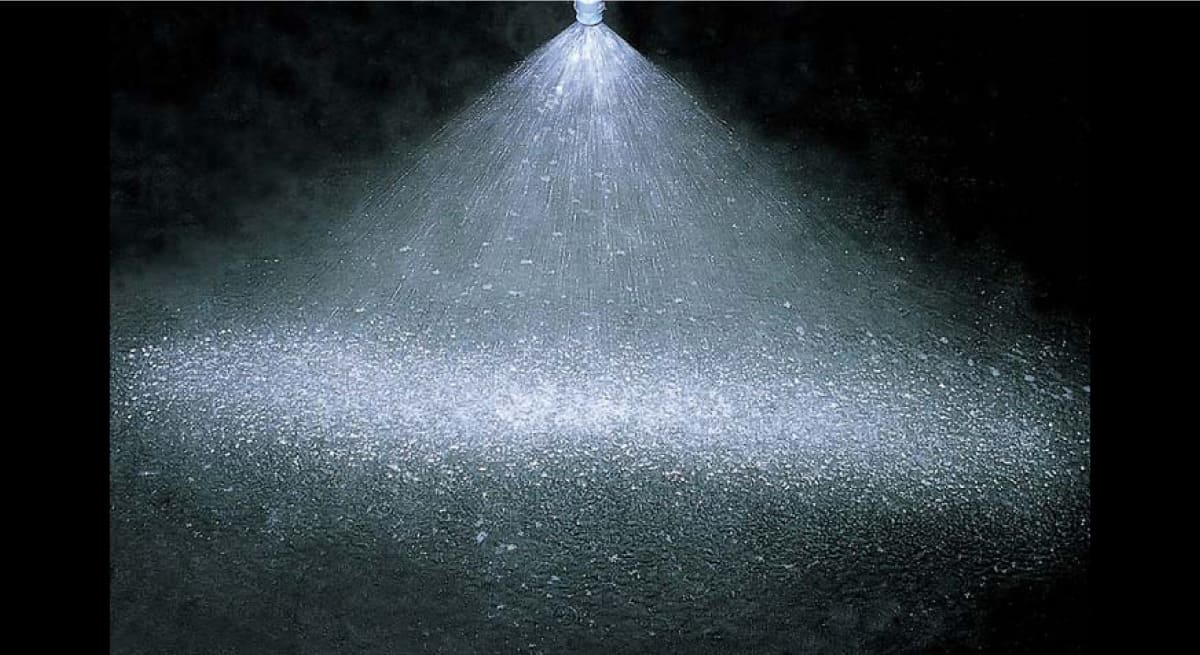

• Flat spray pattern with a mountain-shaped spray distribution having gradually tapered edges.
• Quick-detachable design helps to greatly reduce maintenance time.
• Easy mounting/dismounting with a knurled tab.
• No falling off of tip or packing when removing the nozzle part.
• Made of high chemical and heat resistant PP (polypropylene).
• Nozzle tips are color-coded by spray capacity for easy identification.
Applications
- Cleaning
- Etching
- Stripping
- For the applications where precise spray alignment and/or periodic maintenance is required
Industries where this nozzle is used
- Steelmaking
- Pollution control
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Agriculture
- Fisheries & Livestock
- Automotives
Structure

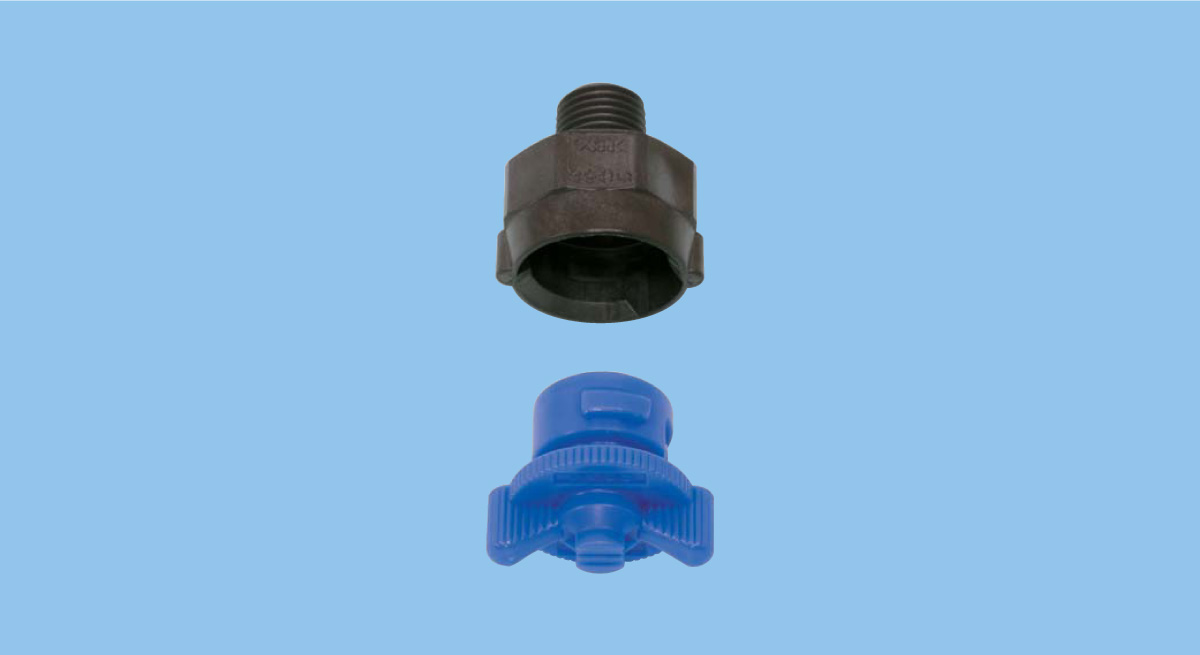

- Two-piece structure including a nozzle tip with packing and an adaptor.
- Easy installation and removal of the nozzle tip with a twist of about 60ﾟ.
