Quick-installation Nozzles
ISQB

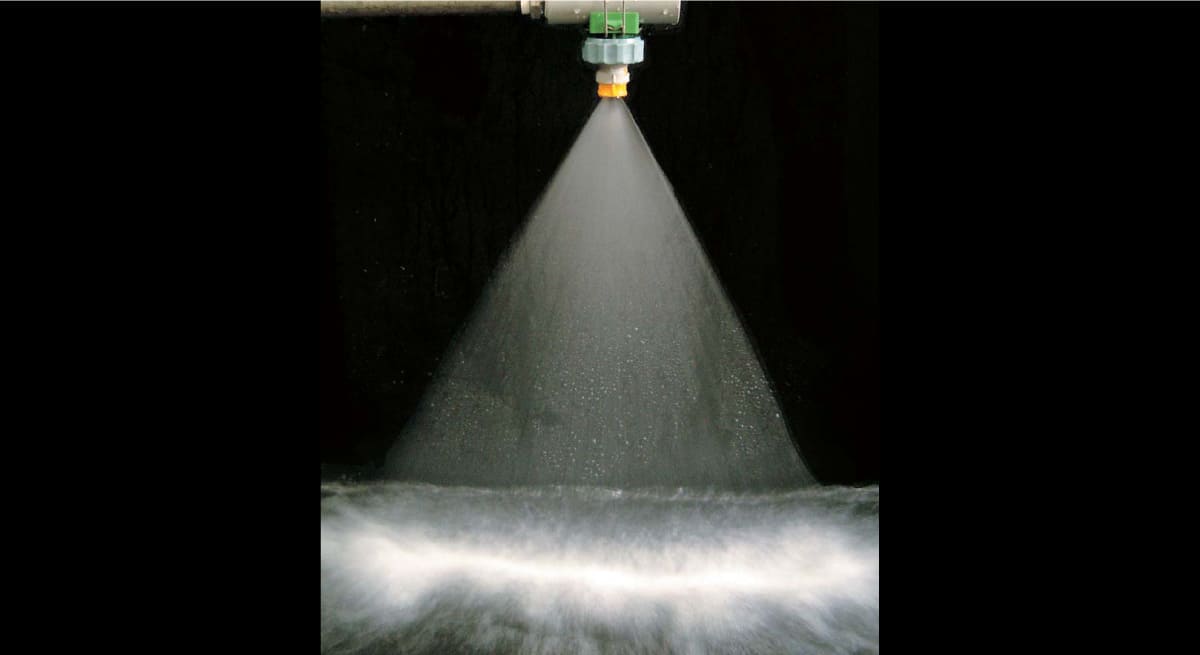

Hydraulic flat spray nozzles comprising a quickly installable adaptor to a pipe and an easily attachable nozzle tip. The ball section inside the adaptor allows for adjusting the spray direction within a range of 50 degrees.
This series has been discontinued and replaced with the INQB series. The nozzle and ball sections of this series are not compatible with those of the INQB series.
Specs
| Liquid Inlet Thread Size | 1–2inch (ISQB for metal pipes), 25–50A ND (ISQB for PVC pipes) *1 |
|---|---|
| Main Material | FRPP |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 430–800 μm |
| Standard Pressure | 0.3 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 8.00–39.0 L/min |
| Spray Angle at Standard Pressure | 40º, 65º, 80º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) 40A, 50A adaptors for PVC pipes are the same as 1 1/2", 2" adaptors for metal pipes.
Resources for Download
• Flat spray pattern with a mountain-shaped spray distribution having gradually tapered edges.
• Easy installation just by drilling a hole (φ14.3 mm) on a pipe and inserting a nozzle.
• Easy assemble and maintenance by quick detachable nozzles.
• Adaptors, color-coded by size, are available in 1", 1*1/4 ", 1*1/2 ", 2", 25A, and 30A.
• Nozzle tips are also color-coded by spray capacity for easy identification.
• Adjust spray direction within 50 degrees as desired.
Applications
- Pre-treatment for painting: Car, home electric appliances
- Cleaning: water rinsing after acid treatment of steel plates, water rinsing process in food factory
Industries where this nozzle is used
- Steelmaking
- Machinery
- Food
- Automotives
Structure

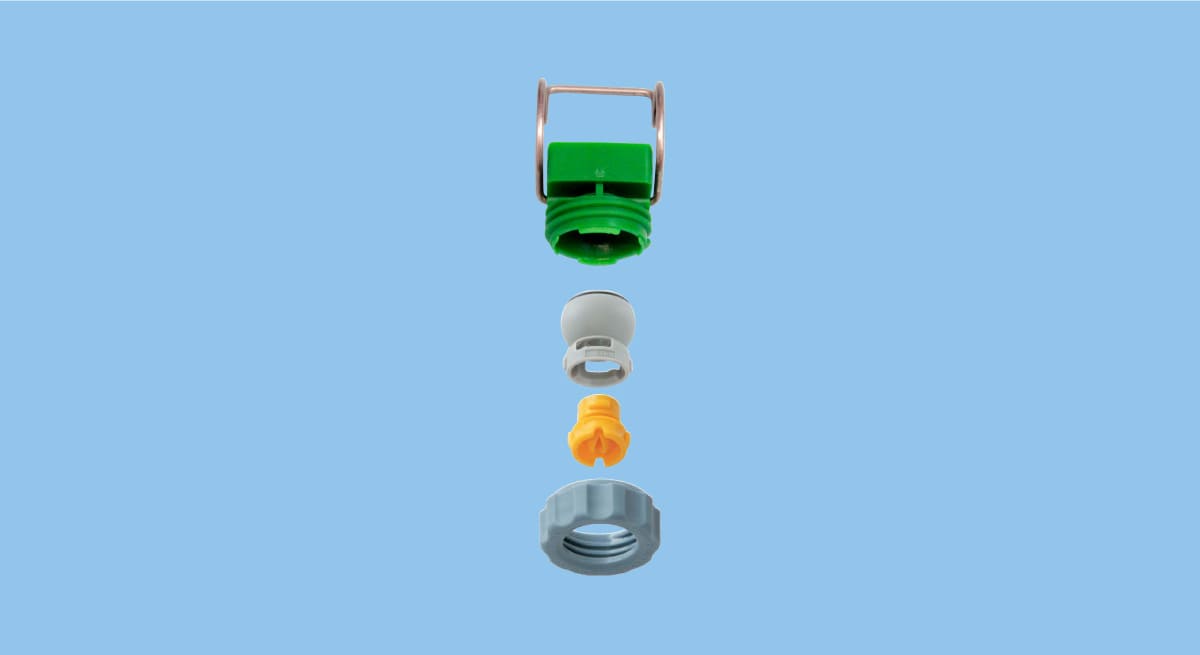

- Includes a nozzle tip, ball section, and adaptor. Worn-out nozzle tips can be replaced separately.
