Hollow Cone Spray Nozzles (Three-piece Structure)
K
Hydraulic hollow cone spray nozzles, which use ceramic as the primary material for internal parts, provide excellent wear resistance. Additionally, all models come with a built-in strainer.
Specs
| Liquid Inlet Thread Size | R1/4 |
|---|---|
| Main Material | S303 |
| Spray Droplet Measuring Method | Immersion sampling method |
| Fog Classification | Semi-fine fog |
| Mean Droplet Diameter | 80-380 μm |
| Standard Pressure | 0.3 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 0.06-1.80 L/min |
| Spray Angle at Standard Pressure | 80º |
- Materials: Click here for full material descriptions, including chemical and heat resistance.
- Fog Classification: Based on spray droplet size. Click here for details.
Resources for Download

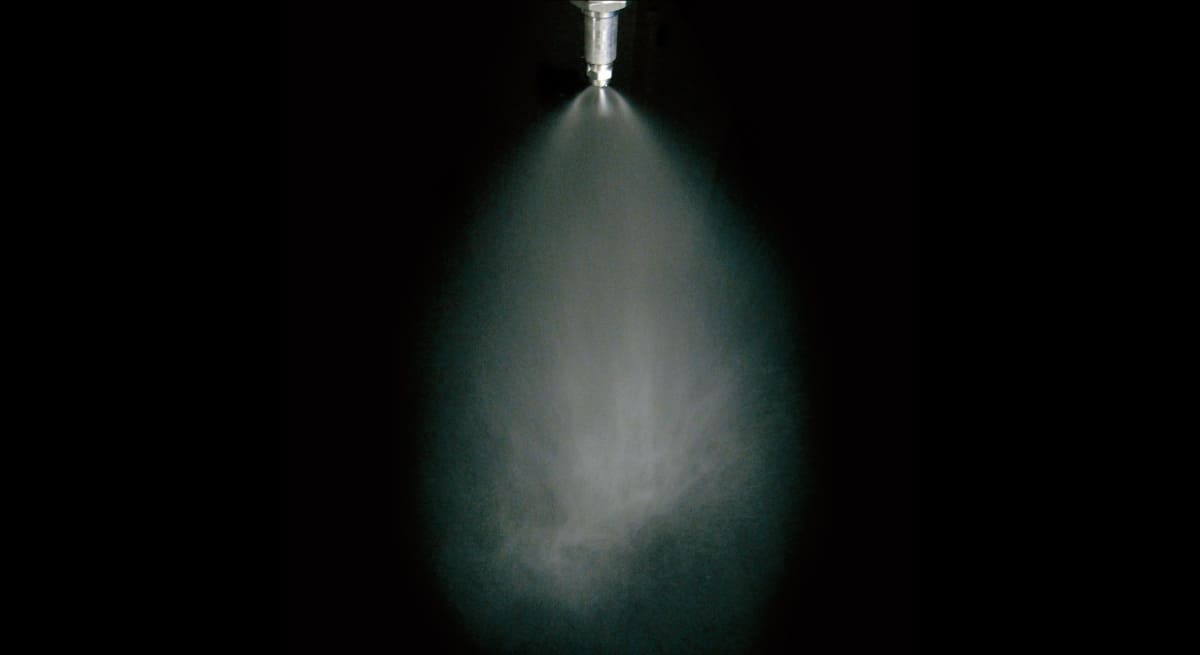

• Low flow rate hollow cone spray nozzle.
• Semi-fine atomization.
• The whirl chamber is formed by a ceramic orifice and closer, which provides excellent wear resistance.
Applications
- Humidifying: Air handling units
- Cooling: Gas, metals
- Spraying: Chemicals
Industries where this nozzle is used
- Pollution control
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food

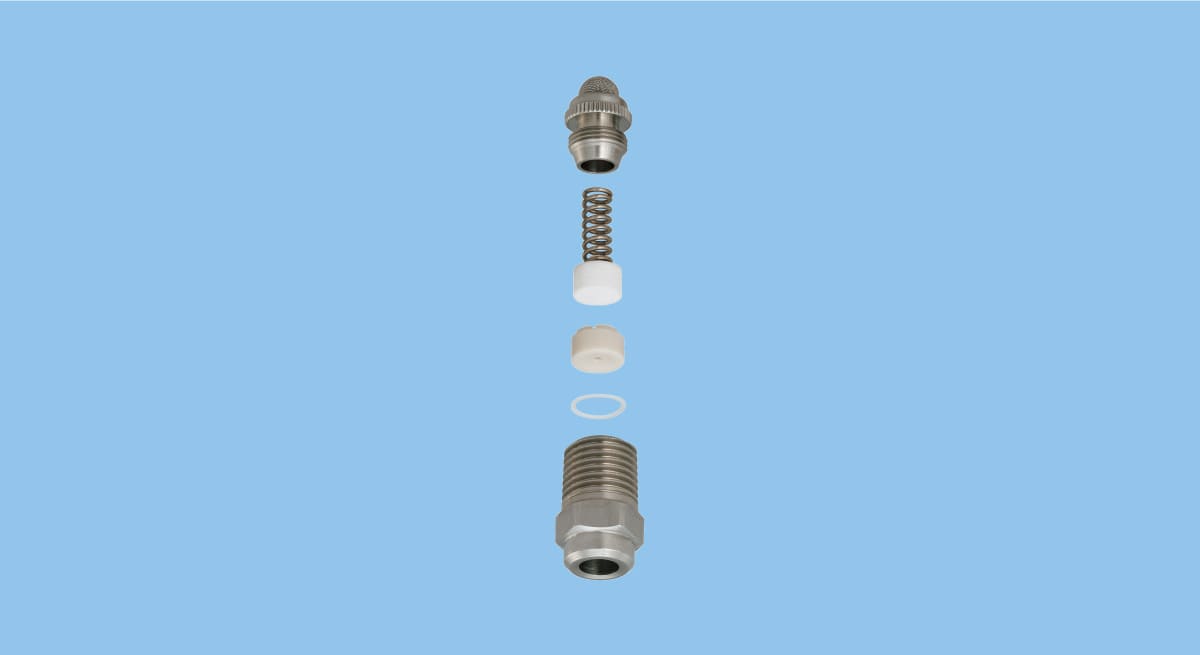

Structure
- Nozzle orifice and closer are made of ceramic.
- All models include a built-in strainer.
