Solid Stream Spray Nozzles (Self-cleaning)

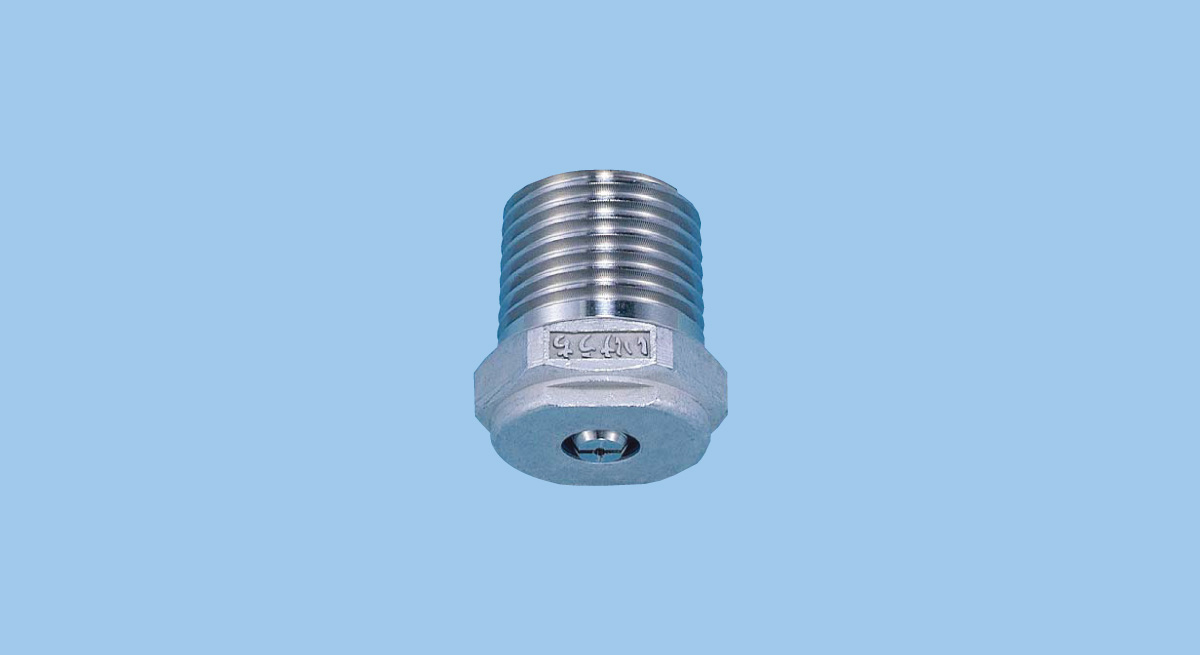

MOMOJet-C
Hydraulic solid stream nozzles with a self-cleaning mechanism producing a straight liquid stream.
When the spray pressure drops to 0.03 MPa or lower, the nozzle tip opens widely to purge clogged foreign substances.
Specs
| Liquid Inlet Thread Size | R1/2 |
|---|---|
| Main Material | S303 |
| Standard Pressure | 1 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 1.00–6.50 L/min |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Caution for Use:
- To start spraying, a flow rate of about 9 L/min at 0.02–0.03 MPa is required for all models. Make sure to select an appropriate pump.
- MOMOJet is designed to start spraying when the pressure is greater than 0.1 MPa. Use MOMOJet at a pressure of 0.2 MPa or higher.
- Since MOMOJet series nozzles have moving nozzle tips, the spray capacity is only guaranteed within +/-10% at standard pressure.
Resources for Download

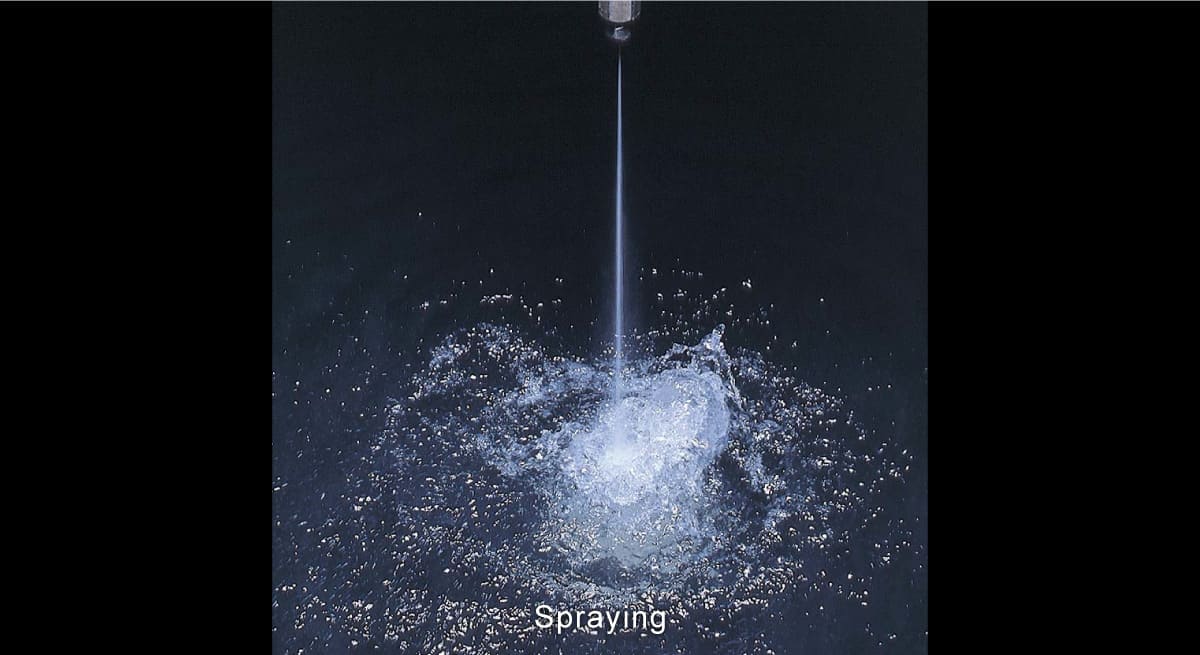

• High impact solid stream.
• If clogged, by reducing the pressure to 0.03 MPa, the nozzle tip is retracted and purges foreign particles.
By increasing the pressure to 0.2 MPa and greater, normal spraying is restored.
• Straight-through orifice is suitable for multiple nozzle arrangement.
Applications
- Cleaning: Papermaking (Wire, felt parts and rollers) steel plates, PCB
- Cooling: Steel plates
- Foam breaking: Waste water treatment
- Others: Applications where recirculated water is being used
Industries where this nozzle is used
- Paper & Pulp
- Printing
Structure
- By changing the liquid pressure, a built-in spring moves the split nozzle tip up and down and opens the orifice for purging.
