Solid Stream Spray Nozzles (with On-off Control)
SO-CC

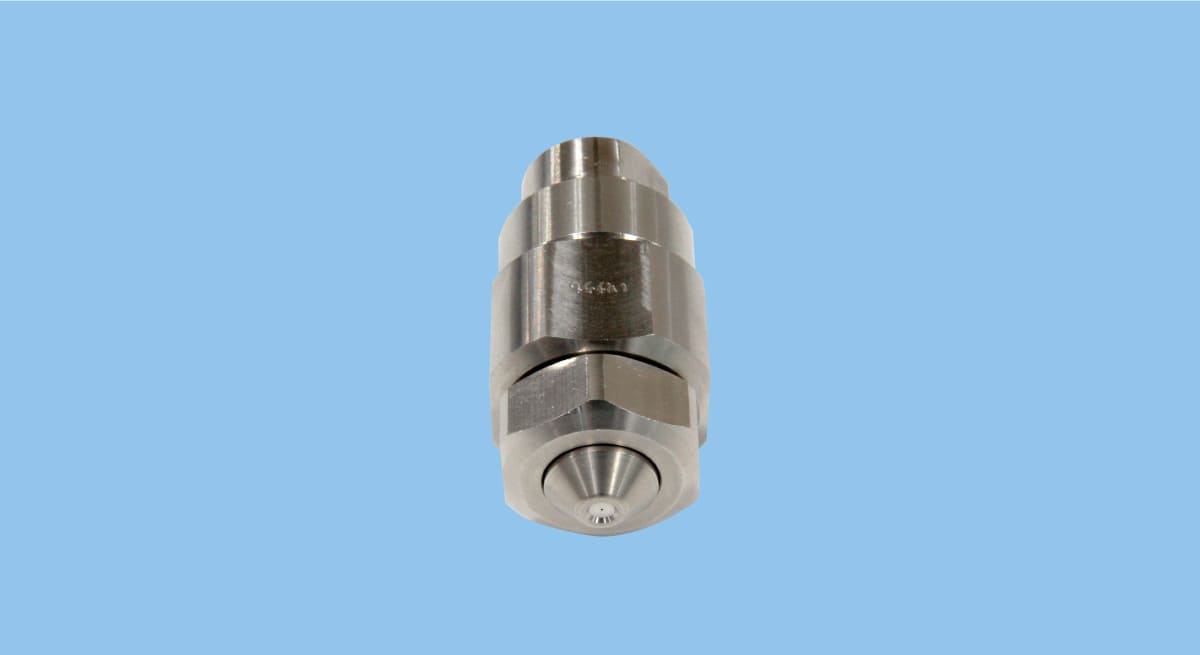

Hydraulic solid stream nozzles feature a metal nozzle tip, enabling responsive spray on-off control by connecting the pilot air.
The metal nozzle tip facilitates detection of a metallic foreign matter in the rare event of a part falling off, minimizing the risk of contamination at manufacturing sites.
Specs
| Liquid Inlet Thread Size | Rc1/8 |
|---|---|
| Pilot Air Inlet Thread Size | Rc1/8 |
| Mounting Thread Size | M8 depth 6.5 |
| Main Material | S303 |
| Standard Pressure | 0.3 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 0.07–0.73 L/min |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download

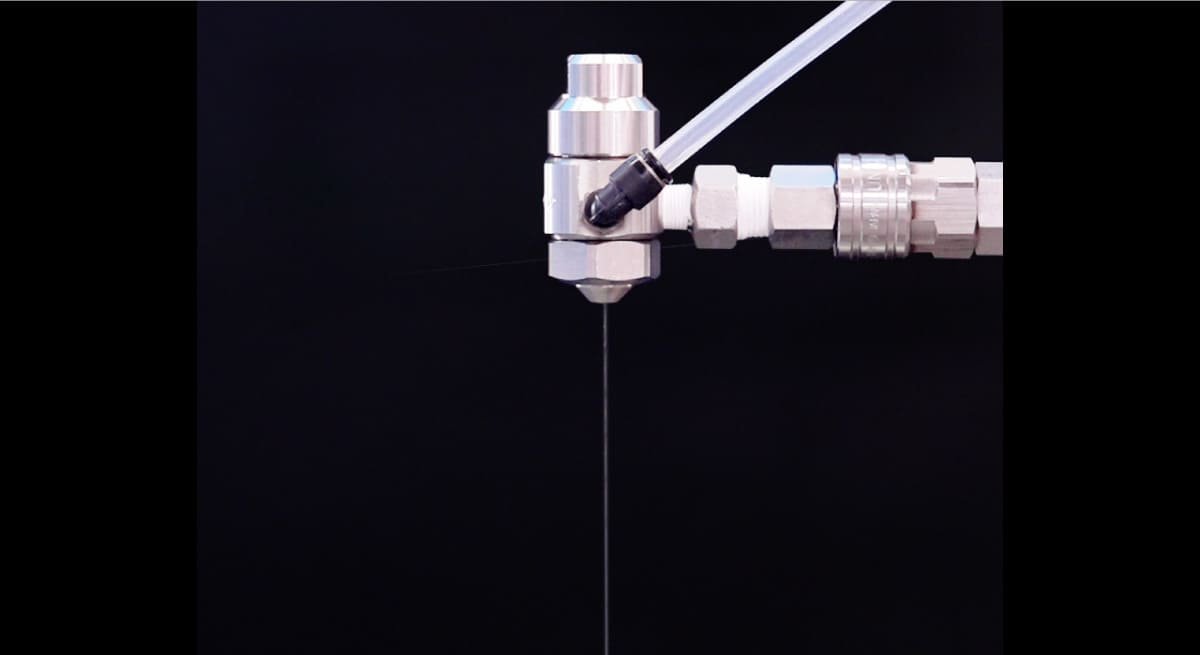

• Solid stream nozzles with high spray impact.
• Spray ON/OFF can be quickly regulated by pilot air ON/OFF.
• The metal parts allow for the detection of metallic foreign matter in the unlikely event of dropout in a manufacturing site.
• Prevents dripping after spraying stops.
Applications
- Trimming: Paper making
- Cutting: Food
- Others: Cleaning of precision machine parts, injection of chemicals, deburring
Industries where this nozzle is used
- Machinery
- Paper & Pulp
- Food
Structure
- Spray ON/OFF can be regulated by switching the pilot air ON/OFF. The pilot air activates an internal piston to regulate the spray.
