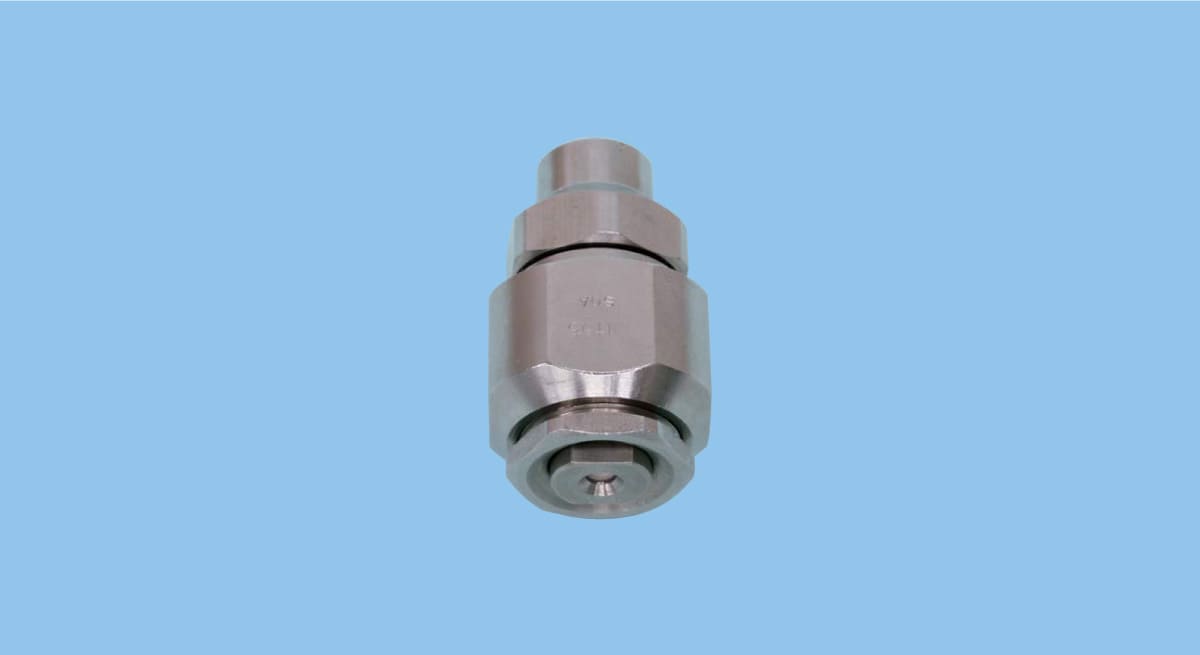

Solid Stream Spray Nozzles (with On-off Control)
SO-CM

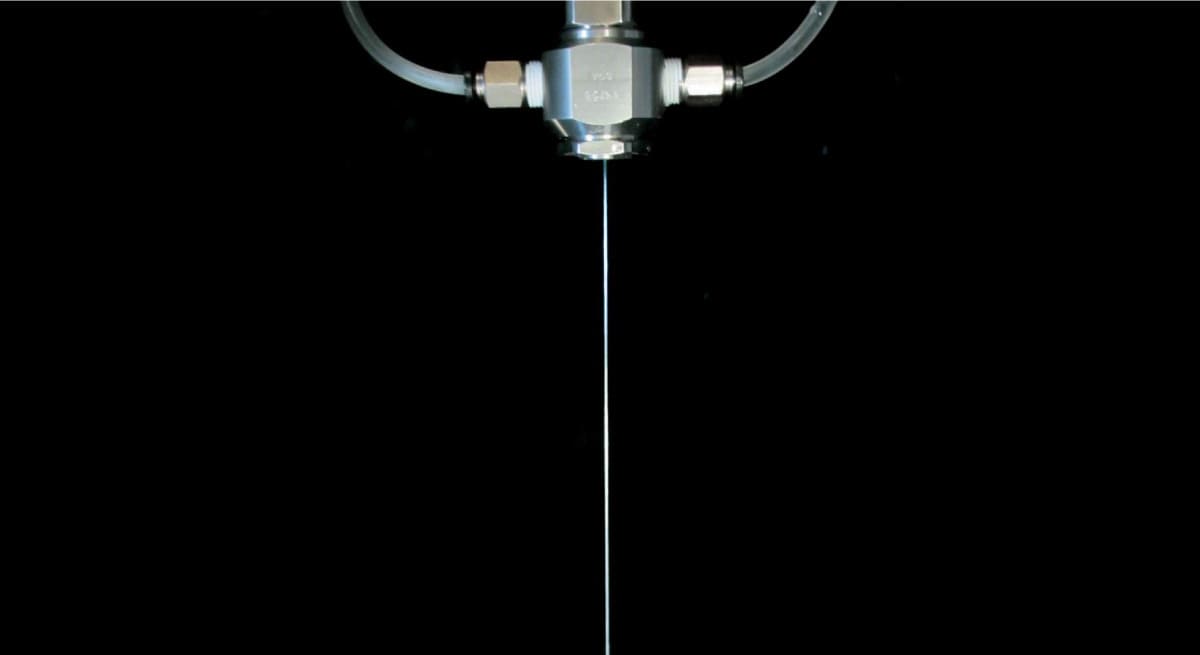

Hydraulic solid stream nozzles, featuring a wear-resistant ceramic orifice, produce a straight liquid jet.
Connecting the pilot air allows for a responsive spray on-off control.
Specs
| Liquid Inlet Thread Size | Rc1/8 |
|---|---|
| Pilot Air Inlet Thread Size | Rc1/8 |
| Mounting Thread Size | M8 depth 1.25 |
| Main Material | S303 |
| Standard Pressure | 0.3 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 0.08–0.75 L/min |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download
• Solid stream nozzles with high spray impact.
• Prevents dripping after spraying stops.
• Quick response ON/OFF spray.
• Spray ON/OFF can be regulated by pilot air ON/OFF.
Applications
- Trimming: Paper making, asbestos plate
- Cutting: Timber, food
- Others: Marking, cleaning of precision machine parts, injection of chemicals, deburring, seasoning
Industries where this nozzle is used
- Machinery
- Paper & Pulp
- Printing
- Food
Structure
- Spray ON/OFF can be regulated by switching the pilot air ON/OFF. The pilot air activates an internal piston to regulate the spray.
