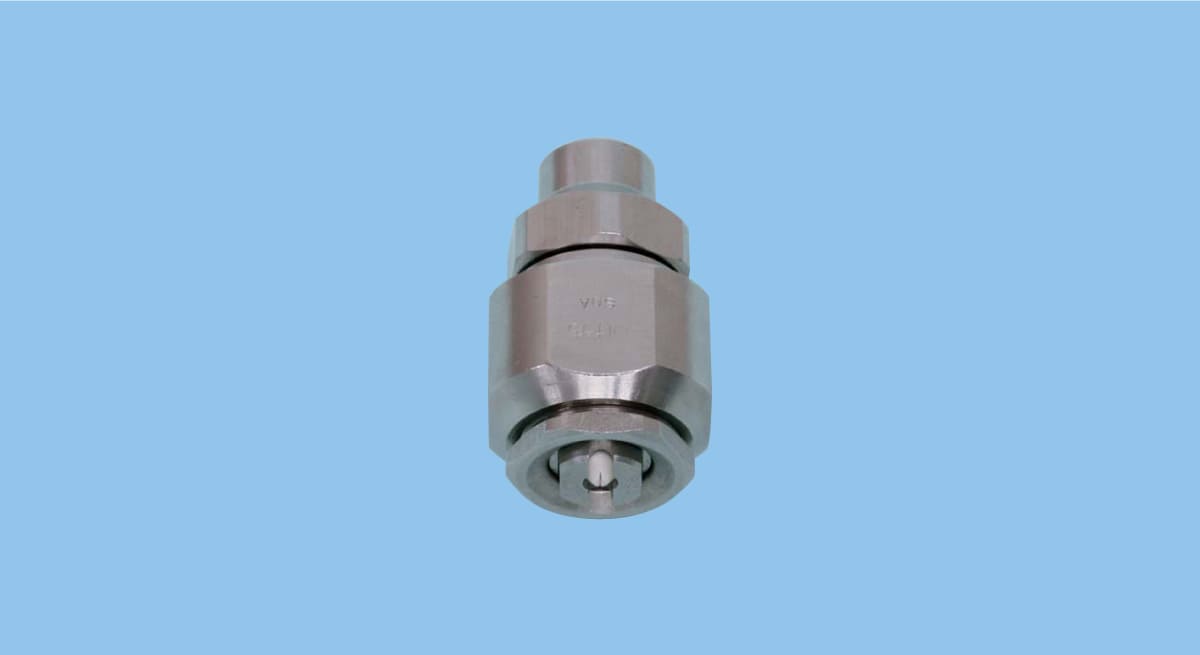

Flat Spray Nozzles (with On-off Control)
SO-V
Hydraulic flat spray nozzles, with a mountain-shaped spray distribution, featuring a wear-resistant ceramic orifice.
Connecting the pilot air allows for a responsive spray on-off control.
Explore the SO-VV Series. Unlike SO-V, SO-VV features a metal nozzle tip that facilitates detection of a metallic foreign matter in the rare event of a part falling off, minimizing the risk of contamination at manufacturing sites
Specs
| Liquid Inlet Thread Size | Rc1/8 |
|---|---|
| Pilot Air Inlet Thread Size | Rc1/8 |
| Mounting Thread Size | M8×1.25 |
| Main Material | S303 |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 140–510 μm |
| Standard Pressure | 0.3 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 0.20–2.00 L/min |
| Spray Angle at Standard Pressure | 15º, 25º, 40º, 50º, 65º, 80º, 90º, 115º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download

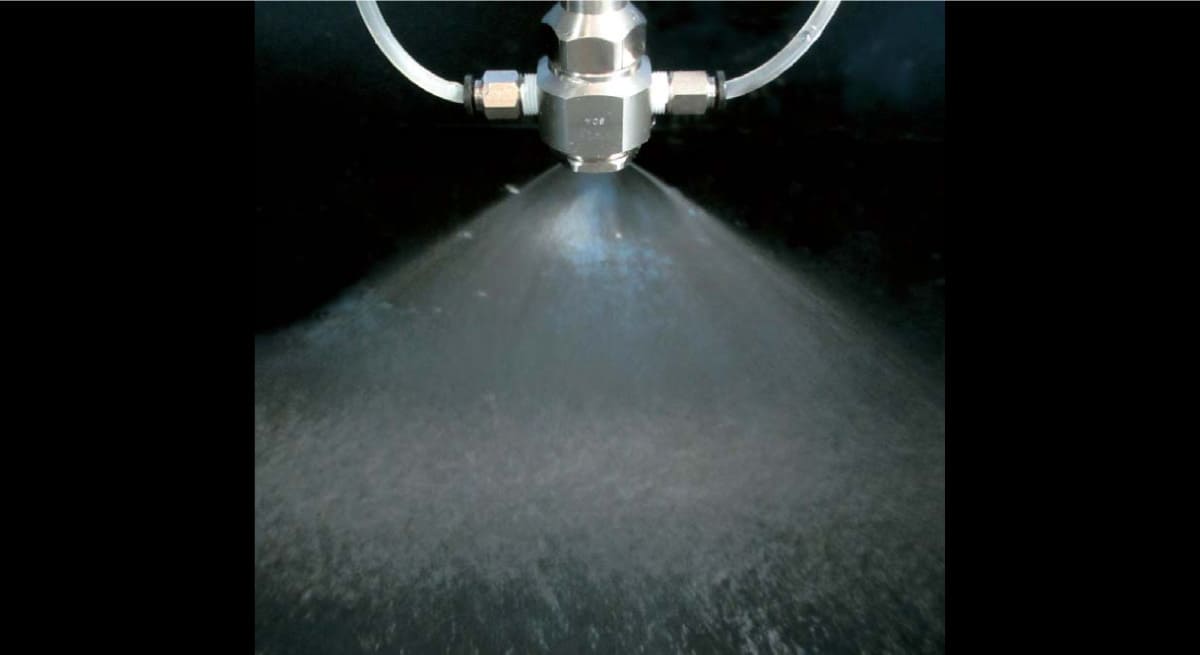

• Flat spray pattern with a mountain-shaped spray distribution having gradually tapered edges.
• Prevents dripping after spraying stops.
• Quick response ON/OFF spray.
• Spray ON/OFF can be regulated by pilot air ON/OFF.
Applications
- Coating: Release agent, lubricant, food additive (seasoning)
- Moisture control: Paper, food
Industries where this nozzle is used
- Machinery
- Paper & Pulp
- Printing
- Food
Structure
- Spray ON/OFF can be regulated by switching the pilot air ON/OFF. The pilot air activates an internal piston to regulate the spray.
