Square Spray Nozzles
SSXP
Hydraulic spray nozzles with a square spray pattern, leaving no gap between each pattern in a multi-nozzle arrangement.
Their uniform distribution and wide spray angle help cover large areas.
Specs
| Liquid Inlet Thread Size | R1/8, R1/4, Rc3/8–Rc3 |
|---|---|
| Main Material | S303, S316 *1 |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 330–1,700 μm |
| Standard Pressure | 0.2 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 2.00–700 L/min |
| Spray Angle at Standard Pressure | 90–100º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Sizes R1/8–Rc1: S303, Sizes Rc1*1/2 or larger: S316 (SCS14)
Resources for Download

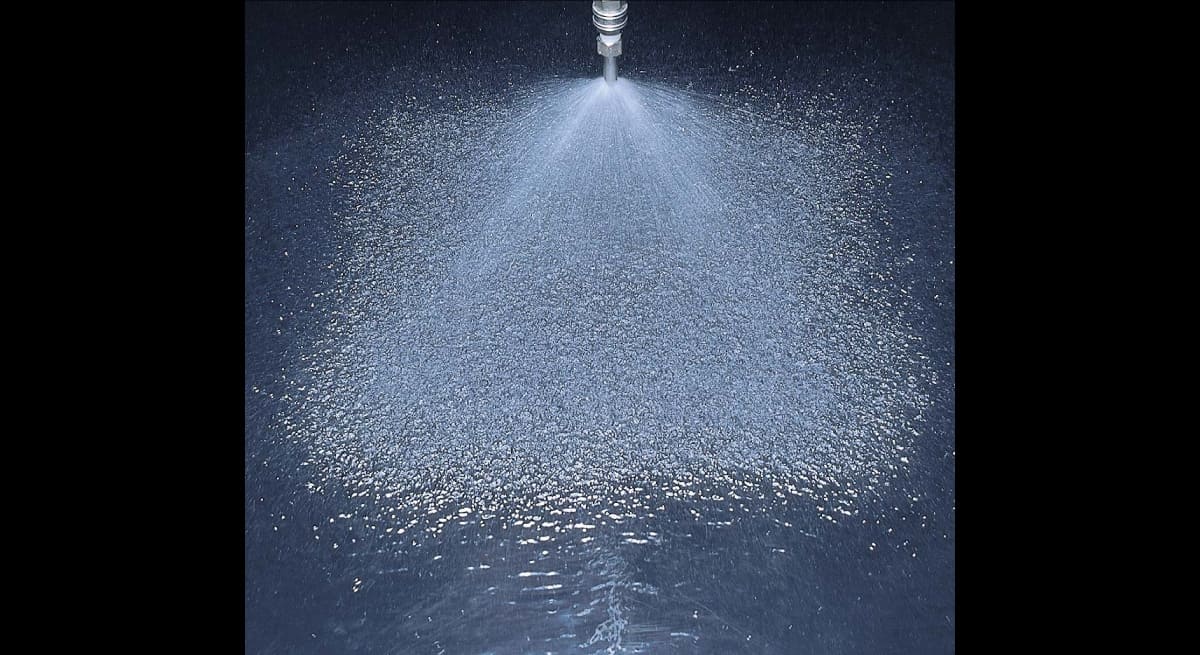

• Square full cone spray pattern with uniform distribution.
• Wide spray angle of 90–100ﾟ provides large spray coverage.
• Square full cone spray pattern leaves no gaps in multiple-nozzle arrangements.
• X-shaped whirler provides large free passage diameter, minimal clogging.
Applications
- Cleaning: Gas, incinerator fumes, machinery, eliminators, screen, tanks, parts, crushed stones, earth and sand
- Cooling: Gas, machinery, tanks, steels
- Spraying: Waste water treatment, foam breaking, fire extinguishing, dust suppression
Industries where this nozzle is used
- Steelmaking
- Pollution control

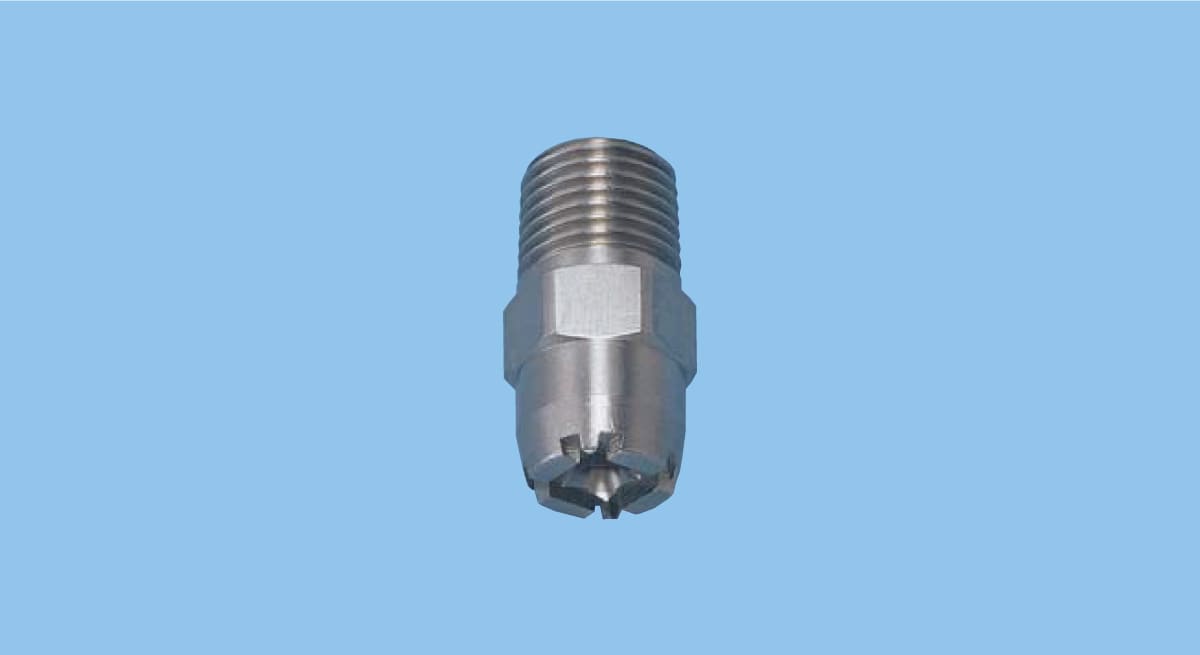

Structure
- One-piece structure with a press-fitted X-shaped whirler. Size R1/4 standard models include a C-ring.
