Spray Nozzles for Spraying Slurries
TAA
Hydraulic hollow cone spray nozzles, featuring a tangential design with the spraying axis at a 90˚ angle from the nozzle inlet, are used for spraying slurries. They maintain stable spray even at low liquid pressure thanks to their optimized design of the involute vortex chamber.
Specs
| Main Material | SiC |
|---|---|
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 1,800–3,800 μm |
| Standard Pressure | 0.07 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 200–1,200 L/min |
| Spray Angle at Standard Pressure | 67–80º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download

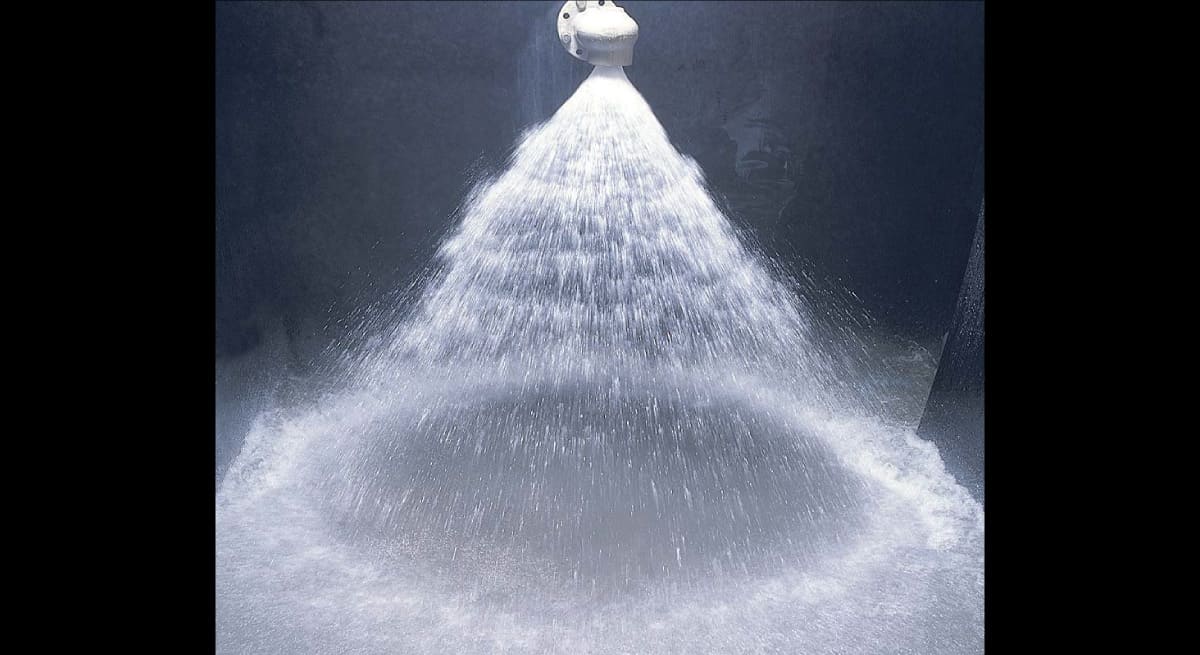

• Stable hollow cone spray pattern under low pressures owing to the involute vortex chamber design.
• Made of highly wear-resistant SiC (silicon nitride bonded silicon carbide).
• Lightweight (weighs less than a half of metal nozzle).
Applications
- Absorption tower of flue gas desulfurization equipment
- Spraying slurry
Industries where this nozzle is used
- Pollution control

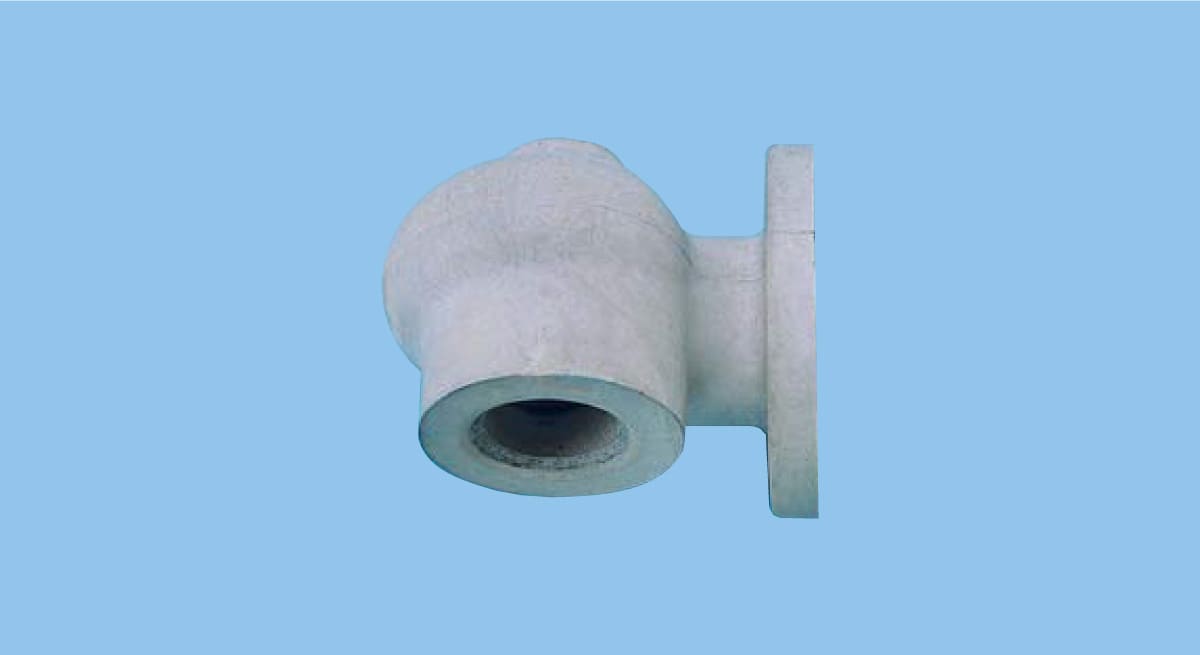

Structure
- One-piece cast-molded ceramic.
- Flanged connection.
