Descaling Nozzles DSP
Hydraulic flat spray nozzles, producing a thin and powerful spr…
- Made-to-Order
- Precision Guarantee
- Descaling
- Steel
Descaling Nozzles
TDSS

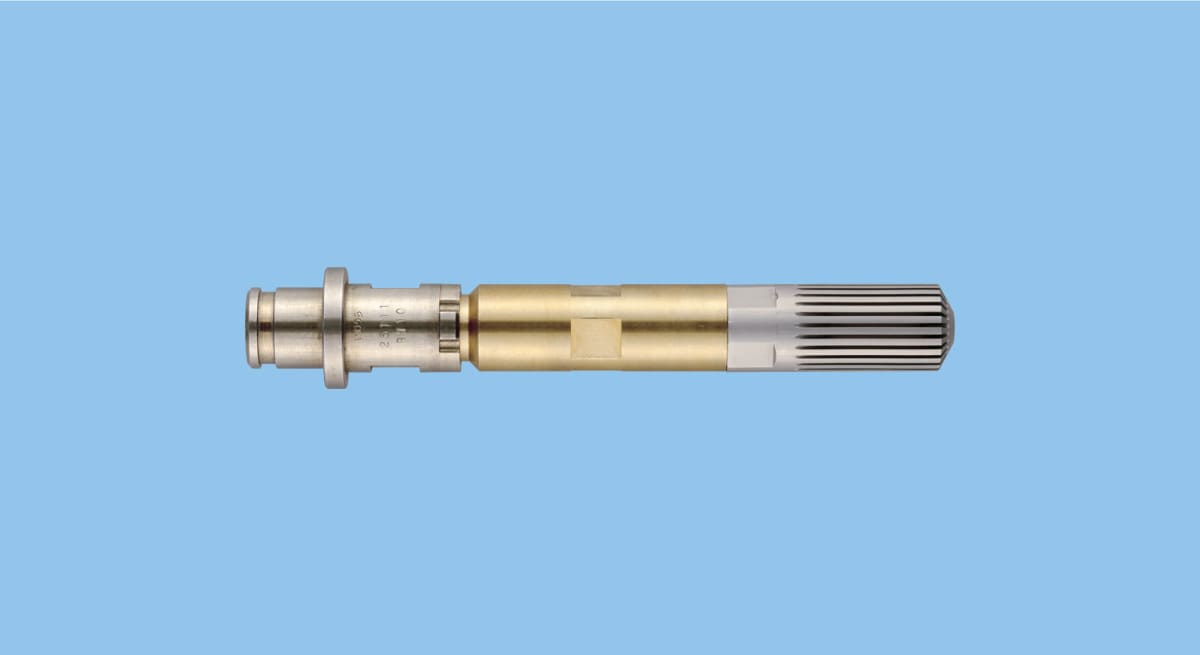

Hydraulic flat spray nozzles, producing a thin and powerful spray impact like a sharp razor, with a uniform spray distribution.
Specs
| Main Material | S303 |
|---|---|
| Standard Pressure | 15 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 15.0–138 L/min |
| Spray Angle at Standard Pressure | 20º, 25º, 28º, 32º, 35º, 38º, 40º, 44º, 45º, 65º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download
• Flat spray nozzles specially designed for descaling.
• Produces razor-like thin, sharp stream with even spray distribution and high spray impact.
• TDSS series, with much higher spray impact, increases erosion depth by 20% compared to the conventional model.
• Water-saving.
Applications

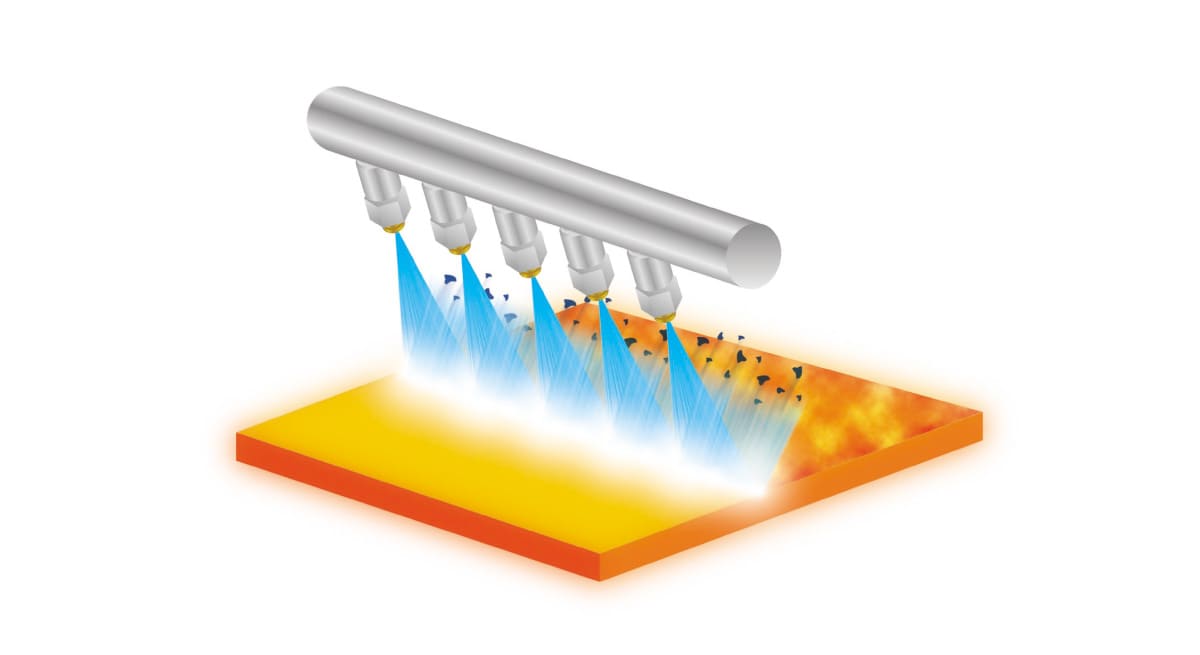

- Descaling: rolling process in steelmaking
Industries where this nozzle is used
- Steelmaking
