Wide-angle Full Cone Spray Nozzles (Multi-orifice)
TSP
Hydraulic full cone spray nozzles for fire extinguishing and fire prevention producing a spray pattern with a nearly round shape when sprayed at a height of 2 to 3 meters, covering an area 2.8–4 meters wide. They can also be used for tank interior cleaning.
Specs
| Liquid Inlet Thread Size | Rc1/2 |
|---|---|
| Main Material | S303 |
| Spray Droplet Measuring Method | Immersion sampling method |
| Fog Classification | Semi-fine fog |
| Mean Droplet Diameter | 100–200 μm |
| Standard Pressure | 5 MPa |
| Spray Capacity (Flow-rate) | 15.0–60.1 L/min |
- Materials: Click here for full material descriptions, including chemical and heat resistance.
- Fog Classification: Based on spray droplet size. Click here for details.
Resources for Download

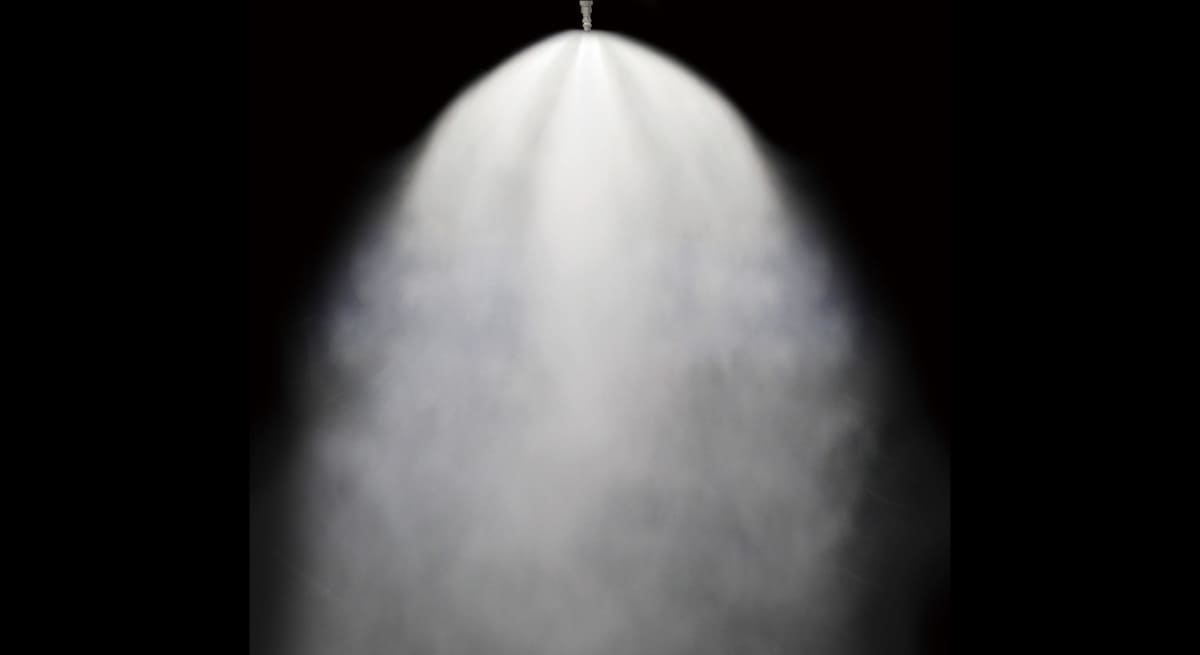

• Full cone spray pattern with a round impact area.
• Wide spray angle provides larger spray coverage.
• Ideal for fire extinguishing, fire prevention, dust suppression.
Applications
- Others: fire extinguishing
- Fire prevention
- Dust suppression
- Spraying
- Tank cleaning
Industries where this nozzle is used
- Pollution control
Structure

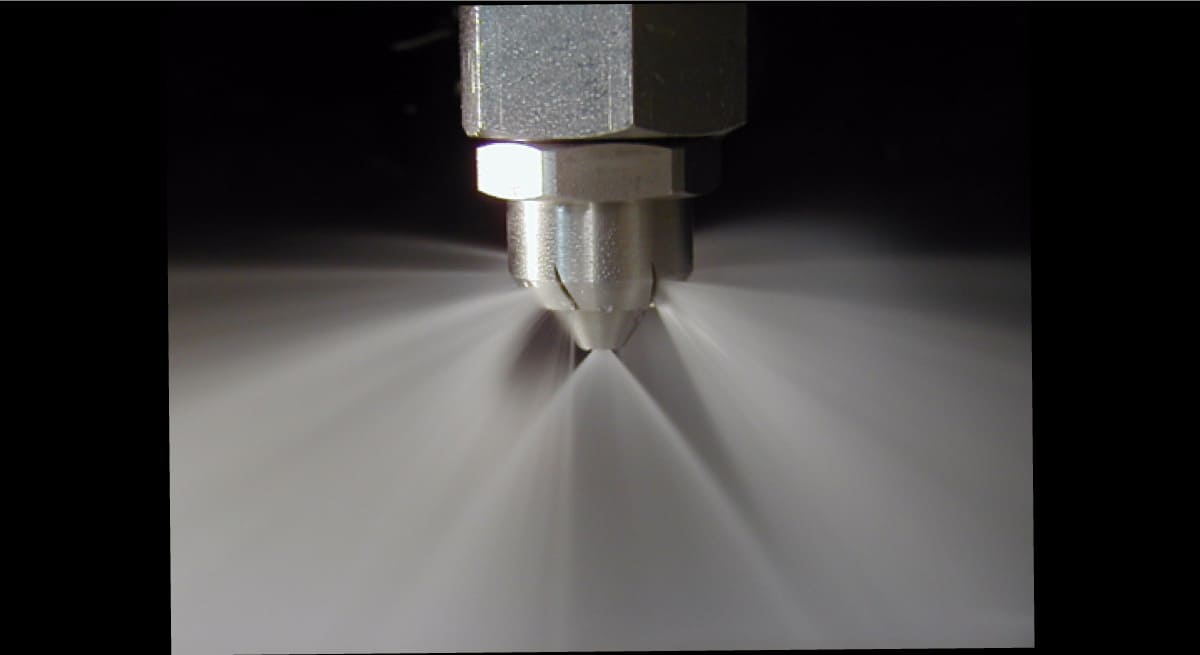

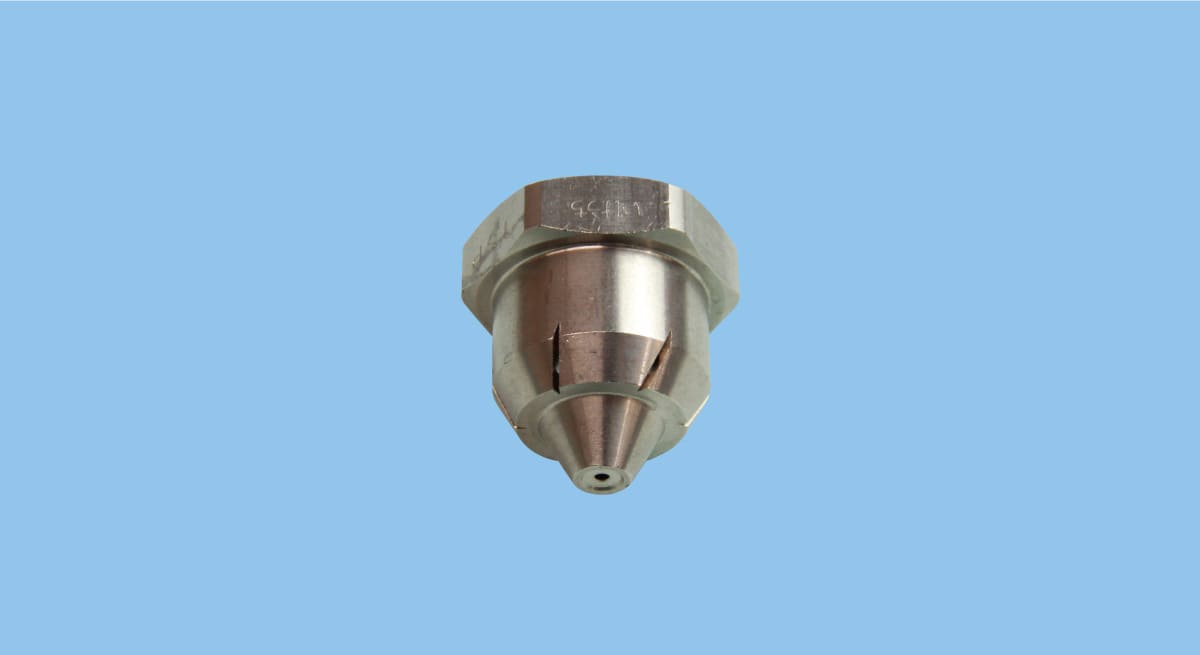

- Produces a hollow cone spray pattern from the tip of the nozzle and flat spray patterns from the side slits of the nozzle, resulting ina a nearly round impact area at a spray height of 2–3 m.
