Solid Stream Spray Nozzles (with Universal Joint)
UT+CP

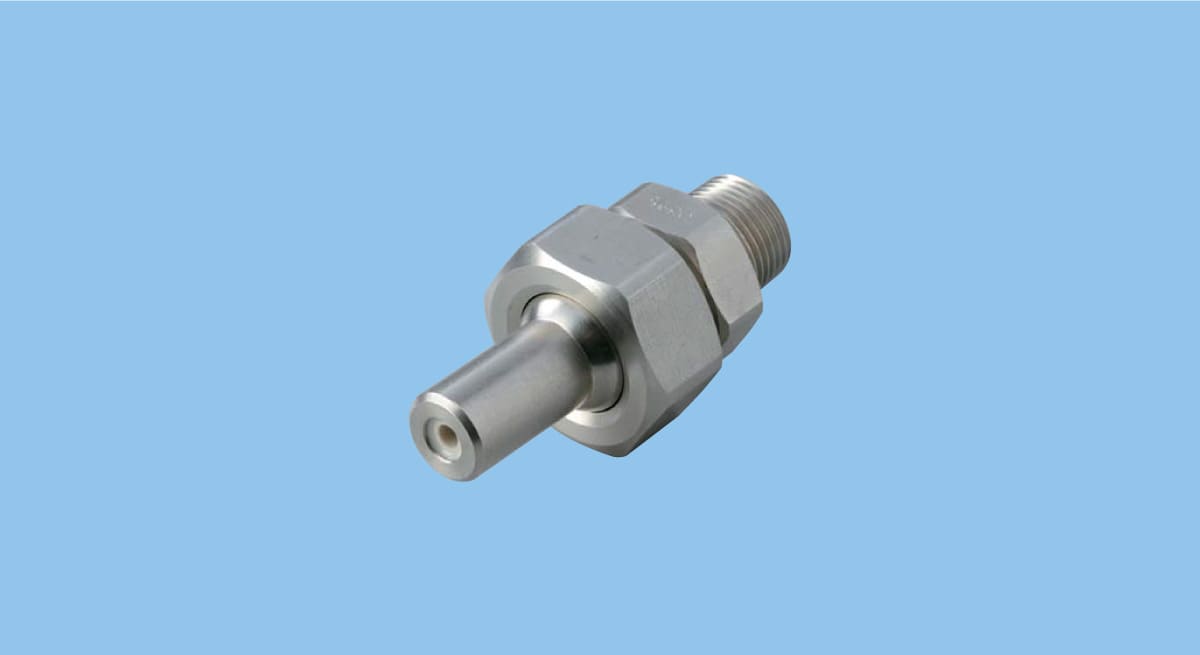

Hydraulic solid stream nozzles producing a straight liquid jet. The nozzle tip, featuring a wear-resistant ceramic orifice, is integrated with a ball joint, allowing for a 40-degree range of spray direction adjustment.
Specs
| Liquid Inlet Thread Size | R1/4 |
|---|---|
| Main Material | S303 |
| Standard Pressure | 0.3 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 1.17–14.1 L/min |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download

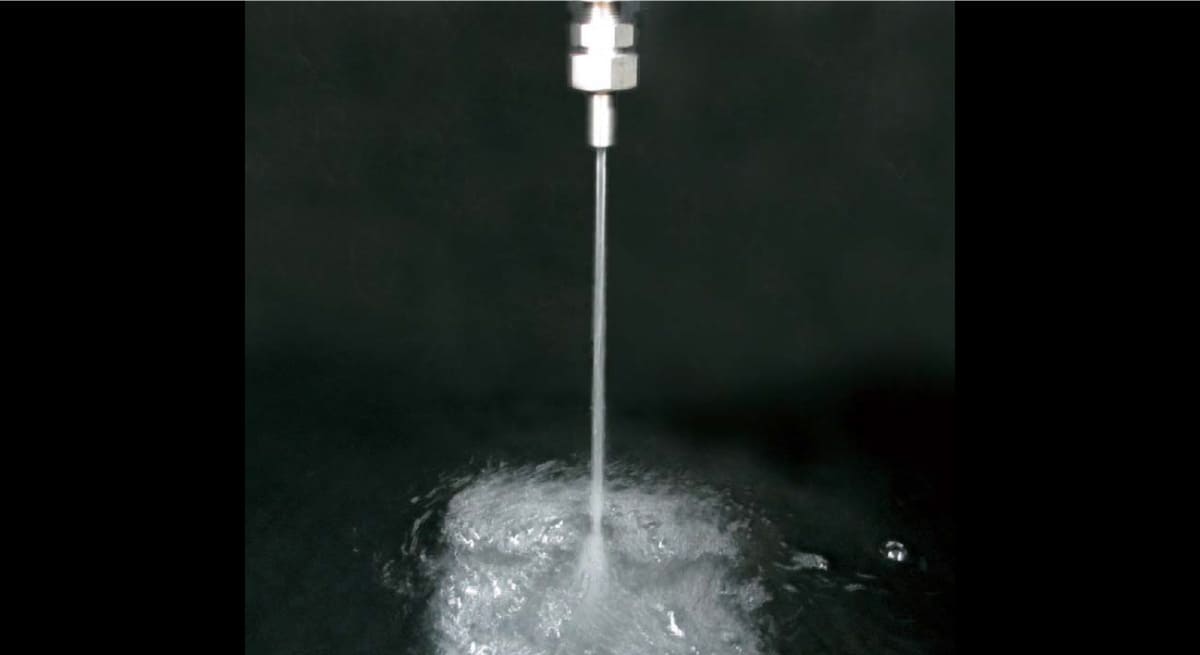

• High impact solid stream.
• Internal design keeps flow resistance to a minimum, yielding large volume flow.
• Spray direction is adjustable over a range of 40 degrees as desired.
Applications
- Cleaning: High pressure jet cleaning, wire and felt parts of paper making
- Machines, vehicles, returnable containers, machinery, parts
- Trimming: Paper making, asbestos plate
Industries where this nozzle is used
- Machinery
- Paper & Pulp
- Printing
- Food
Structure
- Has a ceramic orifice (high-purity ceramic orifice for spray capacity codes 37–136) in the nozzle tip.
- Includes three parts: Nozzle tip, cap, and adaptor. Worn-out nozzle tips can be replaced separately.
- Nozzle tip has an integrated universal ball joint to adjust the spray direction.
