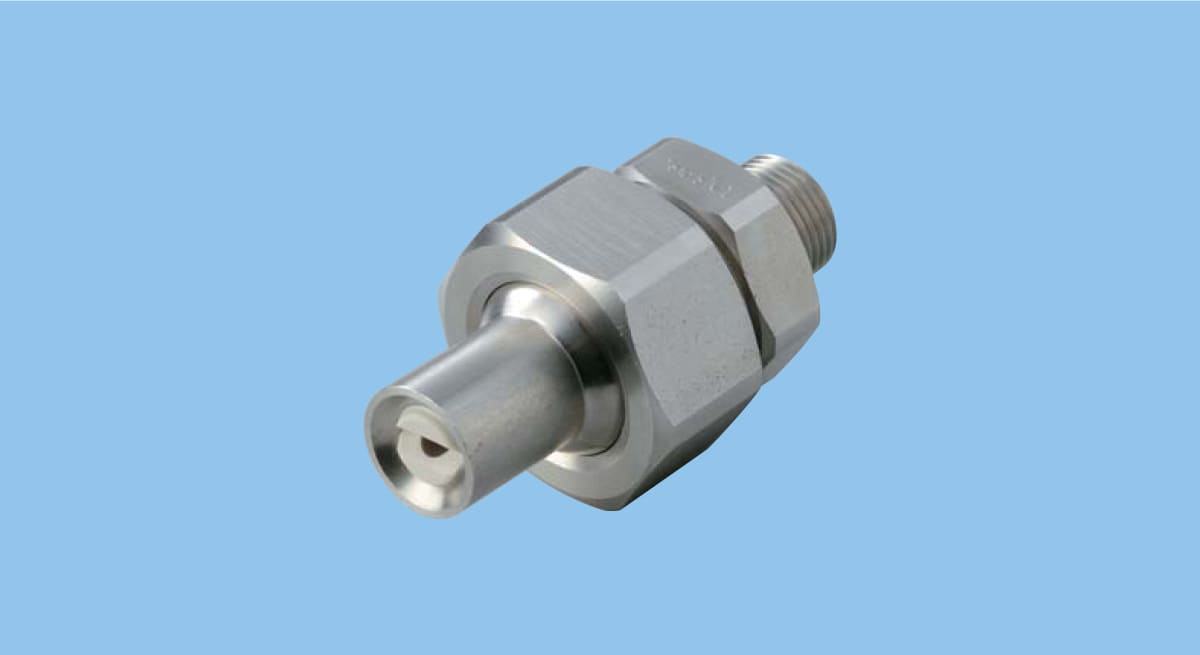

Flat Spray Nozzles (with Universal Joint)
UT+VP
Hydraulic spray nozzles with a mountain-shaped spray distribution. The nozzle tip, featuring a wear-resistant ceramic orifice, is integrated with a ball joint, allowing for a 40-degree range of spray direction adjustment.
Specs
| Liquid Inlet Thread Size | R1/4, R3/8 |
|---|---|
| Main Material | S303 |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 140–550 μm |
| Standard Pressure | 0.3 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 5.00–100 L/min |
| Spray Angle at Standard Pressure | 90º, 115º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download

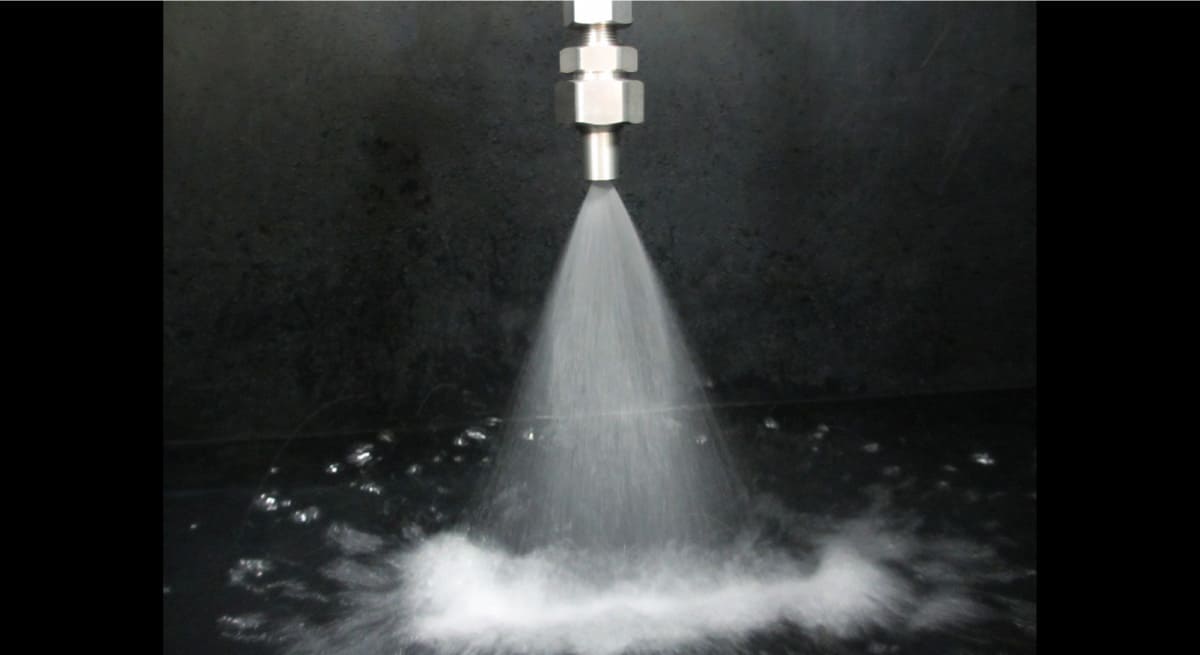

• Flat spray pattern with a mountain-shaped spray distribution having gradually tapered edges.
• Spray direction is adjustable over a range of 40 degrees as desired.
Applications
- Cleaning: Automotives, containers, films, felts, filters, screens, bottles, crushed stones, earth and sand, metal parts, machines, steel plates, steel pieces
- Spraying: Oils, lubricants, liquids, solutions, insecticides, herbicides
Industries where this nozzle is used
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Agriculture
- Fisheries & Livestock
- Automotives
Structure
- Has a ceramic orifice in the nozzle tip.
- Include three parts: Nozzle tip, cap, and adaptor. Worn-out nozzle tips can be replaced separately.
- Nozzle tip has an integrated universal ball joint to adjust the spray direction.
