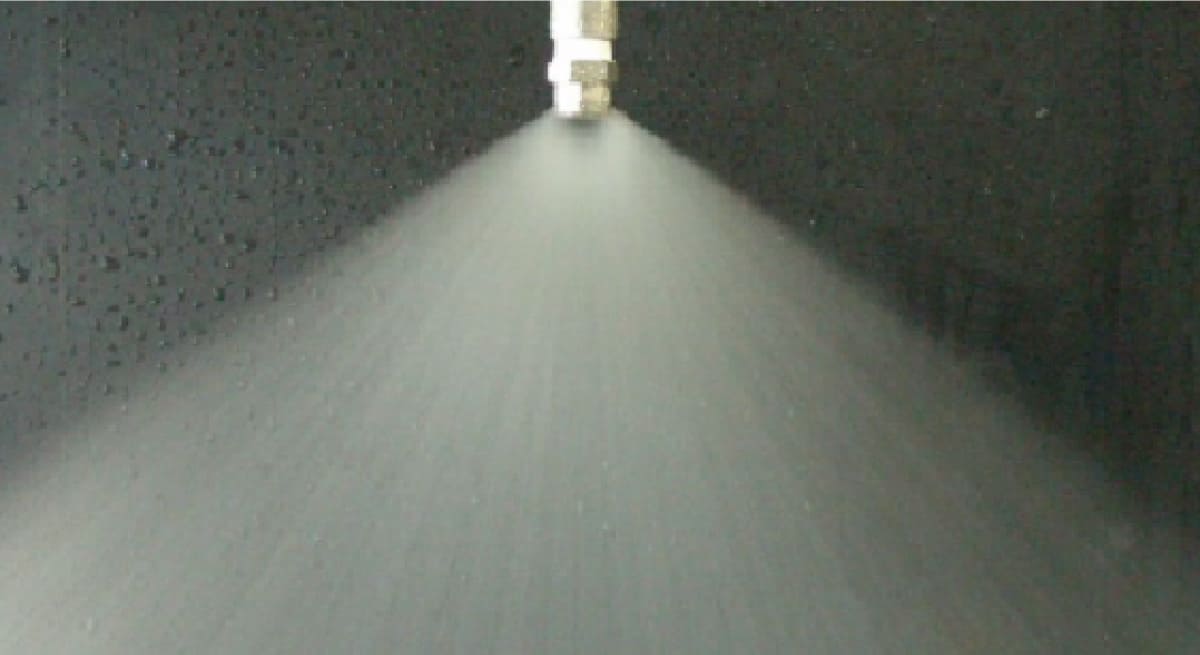

Even Flat Spray Nozzles (with High Turn-down Ratios)
VVEP-HL
Hydraulic flat spray nozzles with a high turndown ratio (the ratio of the minimum to maximum adjustable spray capacity) and a uniform spray distribution.
Specs
| Liquid Inlet Thread Size | Rc1/4, Rc3/8, Rc1*1/4 |
|---|---|
| Main Material | S303 |
| Spray Capacity (Flow-rate) | 3.00–124 L/min (at 0.3 MPa) |
| Spray Angle | 100º (at 0.3 MPa) |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download
• Even flat spray nozzles with al large turndown ratio of spray flow-rate.
• Maintains even distribution while minimizing variation in spray angle even when spray pressure is changed.
• Having a large turndown ratio, VVEP-HL series is optimal for applications where spray capacity needs to be changed depending on the spray target and applications.
Applications
- Cooling: Steel plates (upper zone and right under molding of continuous casting machines, etc.), casted steel, cast metal, extruded aluminum
- Cleaning: Steel plate cleaning after pickling
- Other: Applications which require a large turndown ratio
Industries where this nozzle is used
- Steelmaking
