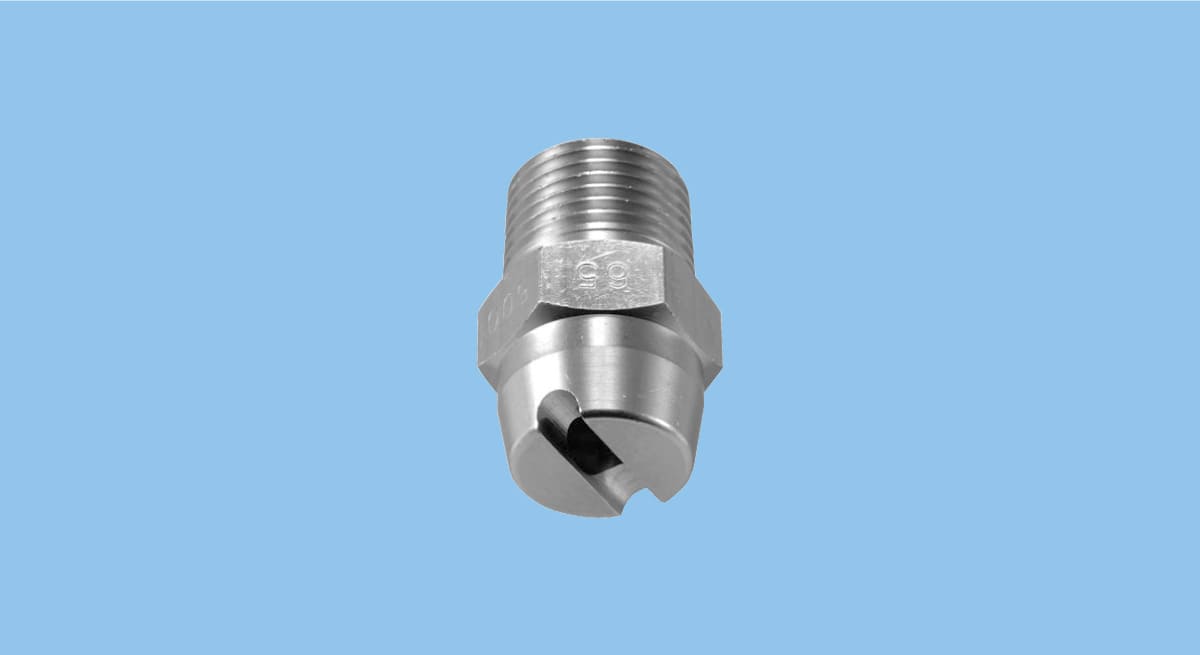

Thick Even Flat Spray Nozzles

WVVEP

Hydraulic flat spray nozzles covering a wider area, with a thick spray pattern and a uniform spray distribution.

Specs

Liquid Inlet Thread Size R1/4, R3/8, R1/2
Main Material S303
Spray Droplet Measuring Method Immersion sampling method
Mean Droplet Diameter 400-670 μm
Standard Pressure 0.3 MPa
Spray Capacity (Flow-rate) at Standard Pressure 5.00–100 L/min
Spray Angle at Standard Pressure 65º, 90º

Materials: Click here for full material descriptions, including chemical and heat resistance.

Resources for Download

3D CAD Models

Catalog

Instruction Manuals

Case Studies

• Thick flat spray nozzles with even distribution providing high spray impact and large spray area.

• Minimal clogging due to large free passage diameter and simple structure.

Applications

  • Cooling: Rolls, steel plates, rolled steel sheets, casted steel
  • Uniform cleaning in the spray thickness direction

Industries where this nozzle is used

  • Steelmaking
