Wide-angle Flat Spray Nozzles
YYP
Hydraulic flat spray nozzles, featuring a wide spray angle, are operable at low pressure (the standard being 0.15 MPa). They have larger free passage diameters compared to other hydraulic flat spray nozzles with the same flow rates, which helps minimize clogging.
Specs
| Liquid Inlet Thread Size | R1/8–R1 |
|---|---|
| Main Material | S303, PVC |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 190–1,550 μm |
| Standard Pressure | 0.15 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 0.30–250 L/min |
| Spray Angle at Standard Pressure | 100º, 115º, 120º, 130º, 135º, 140º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download

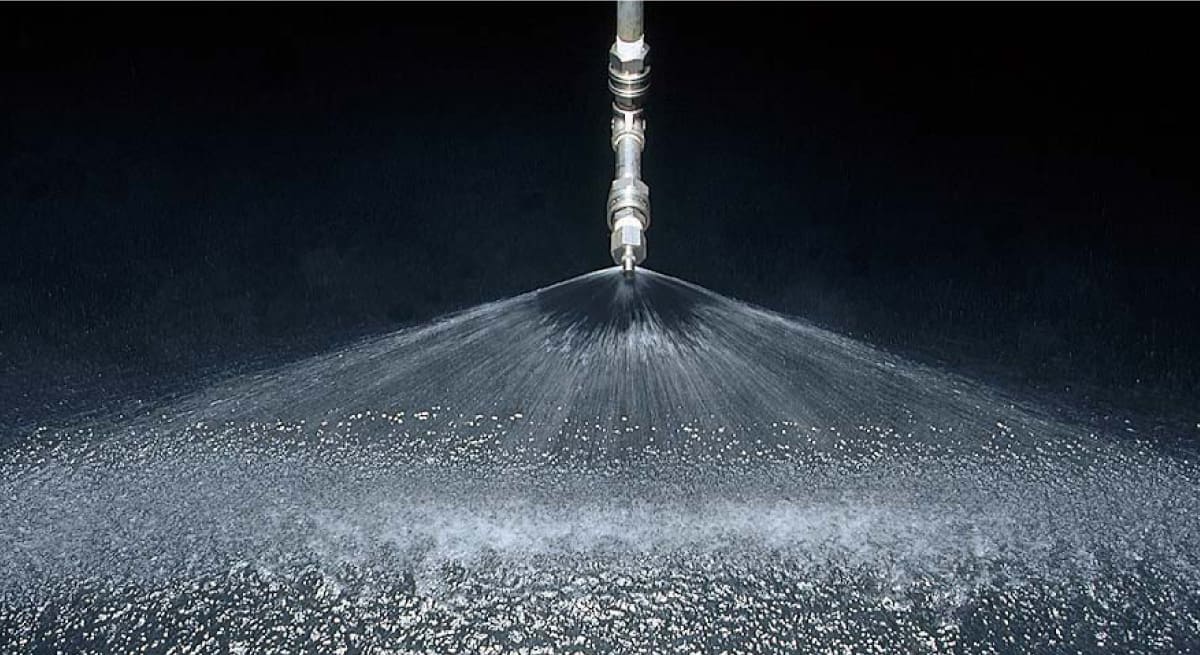

• Capable of generating wide-angle flat spray even at low liquid pressure.
• Clog-resistant
• Spray direction is 75ﾟ to the nozzle axis.
Applications
- Cleaning: Conveyor belts, film, eliminator plates, plate glass, planks
- Foam breaking: Waste water treatment, paper manufactures
- Cooling: Conveyor belts, roofs, tanks
- Water screen: Fire protection, heat protection, deodorization
Industries where this nozzle is used
- Steelmaking
- Electronics
- Food

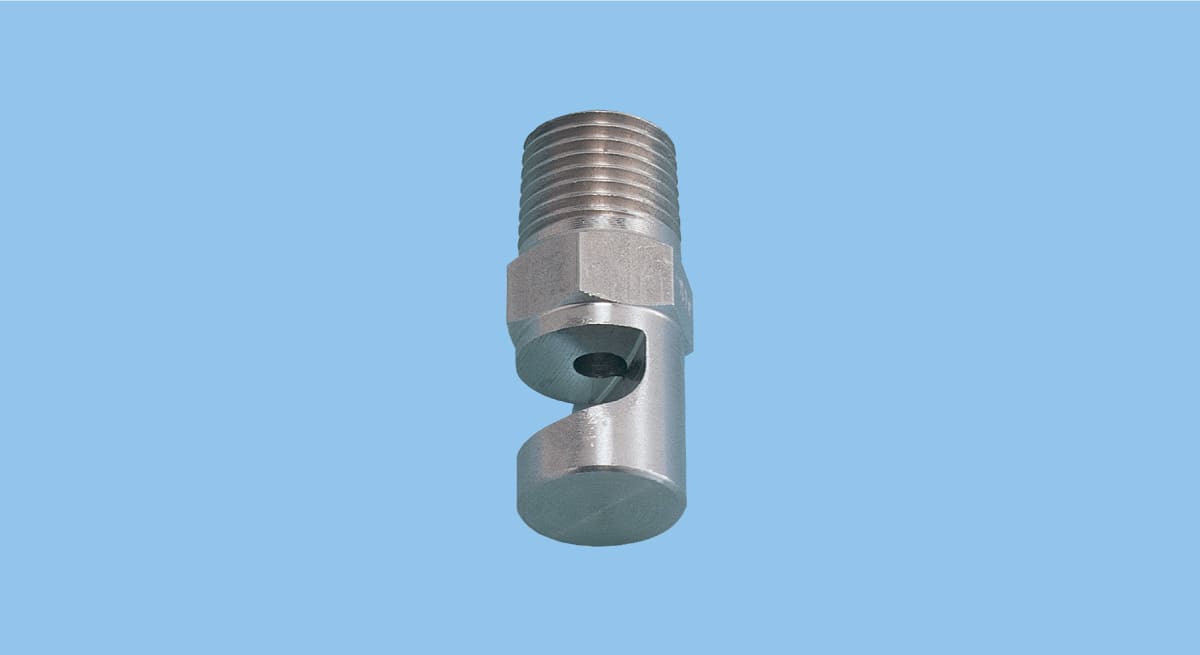

Structure
- One-piece structure, made of metal or plastic.
- Small spray capacity models come with or without a strainer.(No strainers for YYP-PVC)
