Fine Fog, Hollow Cone Spray Nozzles (Suction Type)
BIMK-S
Pneumatic hollow cone spray nozzles with a wide adjustable range of flow rates, producing a fine fog with a mean droplet diameter of 30 μm or less.

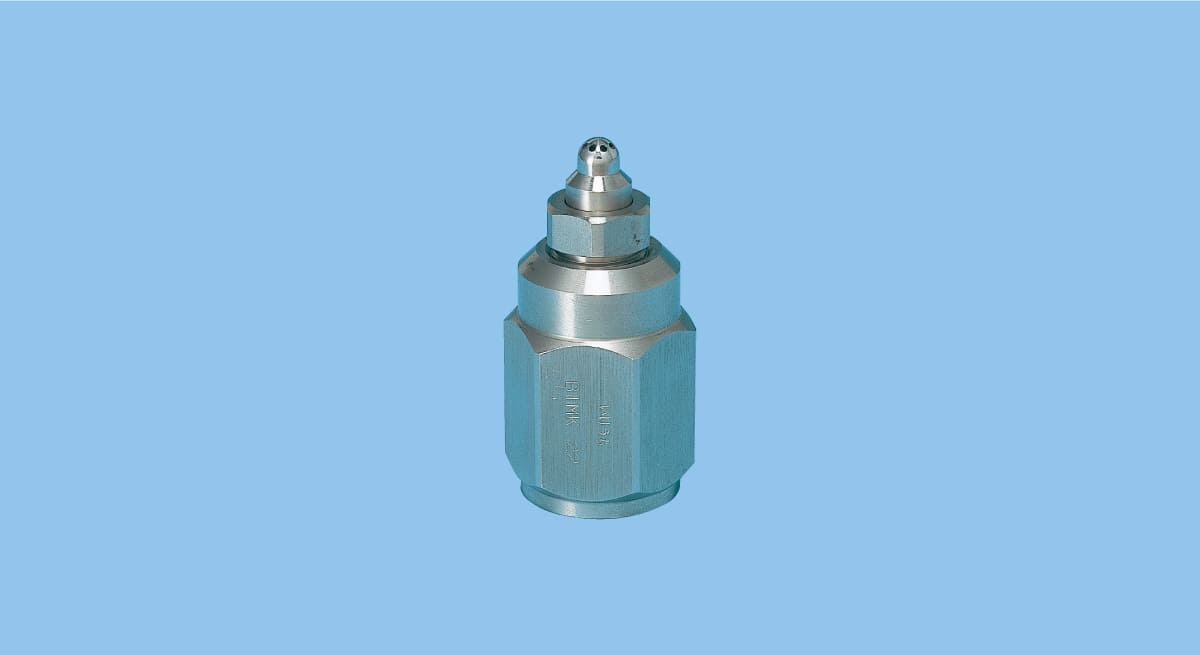

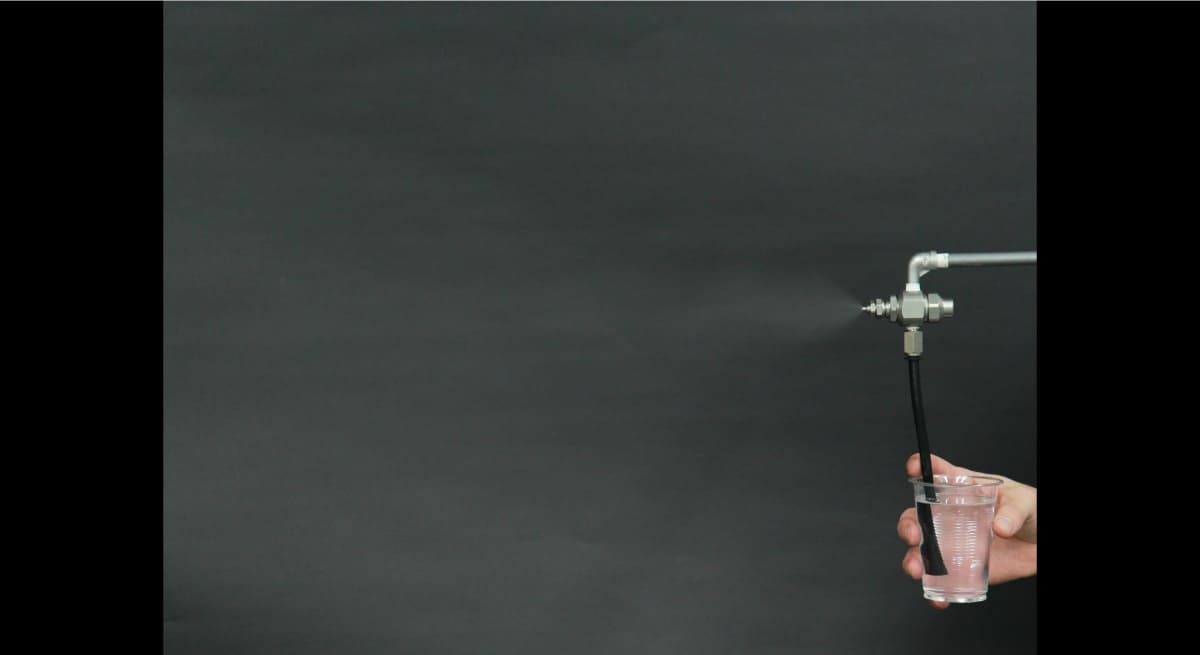

These nozzles are of the suction type, without needing pressurizing equipment for the liquid. Additionally, they can be mounted onto different adaptors depending on the intended purpose of use. (The picture shows the nozzle with a T-type adaptor.)
Specs
| Main Material | S303 |
|---|---|
| Air Supply | Compressed air |
| Liquid Feeding System | Liquid siphon |
| Air-liquid Mixing System | Internal mixing inner air type |
| Spray Droplet Measuring Method | Laser Doppler Method |
| Fog Classification | Fine fog |
| Mean Droplet Diameter | 20–30 μm |
| Spray Capacity (Flow-rate) | 1.4–5.5 L/hr |
| Spray Angle | 60º *1 |
| Spray Width | 120mm *2 |
- Materials: Click here for full material descriptions, including chemical and heat resistance.
- Fog Classification: Based on spray droplet size. Click here for details.
*1) Spray angle measured at compressed air pressure of 0.3 MPa and liquid siphon height of 100 mm.
*2) Measure at spray distance of 100 mm from nozzle and liquid siphon height of 100 mm.
Note: Please refer to the catalog for detailed specifications including spray capacity (flow rate), mean droplet diameter, liquid and air inlet sizes.
Resources for Download
• Hollow cone spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 30 μm or less (*3).
• Liquid siphon feed type (liquid pressure device is not required).
• Spray angle of 60ﾟ.
*3) Measured by Laser Doppler Method.
Applications
- Spraying: Mold release agent, lubricant, deodorant (trash pit, refuse collector, inlet conduit), oil, surface treatment agent, rust preventive, honey, insecticide, aqueous urea, etc.
- Cooling: Dies, gas, glass, steel plates, steel pieces, moldings, automobile bodies, plastic products, etc.
- Moisture control: Paper, gas, ceramics, concrete, etc.
Industries where this nozzle is used
- Steelmaking
- Pollution control
- Electronics
- Paper & pulp
- Printing
- Food
- Automotives
Structure
- Four-part structure: Nozzle tip, core, cap, and adaptor. See the catalog for details of adaptors.
